Product Details:
|
| Model Name: | 1x8 PLC Fiber Splitter | Connector Types: | SC/UPC, SC/APC, LC/UPC, LC/APC |
|---|---|---|---|
| Fiber Modes: | SM MM | Splitting Ratio: | 1x2, 1x4, 1x8, 1x16, 1x32, 1x64,2x2, 2x4, 2x8, 2x16, 2x32, 2x36 |
| Cable Diameter: | 250um | Color: | White And Colorful |
| Fiber Length: | Customized Length1M, 1.5M, 2M, 2.5M, Custom | Fiber Type: | G657 Grade A Optical |
| Port Wavelength: | 1310-1550nm | Package: | Steel Tube, ABS Black Box |
| Highlight: | 900μm 1x8 PLC Splitter,SC APC 1x8 PLC Fiber,900μm 1x8 fiber splitter |
||

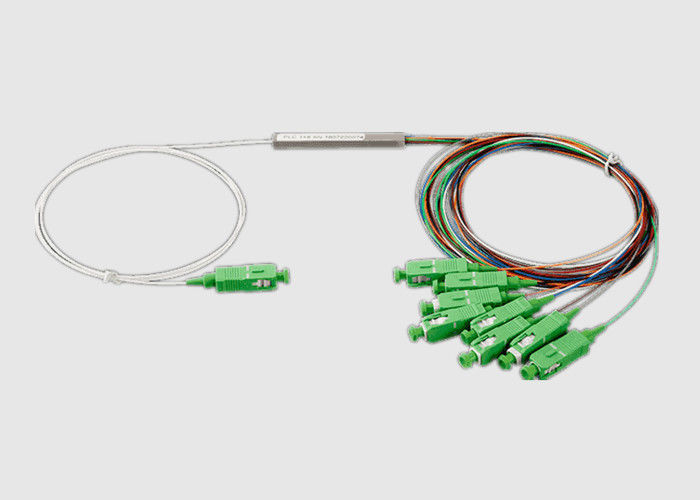

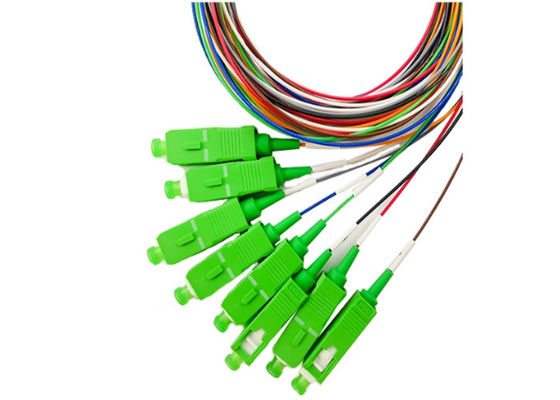

Mini Module Singlemode 900μm SC APC 1x8 PLC Fiber Splitter With LSZH Jacket
Quick Details:
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is built on an accurate alignment system and the mature manufacturing technology. It is fully compliant with Telcordia GR-1209 and GR-1221 reliability qualification requirements.
PLC splitter has stronger fiber protection than bare fiber splitter, which is a miniaturization result of cassette splitter. It's mainly used for various connections and distribution boxes or network cabinets.
Geehe Fiber splitters are available with 1x2, 1x3, 1x4, 1x5, 1x6, 1x8, 1x12, 1x16, 1x18, 1x32 and 1x64 configurations with single-mode or multimode fiber.
PLC Features:
Application&Standard:
Specification& parameters
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 | ||
| Operating Wavelength(nm) | 1260~1650 | ||||||||||
| Port Wavelength Range (nm) | 1310 ±20,1490 ±10 and 1550 ±20 | ||||||||||
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 | ||
| Uniformity (dB) | 0.5 | 0.8 | 1 | 1.2 | 1.8 | 1.2 | 1.5 | 1.8 | 2 | ||
| PDL @ 1310/1550 nm (dB) | ≤0.3 | ||||||||||
| Return Loss@ 1310/1551 nm (dB) | ≤-55 | ||||||||||
| Input Power (mW) | 250max | ||||||||||
| Operating Temperature (℃) | -40~+85℃ | ||||||||||
| Storage Temperature (℃) | -40~+85℃ | ||||||||||
| Fiber Type | Corning G657A1 | ||||||||||
Mini PLC Splitter Package Dimensions:
| WxHxD(mm) | Port | ||||
| 60x4x4 | 1x4 | 1x8 | 2x4 | 2x8 | |
| 60x12x4 | 1x16 | 2x16 | |||
| 80x12x6 | 1x32 | 2x32 | |||
| 100x40x6 | 1x64 | ||||
Ordering Information:
| PLC | AAA | B | CC | D | EE | FF | GG |
| 104=1x4 108=1x8 …… 164=1x64 204=2x4 …… 232=2x32 | 1=900µm loose | 05=0.5m 10=1.0m 15=1.5m 20=2.5m | 1=900µm loose | 05=0.5m 10=1.0m 15=1.5m 20=2.5m | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | |
| Configuration | Input Fiber Type | Input Fiber Length | Output Fiber Length | Output Fiber | Input Connector | Output Connector |
Mini PLC Splitter Package:
