Product Details:
|
| Model Name:: | Pigtail Fiber Optic | Fiber Type: | Singlemode OS2 |
|---|---|---|---|
| Core Diameter: | 8.3 Micron | Cable Jacket: | PVC/LSZH/OFNP |
| Fiber Grade: | G.652.D/G.657.A1 | Cable Length: | 1M, 2M, 3M,20M,100MOr Customized |
| Number Of Fibers: | 1 | Connectors (End 1):: | One ST |
| Minimum Bend Radius: | 30 Mm/10 Mm | Durability: | ＞1000 Times |
| Highlight: | 8.3 Micron Fiber Optic Pigtail,8.3 Micron optical fiber pigtail,8.3 Micron single mode fiber pigtails |
||

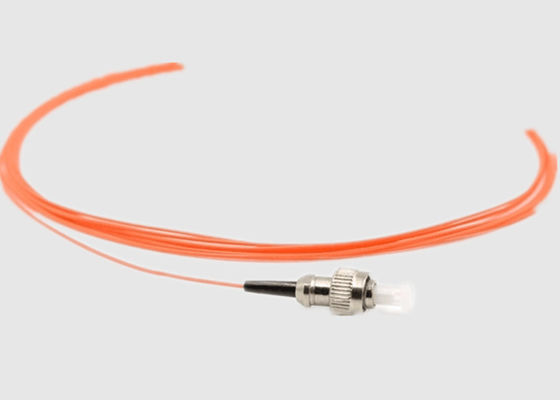

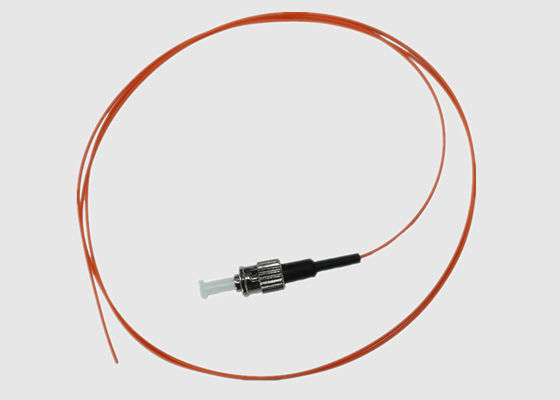

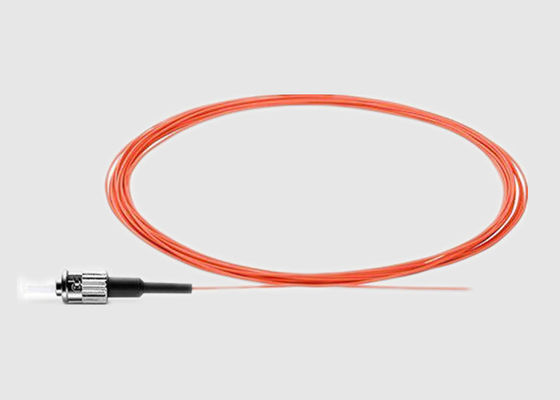

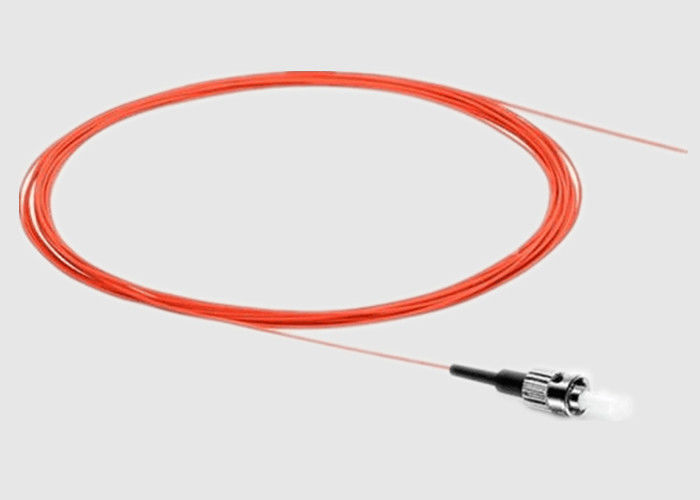

Single Strand 2 Meter ST Single-Mode OS2 1 Meter Pigtail Fiber Optic
Basic Information:
Geehe supply quality ST Single-mode Fiber Optic Pigtails are 3 meters long with a 900um outer jacket. Ideal for fusion splicing.
We also offer custom-made specification pigtail, it is available in simplex presentation with UPC or APC polished. Standard lengths are 1M,2M,3M,4M,5M to 500m.
The cables are available in different configurations:
Pigtail Fiber Optic OS2 9/125
Pigtail Fiber Optic Multimode OM1 62.5 / 125
Pigtail Fiber Optic Multimode OM3 50/125
Pigtail Multimode OM4 Fiber Optic 50/125
Connectors: FC, SC, LC, MU, ST, MT-RJ, etc connector.
Features And Benefits of ST Pigtails:
1) Superior qualified standard PC, APC, UPC, SPC polishing
2) 100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC); ≤0.3 (SPC)
3) φ0.9mm, φ2.0mm, φ3.0mm cable optional
4) Single-mode (9125) or multi-mode (50/125 or 62.5/125) fiber available
5) Good exchangeability and good durability
6) Available in fiber bunch, ribbon fan-out, pigtail available
7) Meets ISO9001, ROHS, and Bell core GR 326-core standard
8) Customized specifications are welcomed
Applications of SC/APC Single Mode Pigtails:
1) CATV, metro test equipment
2) Telecommunication networks
3) Local area networks (LAN)
4) Wide area networks (WAN)
5) Premise installations
6) Video and military active device termination
Specification &Technology Parameters:
| Item | SM (Single-Mode) | MM (Multimode) | |||
| Fiber Cable Type | G625D/G655/G6571A/G657A2 | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| IL(dB) | ≤0.3 | ≤0.1 | |||
| Cable Type | Simplex, Duplex, Fan-Out | ||||
| Connector Type | LC, SC, FC, ST, MU, MPO, MTRJ, D4, DIN, SMA, FDDI, ESCON etc. | ||||
| Cable OD (um) | 0.9/1.6/1.8/2.0/2.4/2.8/3.0 | ||||
| End-face Type | PC | UPC | APC | UPC | UPC |
| Retun Loss(dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| Mating Times | >1000 | ||||
| Anti-tensile Force (N) | >70 | ||||
| Temperature Range (℃) | -40~+80 | ||||
ST Single Pigtails Specification:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3；MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| Interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥45 | ≥50 | ≥60 |
| MM | dB | ≥36(Exclusive APC Connector ) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
