Product Details:
|
| Model Name:: | Fiber Optic Pigtail FC | Connector: | LC/APC Connectors |
|---|---|---|---|
| Fiber Cores: | 4, 6, 8, 12, 24, 48…… | Cable Material: | PVC, OM1, OM2 Or Om3 Can Be Chosen |
| Cable Color: | Yellow | Tensile Strength: | F200N |
| Sleeves Material: | Zirconia Ceramic | Jacketing: | OFNR (Riser) Rated |
| End-face Type: | PC,UPC,APC | Fiber Length: | 1-500M |
| Highlight: | 500M Fiber Optic Pigtail,500M om3 fiber pigtail,500M optical fiber pigtail |
||

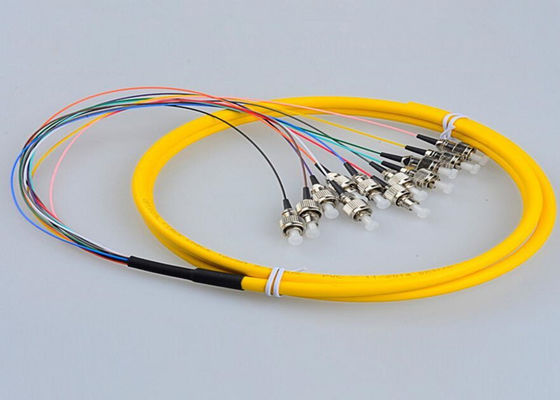

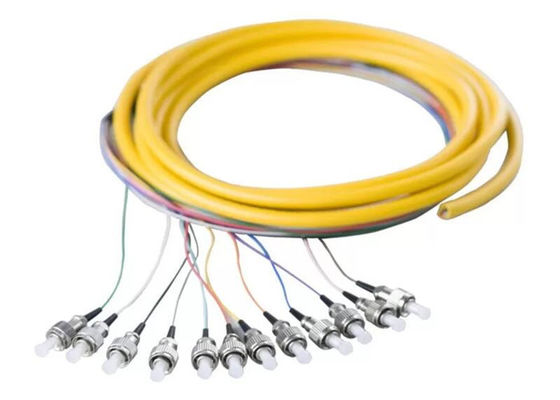

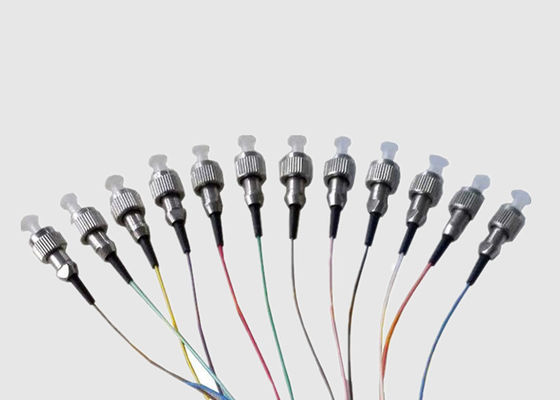

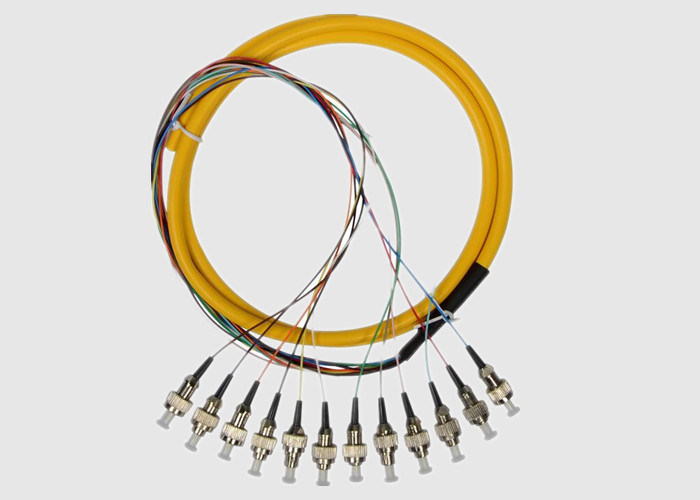

12 Fibers Breakout Fiber Optic Pigtail FC UPC Multimode OM3 LSZH Cable
Brief Introduction:
Single-mode (OS2) 12 Strand Fiber Pigtail. LC/APC 9/125um (Yellow) Fiber Pigtail for 10G/100G fiber links.
Manufactured using OS2 fiber, standard jacket Fiber Pigtail is designed for light to medium-duty indoor applications such as data-center racks and desktop/network connections. Custom configurations available.
12 Cores Fiber pigtail cables provide a fast way to make factory terminations in the field. Factory terminated pigtails can easily be fusion or mechanically spliced to an existing fiber line. Each fiber strand in the kit has a color-coded buffer for easy identification and the colors are industry standard.
Benefit&Features of Fiber Pigtail Connector:
-- Low insertion loss and back reflection loss
-- High credibility and stability
-- High-temperature stability
--Tunable zirconia pigtail ferrule
-- Each packaging unit includes a test chart for each fiber
-- Meets ISO9001, ROHS and Bell core GR 326-core standard
-- 100% inspected for optical characteristics before shipment
-- Boots in a variety of colors
Applications of FC Pigtails:
-- Telecommunication network
-- Computer LAN;
-- Cable television network;
-- Connection of optical cable and light receiver
Specification &Technology Parameters:
| Item | SM (Single-Mode) | MM (Multimode) | |||
| Fiber Cable Type | G625D/G655/G6571A/G657A2 | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| IL(dB) | ≤0.3 | ≤0.1 | |||
| Cable Type | Simplex, Duplex, Fan-Out | ||||
| Connector Type | LC, SC, FC, ST, MU, MPO, MTRJ, D4, DIN, SMA, FDDI, ESCON etc. |
||||
| Cable OD (um) | 0.9/1.6/1.8/2.0/2.4/2.8/3.0 | ||||
| End-face Type | PC | upc | APC | UPC | UPC |
| Retun Loss(dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| Mating Times | >1000 | ||||
| Anti-tensile Force (N) | >70 | ||||
| Temperature Range (℃) | -40~+80 | ||||
FC Conector pecification:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3；MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| Interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥45 | ≥50 | ≥60 |
| MM | dB | ≥36(Exclusive APC Connector ) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
FC Connector Ordering Information:
| OFC | -X | -XX | -XX | -XX | -XX | -XX |
| S: Simplex D: Duplex | FA:FC/APC FC:FC/UPC FP:FC/PC | FA:FC/APC FC:FC/UPC FP:FC/PC | 09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
|
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Fiber Type | Fiber Length |
