Product Details:
|
| Model Name: | 4 In 1 Out Fiber Optic Splitter | Connectors: | No Connectors |
|---|---|---|---|
| Splitting Ratio: | 1x2, 1x4, 1x8, 1x16, 1x32, 1x64,2x2, 2x4, 2x8, 2x16, 2x32, 2x36 | Fiber Type: | 9/125 SMF-28 Or Customer Specified |
| Fiber Color: | White And Colorful | Fiber Length: | Customized Length,1M, 1.5M, 2M, 2.5M, Custom |
| Low Insertion Loss: | ≤ 4.2dB | Port Wavelength: | 1310/1490/1550nm Wavelength For Options |
| Coupling Ration (%): | 1-50% | Bandwidth (nm): | 20nm |
| Highlight: | 1x4 Fiber Optic Cable Splitter,9/125 1x4 plc splitter,9/125 fiber plc splitter |
||

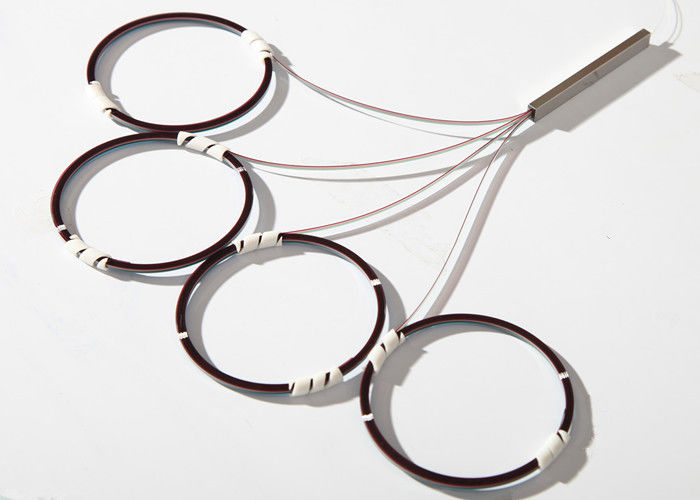

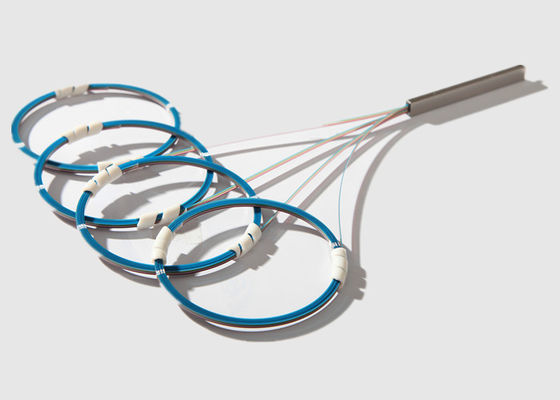

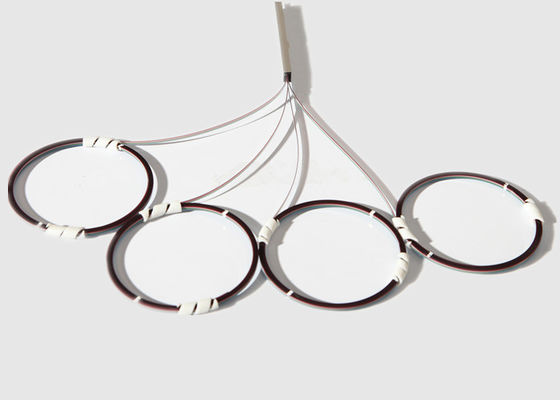

4 in 1 out Steel Tube Single Mode Fused Type No Connector Fiber Optic Splitter
Basic Information Details:
Optical Splitter 4 in 1 out Steel Tube Single Mode Fiber Optic Splitter can be available with SC FC LC ST fiber connectors as per customers' requirements. Singlemode 0.9mm loose tube fiber, 1310/1550nm wavelength or 1310/1490/1550nm, the default split ratio 33/33/33, You can also customize 30/30/40,30/35/35 to fit for indoor/outdoor fiber terminal device.
Fiber Optic PLC splitters are the best choice for a large variety of telecom and sensor technology applications. Based on PLC (Planar Lightwave Circuit) technology, SQS splitters optimally balance performance, size, and cost.
4 In 1 Optic PLC Features& Benefits:
Application&Standard:
Specification& parameters
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 | ||
| Operating Wavelength(nm) | 1260~1650 | ||||||||||
| Port Wavelength Range (nm) | 1310 ±20,1490 ±10 and 1550 ±20 | ||||||||||
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 | ||
| Uniformity (dB) | 0.5 | 0.8 | 1 | 1.2 | 1.8 | 1.2 | 1.5 | 1.8 | 2 | ||
| PDL @ 1310/1550 nm (dB) | ≤0.3 | ||||||||||
| Return Loss@ 1310/1551 nm (dB) | ≤-55 | ||||||||||
| Input Power (mW) | 250max | ||||||||||
| Operating Temperature (℃) | -40~+85℃ | ||||||||||
| Storage Temperature (℃) | -40~+85℃ | ||||||||||
| Fiber Type | Corning G657A1 |
||||||||||
1×32 Splitter Package Dimensions:
| 40x4x4 | 1x4 | 1x8 | 2x4 | 2x8 | |
| 50x7x4 | 1x16 | 2x16 | |||
| 60x7x6 | 1x32 | 2x32 | |||
| 60x12x4 | 1x64 | ||||
Ordering Information:
| PLC | AAA | O | CC | 0 | EE |
| 104=1x4 108=1x8 …… 164=1x64 204=2x4 …… 232=2x32 | 0=250um ribbon | 05=0.5m 10=1.0m 15=1.5m 20=2.5m | 1=900µm loose | 05=0.5m 10=1.0m 15=1.5m 20=2.5m | |
| Configuration | Input Fiber Type | Input Fiber Length | Output Fiber Length | Output Fiber | |
