Product Details:
|
| Model Name: | MTP Trunk Cable | Fiber Core: | 8 Core, 12 Core Or 24 Core |
|---|---|---|---|
| Fiber Diameter: | 3.0MM | Connector Type: | MPO To MPO,MTP |
| Jacket Color: | Beige/Aqua/Green/Yellow,etc | Fiber Jacket Material: | Riser (OFNR), Plenum (OFNP), LSZH |
| Fiber Length: | 1m ,2m, Or OEM | Fiber Type: | Single Mode (OM3, OM4, OM5 Are Optional) |
| Wavelength: | 850nm/1310nm/1550nm | Polish Type: | APC To APC |
| Highlight: | OM4 MTP Trunk Cable,12 Core MTP Trunk Cable,OM4 MTP Fiber Cable |
||

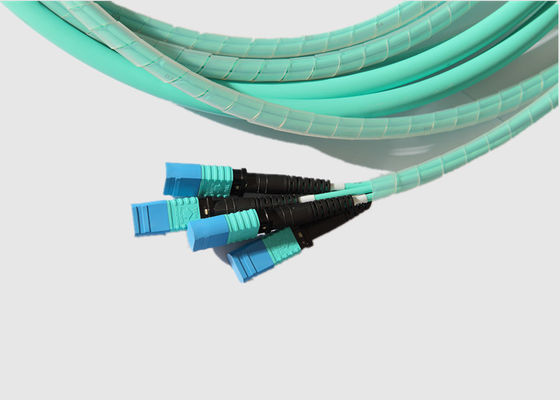

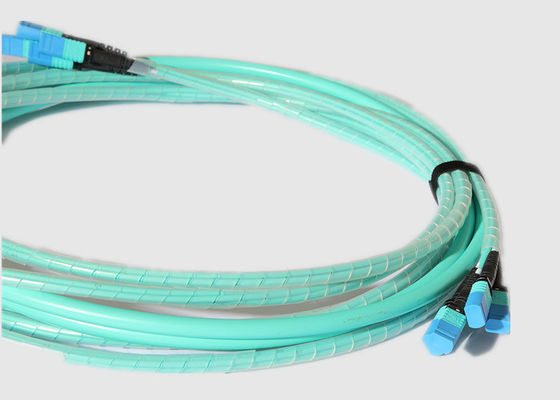

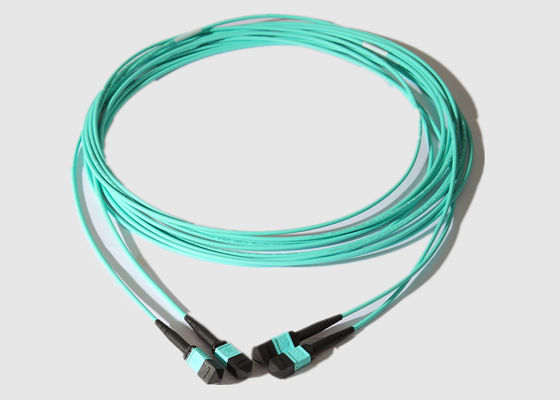

SENKO 12 Core MPO To MPO OFNP Jacket Singlemode OM4 MTP Trunk Cable
Product Description:
MPO Fiber Cable is designed for high-density fiber patching between data center MDFs and IDFs in enterprise installations.

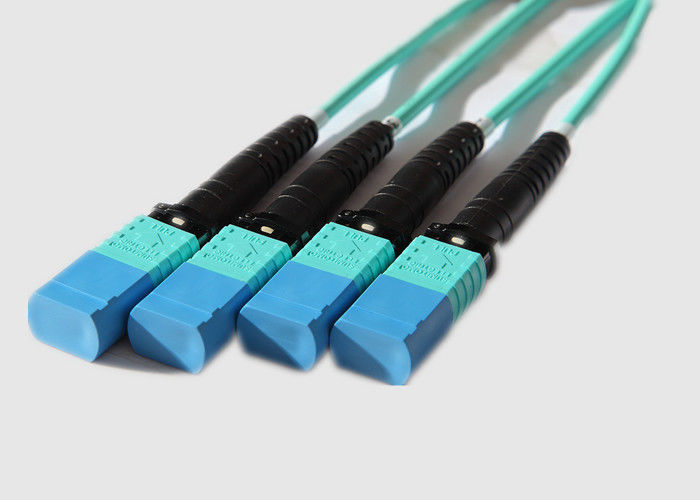

The single-mode om3 cable is colored Aqua for instant identification in a crowded switch or patch panel. Push/pull tab connectors are easily accessible in high-density data center environments and make the plug-and-play cable easy to install and remove with one hand. The high-density trunk cable can directly couple into 16x25G active devices, which complied by TelcordiaGR-326 Core, TIA 604-18 and IEC(61754-7-3) standards.
Main Features& Benefits :
* 100% factory tested with traceable test data
* Highest density physical contact for multi-fiber connectors
* Multiple ribbons stacked inside round jacket
* Ultra-high fiber count cabling solution
* Available in different fiber modes including single-mode(OS2) & multimode (OM1 ~ OM5) with customized length and structure
* Satisfies client's needs in different industries
* 12- and 24-fiber options available
Specifications and Parameter:
Fiber Optic Performance:
| MPO Connector | Standard Sm | Low Loss Sm | Standard Mm | Low Loss Mm | |
| Insertion Loss | Typical(dB) | 0.35 | 0.2 | 0.35 | 0.2 |
| Maximum(dB) | 0.75 | 0.35 | 0.6 | 0.35 | |
| Return Loss (dB) | ≥60 for APC (8 angle polish) |
≥20 for PC | |||
| ≥50 for PC | — | ||||
| Male/Female(dB) | Male:with pins,Female:without pins | ||||
| Tensile Strength (dB) | ≤0.3 ( max 66N ) | ||||
| Vibration (dB) | ≤0.3 ( 10-55Hz ) | ||||
| Thermal Cycle (dB) | ≤0.3 (-40~75℃, 21cycles) | ||||
Geometric parameter of end-face:
| Item | Spec | ||||
| SM | MM | ||||
| RX(mm) | MIN 2000 | ||||
| RY(mm) | MIN 5 | ||||
| Fiber Height (nm) | 1000-3500 | ||||
| Max. diff. Height all (nm) | MAX: 500 | ||||
| Max. diff. Height adj (nm) | MAX: 300 | ||||
| X-Axis Angle ( °) | -0.2 ~ 0.2 | ||||
| Y-Axis Angle ( °) | PC: -0.2 ~ 0.2 APC: 7.8 ~ 8.2 |
-0.2 ~ 0.2 | |||
| Core Dip | N/A | -100 ~ 200 | |||
Ordering Information:
| MPO | -XX | -XX | -XX | -X | -XX | -X | -XX |
| A1: G657A1 A2: G657A2 M3: OM3 M4: OM4 M5: OM5 |
LZ: LSZH NP: OFNP NR: OFNR |
FF: MPO /MPO(female to female ) MF: MPO/MPO (male to a female) MM: MPO/MPO (male to male) |
L: Low loss B: Standard loss |
12:1×12 core 48:4×12 core 72:6×12 core 96:8×12 core |
A: TIA568 through-type B: TIA568 Reverse type C: TIA568 cross-type |
5M to 50M |
|
| Gender Type | Housing color | Ferrule | Connector loss standard | Fiber cores | Polarity | Fiber length |
Application:
* Data Center Interconnect
* Backbone Installations
* Telecommunication Networks
* Broadband/CATV Networks
* LAN/WAN Premise
Geehe's Standards Compliance :
