Product Details:
|
| Model Name: | 1U Fiber Optic Patch Panel | Structure: | Cold Rolled Steel |
|---|---|---|---|
| No.of Fibers/Port: | 12 Cores | Adapter Type: | SC/LC |
| Height: | 1U, 2U, 3U, 4U, 8U | Ports: | 6, 12, 24, 48, 72,96, 144 |
| Mounting Adjustment Range: | 50mm | Material Of Plate: | 1.5mm SPCC (Black Coating) |
| Material Coating: | Powder Coating | 1U Dimensions (Hxwxd): | 48.2×27.8×44mm |
| Highlight: | SC/LC 1U Fiber Optic Patch Panel,SC/LC 1U 12 port fiber patch panel |
||

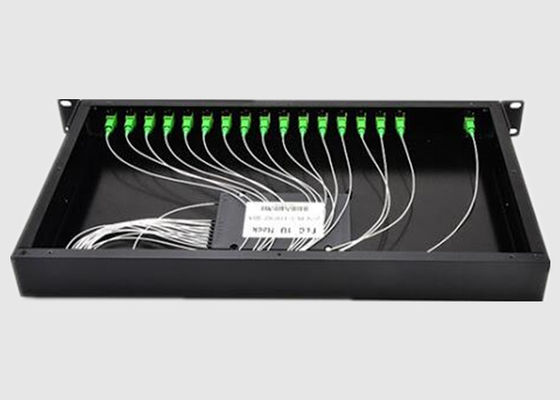

12 Fibers SC/APC PLC Splitter Wall Mount Rack 1U Fiber Optic Patch Panel
Basic Information:

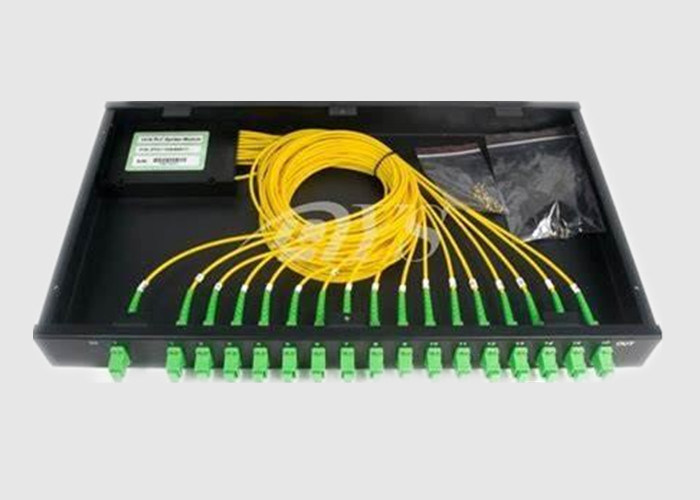

The SC/LC 1U Patch Panel is suitable to 19 Inch Racks or cabinets, the inside box with 1×12 PLC ABS Splitters.
The panel can also be preloaded completely with the required adapter and simple management kit. The sliding system in its basic form can be supplied with or without adapters. The tray is locked in place and has two plastic catches for simple installation. When fully extended the tray is designed to lower at 45 degrees or move the tray to the side and locks at 10 degrees only.
Confirms to every type of connectors (ST, SC, FC, LC, MTRJ, E2000, etc.)
Patch Panel Wall Mount Benefit& Feature:
Patch Panel Wall Mount Application:
Telecommunication networks
FTTH
LAN, WAN, CATV networks
Active device termination
EFDA/WDM System
Specificaiton&Technology Parameters :
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 | ||
| Operating Wavelength(nm) | SDWC:1310&1550；STWC:1310,1490&1550 | ||||||||||
| Port Wavelength Range(nm) | 1310 ±40,1490 ±10 and 1550 ±40 | ||||||||||
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 | ||
| Uniformity (dB) | 0.6 | 1 | 1.6 | 2 | 1.8 | 0.8 | 1.2 | 1.8 | 2.2 | ||
| PDL@ 1310/1550 nm (dB) | ≤0.3 | ||||||||||
| Input Power (mW) | 250max | ||||||||||
| Operating Temperature (℃) | -40~+85℃ | ||||||||||
| Storage Temperature (℃) | -40~+85℃ | ||||||||||
| Fiber Type | Corning G657A1, 900μm, 2mm, 3mm Loose Tube | ||||||||||
| Dimensions(L×W×H) (mm) | 100×80×10,141×115×18,On request | ||||||||||
* The above specification exclusive connector
19 Inch Rack Specification:
| 19 Inch Rack | LGX | ||||||||||
| Configuration | 1U | 2U | 1U | 2U | |||||||
| Packing Dimensions(mm) | 482.6×278×44 | 482.6×278×88 | 129×125×29 | 129×125×58 | |||||||
| Installation Dimensions (mm) | 462.7×11.0(4-Φ6) | 462.7×27.5(6-Φ6) | 118(2-Φ6) | 118×29.2(2-Φ7) | |||||||
Ordering Information:
| WBC- | X- | X2- | 35- | XX- | X- | XX- | XX- | X | ||
| P: Premium A: Grade A X: Follow Customer's Requirements |
13:1x3 14:1X4 … 232:2 X32 |
35:1310/1550nm | 01: 01:99 02: 02:98 …… 50: 50:50 |
1:1 m x: Follow Customer's Requirements |
25:250μM Fiber 09:900μM Loose Fiber |
SC: SC/UPC SA: SC/APC 00:no connect |
D:D 1U: J1 2U: J2 |
|||
| Grade | Port Number | Operation Wavelength | Coupling Ratio | Fiber Length | Fiber Type | Connector Type | Dimension | |||
Wuhan Geehe Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) High-quality Wire Rod
Excellent PVC wire, good strength, and tenacity, long lifespan
