Product Details:
|
| Model Name: | 1x2 Fiber Optic Coupler | Optical Coupler Configuration Type: 1x2 Operating Wavelength: | 1310nm,1490nm,1550 Nm |
|---|---|---|---|
| Split Ratio: | 50/50,40/60,30/70,20/80,10/90,5/95 Etc | Other Types: | Singlewindow, Dualwindow,Triplewindow |
| Function: | Fiber Distribution | Available Pre-terminated: | LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, And ST/UPC |
| Polarization Alignment: | Slow Axis Or Fast Axis | Fiber Type: | PM Fiber Cable |
| Package Dimension: | Ø4x 40;Ø4x 54;98x16x9 Mm | Configuration Type: | 1×2 With LC Connector |
| Highlight: | 40/60 1x2 LC To LC fiber coupler,1310nm LC To LC fiber coupler,1310nm multimode fiber coupler |
||

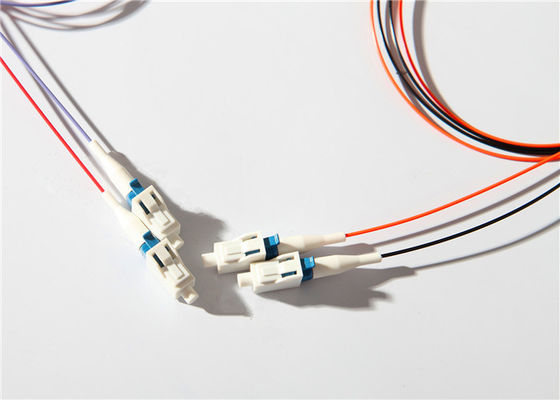

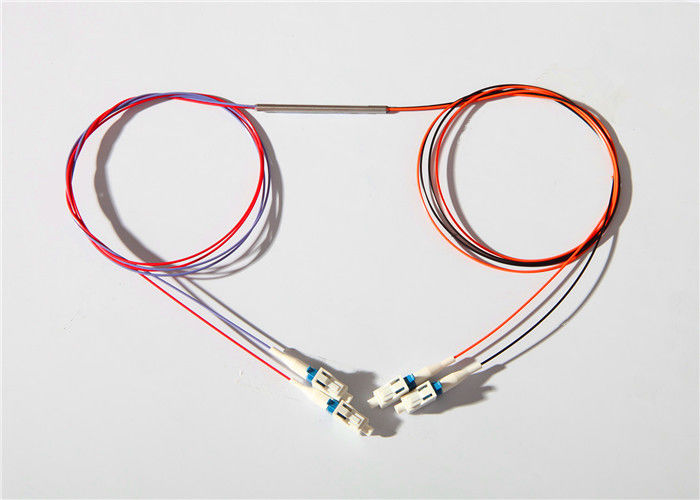

40:60 Split 3 Meter Pigtails 1x2/2x2 Multimode Fiber Optic LC To LC Coupler
Optic Coupler Brief Introduces:
A Fiber Coupler is an Optical Fiber device with one or more input fibers and one or several output fibers. Light from an input fiber can appear at one or more outputs, with the power distribution potentially depending on the wavelength and polarization. Multimode Splitters with a defined split ratio from one or two input fibers to 2 output.
Such couplers can be fabricated in different ways, for example by thermally fusing fibers so that their cores get into intimate contact, the fiber connectors also can be available: LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, ST/UPC.
1× 2,2×2 FIber Optic Coupler Features& Benefits:
Dual Window Wide Brand Coupler Specification and parameter:
| Parameter | P | A | |||
| Operating Wavelength(nm) | 1310&1550 | ||||
| Operating Bandwidth(nm) | 1310 ± 40nm,1550 ± 40nm | ||||
| Fiber Type(dB) | Corning G652D OR Corning G657 A1 | ||||
| Insertion Loss (dB) |
50/50 | ≤3.3 | ≤3.5 | ||
| 40/60 | 3.70~4.40≤2.5 | 3.50~4.60/≤2.8 | |||
| 30/70 | 5.00~5.60/≤1.8 | 4.90~6.10/≤2.1 | |||
| 20/80 | 6.80~7.40/≤1.2 | 6.50~7.70/≤1.2 | |||
| 10/90 | 9.60~10.50/≤0.6 | 8.80~11.40/≤0.8 | |||
| 5/95 | 12.70~13.50 /≤0.4 | 12.05~14.05/≤0.5 | |||
| 3/97 | 14.60~15.50/≤0.3 | 13.60~16.05/≤0.4 | |||
| 2/98 | 16.60~17.90/≤0.25 | 15.60~18.20/≤0.3 | |||
| 1/99 | 19.20~20.80/≤0.2 | 18.80~21.40/≤0.25 | |||
| PDL(dB) | ≤0.1 | ≤0.15 | |||
| Return Loss(dB) | ≥50 | ≥45 | |||
| Directivity(dB) | ≥55 | ||||
| Operating Temperature(℃) | -40 ~ +85 | ||||
* The above specification is without connector
* Other specifications can be made on customer request
Ordering Information:
| WBC- | X- | X2- | 35- | XX- | X- | XX- | XX- | X |
| P: Premium A: Grade A X: Customization |
12:1x2 22:2x2 |
35:1310/1550nm | 01: 01:99 02: 02:98 …… 50: 50:50 |
1:1 m x: Customization |
25:250μM Fiber 09:900μM loose fiber | SC: SC/UPC SA: SC/APC 00: no connector |
A: A B: B C:C |
|
| Grade | Port number | Operating wavelength | Coupling ratio | Fiber length | Fiber type | Connect type | Dimension |
EX:WBC-P-12-35-50-1-09-0-B
1 ×2 FIber Optic Coupler Application:
FTTx Systems
LAN,WAN and Metro Networks
Analog/Digital Passive Optical Networks
Long-haul telecommunication
Mini sizes transmitter/receiver module
