Product Details:
|
| Model Name: | Fiber Optic Rotating Coupler | Operating Wavelength: | 1310nm,1490nm,1550 Nm |
|---|---|---|---|
| Split Ratio: | 50/50,40/60,30/70,20/80,10/90,5/95 Etc | Other Types: | Singlewindow, Dualwindow,Triplewindow |
| Device Type: | Fused Coupler | Available Pre-terminated: | LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, And ST/UPC |
| Polarization Alignment: | Slow Axis Or Fast Axis | Fiber Type: | PM Fiber Cable 62.5/125um |
| Fiber Length: | 1m,1.5m, Or Customization | Configuration Type: | 1×2 With LC Connector |
| Highlight: | 125um Fiber Optic Cable Coupler,125um 2x2 fiber optic coupler,2x2 multimode fiber coupler |
||

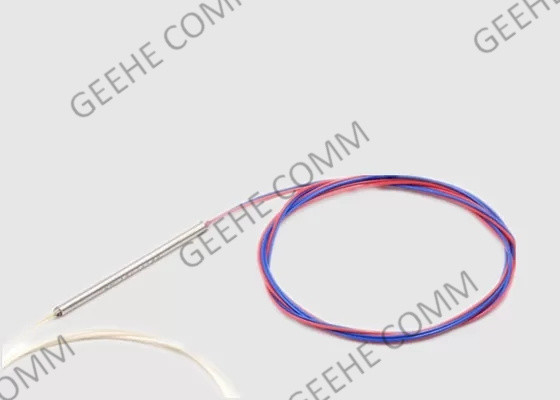

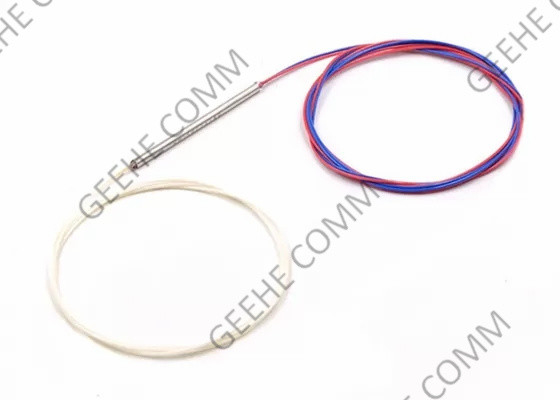

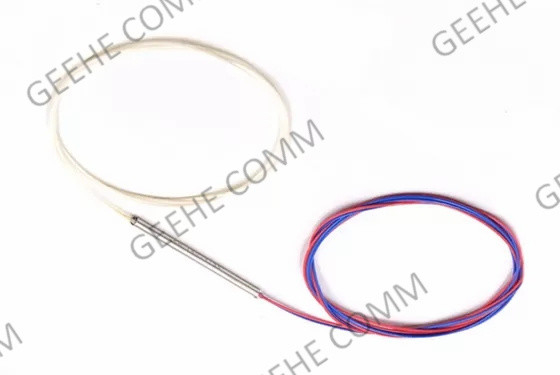

1×2/2×2 Multi-mode 62.5/125um Broadband Fiber Optic Rotating Coupler
Optic Coupler Brief Introduces:
A Fiber Coupler is an Optical Fiber device with one or more input fibers and one or several output fibers, with low insertion loss, low polarization dependence, and excellent environmental stability.
Accurate coupling ratio's from 50/50 to 1/99 are available with very tight uniformity. The multi-mode Standard Coupler components perform power splitting and monitoring functions in all kinds of the optical communication systems.
Other wavelength-sensitive couplers are used as multiplexers in wavelength division multiplexing (WDM) telecom systems to combine several input channels with different wavelengths, or to separate channels.
1× 2,2×2 FIber Optic Coupler Features& Benefits:
Dual Window Wide Brand Coupler Specification and parameter:
| Parameter | P | A | |||
| Operating Wavelength(nm) | 1310&1550 | ||||
| Operating Bandwidth(nm) | 1310 ± 40nm,1550 ± 40nm | ||||
| Fiber Type(dB) | Corning G652D OR Corning G657 A1 | ||||
| Insertion Loss (dB) |
50/50 | ≤3.3 | ≤3.5 | ||
| 40/60 | 3.70~4.40≤2.5 | 3.50~4.60/≤2.8 | |||
| 30/70 | 5.00~5.60/≤1.8 | 4.90~6.10/≤2.1 | |||
| 20/80 | 6.80~7.40/≤1.2 | 6.50~7.70/≤1.2 | |||
| 10/90 | 9.60~10.50/≤0.6 | 8.80~11.40/≤0.8 | |||
| 5/95 | 12.70~13.50 /≤0.4 | 12.05~14.05/≤0.5 | |||
| 3/97 | 14.60~15.50/≤0.3 | 13.60~16.05/≤0.4 | |||
| 2/98 | 16.60~17.90/≤0.25 | 15.60~18.20/≤0.3 | |||
| 1/99 | 19.20~20.80/≤0.2 | 18.80~21.40/≤0.25 | |||
| PDL(dB) | ≤0.1 | ≤0.15 | |||
| Return Loss(dB) | ≥50 | ≥45 | |||
| Directivity(dB) | ≥55 | ||||
| Operating Temperature(℃) | -40 ~ +85 | ||||
* The above specification is without connector
* Other specifications can be made on customer request
Ordering Information:
| WBC- | X- | X2- | 35- | XX- | X- | XX- | XX- | X |
| P: Premium A: Grade A X: Customization |
12:1x2 22:2x2 |
35:1310/1550nm | 01: 01:99 02: 02:98 …… 50: 50:50 |
1:1 m x: Customization |
25:250μM Fiber 09:900μM loose fiber | SC: SC/UPC SA: SC/APC 00: no connector |
A: A B: B C:C |
|
| Grade | Port number | Operating wavelength | Coupling ratio | Fiber length | Fiber type | Connect type | Dimension |
EX:WBC-P-12-35-50-1-09-0-B
1 ×2 FIber Optic Coupler Application:
Wuhan Geehe Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Fast Delivery
With skilled and stable workers, all the order turnover is fast than the competitors
5) Factory Audit
We cooperate with famous brands and Japanese customers, with 15 years of factory inspection experience and be familiar with the whole inspect process by SGS
6) Oem New Product
We have R&D team service for high- level Oem service, also can together with the customer to develop new products.
