Product Details:
|

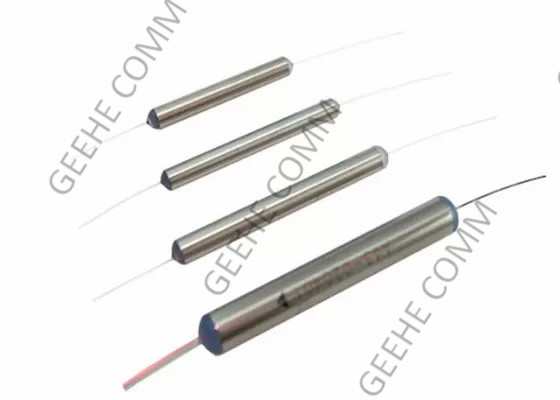

| Model Name: | Fiber Optic Tap Coupler | Operating Wavelength Range: | 1310nm,1490nm,1550 Nm |
|---|---|---|---|
| Split Ratio: | 50/50,40/60,30/70,20/80,10/90,5/95 Etc | Other Types: | Singlewindow, Dualwindow,Triplewindow |
| Device Type: | Fused Coupler | Available Pre-terminated: | MU/UPC,LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, And ST/UPC |
| Polarization Alignment: | Slow Axis Or Fast Axis | Fiber Type: | PM Fiber Cable |
| Package Dimension: | Ø4x 40;Ø4x 54;98x16x9 Mm | Configuration Type: | 1×2 With MU Connector |
| Highlight: | 50/125 Fiber Optic Cable Coupler,50/125 1x2 fiber coupler,1x2 optical fiber coupler |
||

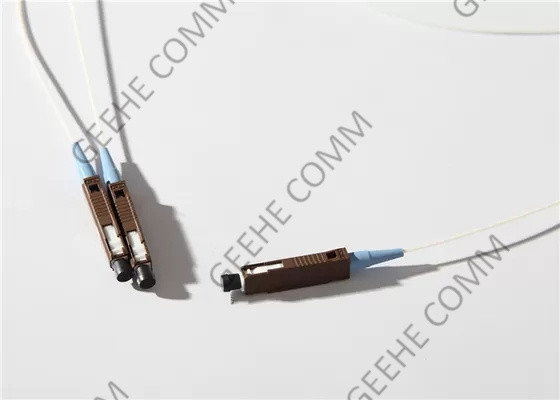

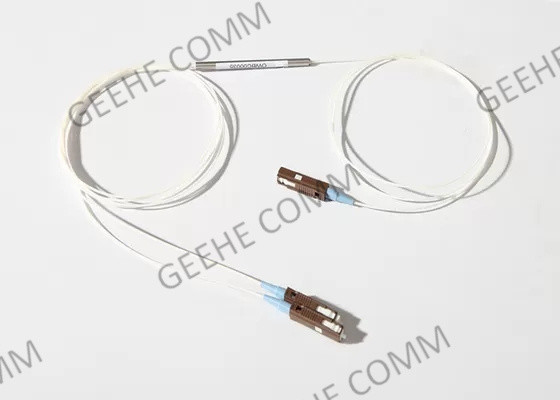

1 ×2 Multi Mode 50/125 MU To Mu Connector Fiber Optic Coupler Splitters
Optic Coupler Brief Introduces:
Built by Geehe coupling technique, TWC operating bandwidth is expanding to 1310nm, 1490nm, and 1550nm three communication windows.
Tapered (FBT) splitters are available with 1x2, 1x3, 1x4, 1x5, 1x6, 1x8, 1x12, 1x16, 1x18, 1x20 and 1x24 configurations with single-mode or multimode fiber and we offer all type connectors of pre-connectorized like SC, FC, ST, LC, you can choose a standard size or do high-level OEM.
The 1x2 Mu Connector Multi-Mode Window Loose Tube Fiber Splitter can splitter the optical signals into 2 parts, and the coupling ratio can be customized, the mu connector is smaller and high precision and widely use for DWDM.
FIber Optic Coupler Features& Benefits:
Three Window Wide Brand Coupler Specification and parameter:
| Parameter | P | A | |||
| Operating Wavelength(nm) | 1310&1490&1550 | ||||
| Operating bandwidth(nm) | 1310 ± 40nm,1490± 40nm,1550 ± 40nm | ||||
| Fiber Type(dB) | Corning G652D OR Corning G657 A1 | ||||
| Insertion Loss (dB) |
50:50 | ≤3.4 | ≤3.6 | ||
| 30:70 | 5.00~5.60/≤1.8 | 4.90~6.10/≤2.1 | |||
| 10:90 | 9.60~10.50/≤0.6 | 8.80~11.40/≤0.8 | |||
| 5:95 | 12.70~13.50 /≤0.4 | 12.05~14.05/≤0.5 | |||
| 1:99 | 19.20~20.80/≤0.2 | 18.80~21.40/≤0.25 | |||
| PDL(dB) | ≤0.1 | ≤0.1 | |||
| Return Loss(dB) | ≥50 | ≥45 | |||
| Directivity(dB) | ≥55 | ||||
| Operating Temperature(℃) | -40 ~ +85 | ||||
Ordering Information:
| WBC- | X- | X2- | 345- | XX- | X- | XX- | XX- | X |
| P: Premium A: Grade A X: on request |
12:1x2 22:2x2 |
1310&1490&1550nm | 01: 01:99 05: 05:95 …… 50: 50:50 |
1:1 m x: on request |
25:250μM Fiber 09:900μM Loose Fiber | SC: SC/UPC SA: SC/APC 00:no connector |
A: A B: B C:C |
|
| Grade | Port Number | Operation Wavelength | Coupling Ratio | Fiber Length | Fiber Type | Connector Type | Dimension |
FBT Coupler Compare With PLC Splitter:
| Parameters | FBT Splitter | PLC Splitter |
| Fabrication Method | Two or more pieces of optical fibers are bound together and put on a fused-taper fiber device. The fibers are then drawn out according to the output branch and ratio with one fiber being singled out as the input. | Consists of one optical chip and several optical arrays depending on the output ratio. The optical arrays are coupled on both ends of the chip. |
| Operating Wavelength | 1310nm and lSSOnm (standard); 850nm (custom) | 1260nm -1650nm (full wavelength) |
| Application | HFC (network of fiber and coaxial cable for CATV); All FTIH applications. | Same |
| Performance | Up to 1:20– reliable. For larger splits reliability can become an issue. | Good for all splits. High level of reliability and stability. |
| Input/Output | One or two inputs with an output maximum of 32 fibers. | One or two inputs with an output maximum of 64 fibers. |
| Package | Steel Tube (used mainly in equipment); ABS Black Module (Conventional) | Same |
| Input/Output Cable | Bare optical fiber; 0.9mm, 2.0mm, and 3.0mm | Same |
| Package Size | 1×2 to 1×8 smaller size than PLC | More than 1×8,PLC Splitter size is smaller |
| Stability and Reliability | Stability is more better | High stability not as FBT Splitter |
FIber Optic Coupler Application:
FTTx Systems
LAN,WAN and Metro Networks
Analog/Digital Passive Optical Networks
Long-haul telecommunication
Mini sizes transmitter/receiver module
