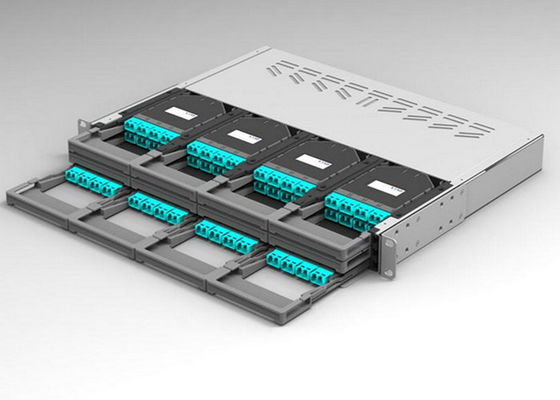

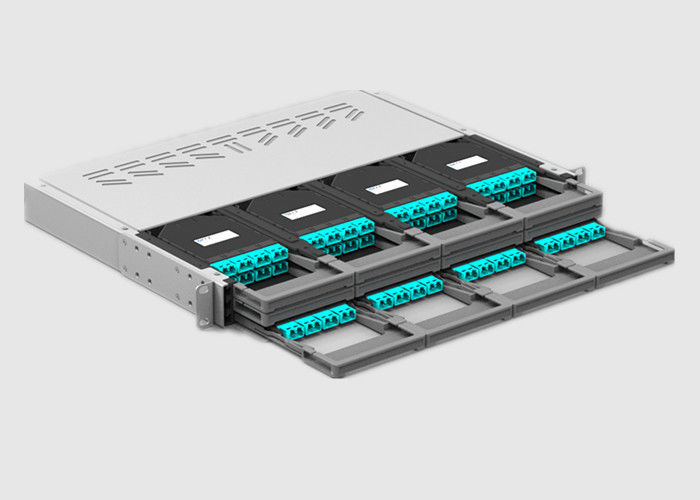

16F MPO-LC HD Patch Panel

16F MPO-LC HD Patch Panel
16F MPO-LC HD Patch Panel 16F MPO-LC HD Patch Panel

Large Image :  16F MPO-LC HD Patch Panel

Product Details:
Place of Origin: China Mainland
Brand Name: Geehe (OEM&ODM)
Certification: ISO9001:2015,ISO14001,RoHS
Model Number: GH-HD-Cassette-002
Payment & Shipping Terms:
Minimum Order Quantity: 200 pcs
Price: Negotiation
Packaging Details: Inside box for each Cassette with Pressure defense packaging,thicker outer carton
Delivery Time: Within 5-7 working days after confirm order
Payment Terms: T/T, L/C, D/A, D/P, MoneyGram
Supply Ability: 500 Pcs/ Day

16F MPO-LC HD Patch Panel

Description
Model Name: HD 16F MPO-LC Module Material: Cold-rolled Steel Sheet
Cassettes: MPO Cassettes Max Capacity: 96 Cores
Adapter: LC Adapter, MPO Adapters Colors: Black
Patch Cord Quantity: 1x24fo, 2x12Fo ,1x12 Fo Panal Height: 1U
Module Qty: 3 Slots 4 Slots 5 Slots 12 Slots Application: 10G 40G 100G Data Center
Highlight:

MPO-LC HD Patch Panel

,

16F HD Patch Panel

,

16F intelligent patch panel

 1U 400G High-Density 16F MPO-LC Module For 19 Rack And Cabinet





1. Product Description:



16F MPO-LC modules are used to break out the 16F MPO Connectors terminated on trunk cables into LC connectors to facilitate patching into the SFP transceiver of the system equipment ports.


The module is used together with 1HU, 2HU, and 4HU HD-Fiber Distribution Frame.


The LC adaptor panel in the front of the module box is used for connecting the equipment or between the module box, and the MPO adapter at the rear is used for connecting MPO pre-connected trunk cables.





2. HD Module Features & Benefits:

  • The front panel of the module box is equipped with 8 duplex LC adapters, and the rear panel is equipped with 2 MPO adapter ports which can be equipped with 1 16F MPO adapter or 2 8F MPO adapters.
  • The module box can be installed or removed from the front or rear of the HD-Fiber Patch Panel.
  • The density with LC interface: 144F for 1HU; 288F for 2HU; 576F for 4HU.
  • 100% pre-termination to ensure the low insertion loss for demanding high-speed networks

16F MPO-LC HD Patch Panel 0



3. HD Fiber Opric Panel Applications:

  • 100G/40G network
  • Data Center
  • High Density Fiber Interconnection

16F MPO-LC HD Patch Panel 1



4. Specification and Technology Parameter



Product HD 1U Fiber patch panel
Material Cold-rolled steel sheet
Cassettes 4 pcs MPO Cassettes
Max Capacity 96 Cores
Adapter LC adapter, MPO adapters
Colors Black
patch cord Qty 1x24fo, 2x12Fo ,1x12 Fo
Fiber Mode G657A1, OM1,Om2,Om3,Om4
Panal Height 1U





5. More HD Fiber Optic Patch Panels:



16F MPO-LC HD Patch Panel 2



6. Wuhan Geehe Comm Service:



1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity


2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space


3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards


4) High-quality Wire Rod
Excellent PVC wire, good strength, and tenacity, long lifespan



16F MPO-LC HD Patch Panel 316F MPO-LC HD Patch Panel 4
