Product Details:
|
| Model Name: | Fast ST Fiber Optic Coupler | Connector Type: | SC/FC/LC/ST/MTRJ/MU/MPO Ect |
|---|---|---|---|
| Ferrule End-face: | PC,UPC,APC | Fiber Type: | Singlemode, Multimode |
| Color: | Blue,Green,Grey,Aqua,Purple Etc | Cable Applicable: | 3.1 X 2.0 Mm Drop Cable |
| Installation Time: | Within 60s ( No Fiber Cut ) | Sleeve: | Caremic/Phosphor Bronze |
| Highlight: | 3.0mm ST Fiber Optic Connector,3.0mm fiber optic st connector,3.0mm ftth fast connector |
||

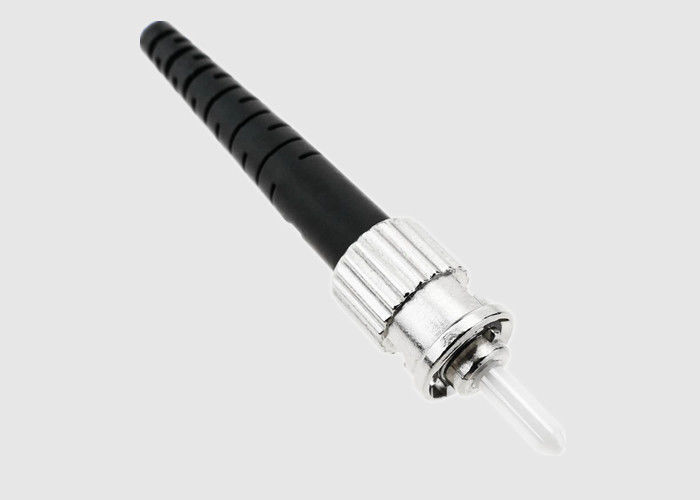

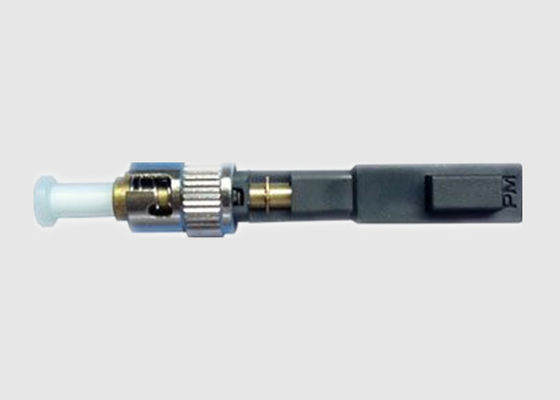

New Arrive PC Single Mode 2.0mm 3.0mm Fast ST Fiber Optic Coupler
Brief Introduction :
ST stands for straight tip, a high-performance fiber-optic connector with round ceramic ferrules and bayonet locking features. ST connectors are more common than SC connectors.
The ST connector is designed to work with the thread coupling mechanism. It come with a pre-polished ferrule that is made with zirconia material. It can be terminated quickly and economically in field or factory setting.
Fiber Optic connectors Features and Advantages:
Application of FC Connector :
Technology Specification& Parameters:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3；MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| Interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥50 | ≥50 | ≥50 |
| MM | dB | ≥36(Exclusive APC Connector) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
Order Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
SA:ST/APC SC:ST/UPC SP:ST/PC | SA:ST/APC SC:ST/UPC SP:ST/PC | 09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
|
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Fiber Type | Fiber Length |
