Product Details:
|
| Model Name: | Fast ST Fiber Optic Coupler | Connector Type: | SC/FC/LC/ST/MTRJ/MU/MPO Ect |
|---|---|---|---|
| Ferrule End-face: | PC,UPC,APC | Fiber Type: | Singlemode, Multimode |
| Color: | Blue,Green,Grey,Aqua,Purple Etc | Cable Applicable: | 3.1 X 2.0mm Drop Cable |
| Installation Time: | Within 60s ( No Fiber Cut ) | Sleeve: | Caremic/Phosphor Bronze |
| Highlight: | 2.0mm FC Fiber Optic Connector,2.0mm ftth fast connector,2.0mm fiber optic cable connectors |
||
Free Test Round Type Field Installation FC Fast Optic Connector For FTTH
Brief Introduction :
FAST-FC FC Fast Connector Fiber Optic use FC/UPC Fast Connector for Singlemode Fiber Easy to use, require only simple fiber tools
FC Fast Connector is used for field-installable optical fiber connector. It can provide Open flow and Precast type of products,whose optical and mechanical specification meets the standard optical fiber connector. it is designed for high quality and high efficiency for installation. the structure of crimping position is a unique design, and need not gluing, polishing neither any consumables. Adapted fiber pre-installed structure, and convenient for field installation.
Fiber Optic connectors Features and Advantages:
Fiber aligned in v-groove through the ceramic ferrule
Precision mechanical alignment insures low insertion loss
Low-volatile reliable matching liquid preserved by side cover
Unique bell-shaped boot maintains the mini fiber bend radius
Pre-installed, on-site assembly without end face grinding and consideration
Easy and fast installation, 30 seconds to learn install, 90 seconds to operate in the field
Application of FC Connector :
Technology Specification& Parameters:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3；MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| Interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥50 | ≥50 | ≥50 |
| MM | dB | ≥36(Exclusive APC Connector) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
Order Information:
| OFC | -X | -XX | -XX | -XX | -X | -X |
| S: Simplex D: Duplex |
SA:ST/APC SC:ST/UPC SP:ST/PC | SA:ST/APC SC:ST/UPC SP:ST/PC | 09:0.9mm 20:2.0mm 30:3.0mm | 0:G652D 1:G657A 2:50/125 3:62.5/125 4:others | 0.5:0.5m 1.0:1.5m 10:10.0m |
|
| Fiber Mode | Connector Type | Connector Type | Cable Diameter | Fiber Type | Fiber Length |

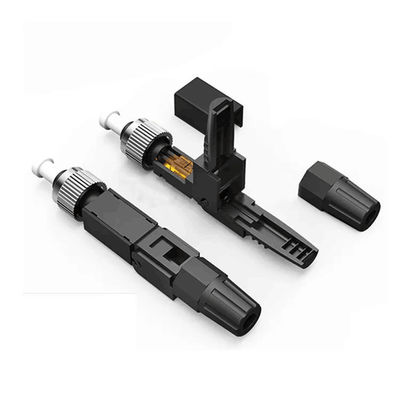

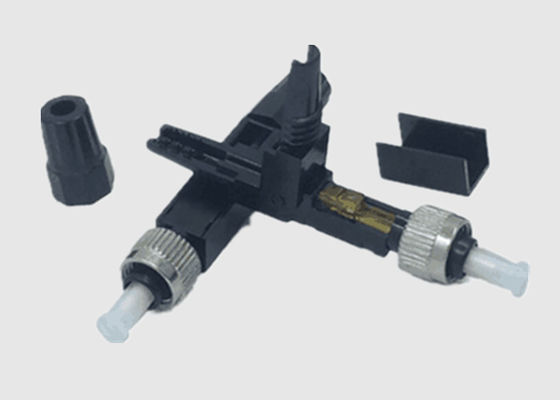

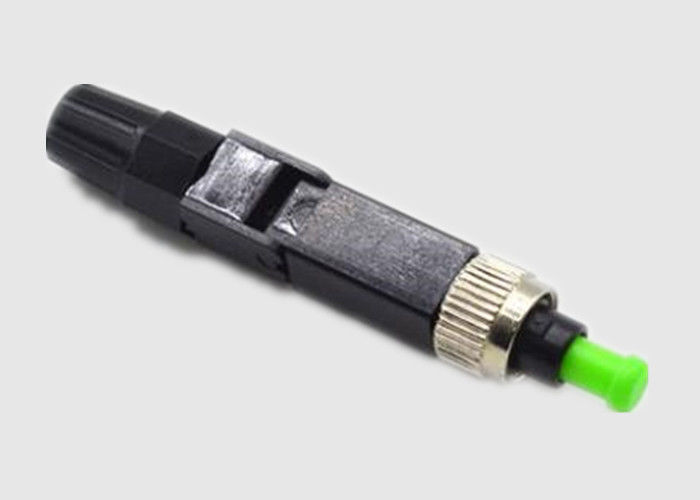

More pictures of fc fibre optic connector :
