Product Details:
|
| Module Name: | Wavelength-Division Multiplexing | Port Type: | 1 X N |
|---|---|---|---|
| Fiber Type: | PM Panda Fiber | Jacket: | 250um Or 900nm Or Others |
| Connectors: | With Connector Or Without Connector Optional | Pigtail Length: | 1M,1.5M Or Customized |
| Common Pass Port: | PM980 Or PM1550 | Option Channel: | 4, 8 , 16, 18 Channels |
| Operating Wavelength: | 980~1620 Nm | Package: | Mini Package, Module Package, Frame Package |
| Highlight: | 1500nm Fiber Optic WDM,1500nm wave division multiplexer,1500nm wdm multiplexer |
||

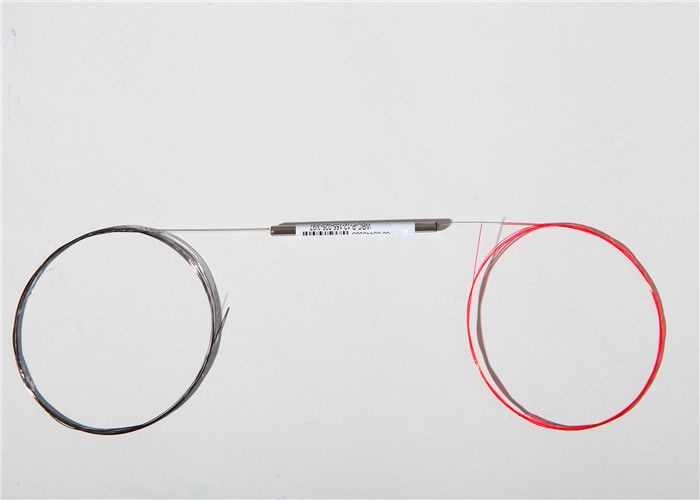

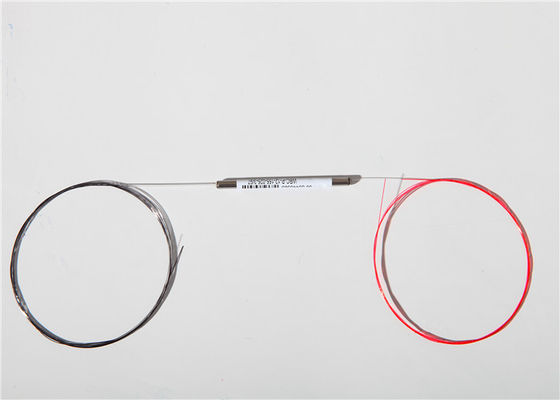

High Isolation 1×N 980&1500nm Fused WDM Wavelength-Division Multiplexing
Basic Information:
Wavelength division multiplexing, WDM. has long been the technology of choice for transporting large amounts of data between sites. It increases bandwidth by allowing different data streams to be sent simultaneously over a single optical fiber network. In this way, WDM maximizes the usefulness of fiber and helps optimize network investments.
Single-Fiber Wave Division Multiplexing (WDM) modules provide a flexible and cost-effective solution for increasing fiber capacity over single fiber networks. WDM over single-fiber increases network bandwidth capacity by enabling multiple wavelengths, or data channels that carry independent services over existing fiber infrastructure.
FBT WDM Benefit&Features:
-- FBT Coupler is a type of optical power management device
-- Provides the whole series of 1xN and 2xN splitter products that are tailored for specific applications
-- Low Insertion Loss & High Isolation
-- Wide Operating Wavelength and Temperature Range
-- All Fiber Configuration
-- Excellent Thermal Stability
-- RoHS Compliant
WDM Applications:
-- FTTX
-- Passive Optical Networks (PON)
-- Digital, hybrid video systems
-- CATV links & Fiber sensors
Specifications& Technology Parameters:
| Fiber Type(dB) | Corning HI1060flex or OFS BF05635-02 | SMF-28e | |||||||
| Operating Wavelength(nm) | 980 & 1550 | 1060 & 1550 | 1310 & 1550 | 1480 & 1550 | |||||
| Operating Bandwidth(nm) | ±10/20 | ±15 | ±15 | ||||||
| Grade | P | A | P | A | P | A | P | A | |
| Insertion Loss(dB) | ≤0.15 | ≤0.25 | ≤0.30 | ≤0.40 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.35 | |
| Isolation(dB) | ≥20 | ≥18 | ≥20 | ≥18 | ≥25 | ≥18 | ≥25 | ≥18 | |
| PDL(dB) | ≤0.05 | ≤0.1 | ≤0.05 | ≤0.1 | ≤0.05 | ≤0.1 | ≤0.1 | ≤0.1 | |
| Directivity(dB) | ≥55 | ||||||||
| Operating Temperature(℃) | -40 ~ +85 | ||||||||
* The above specification is excluding the connector
* Other specification can be made on customer requires
Ordering Information:
| WDM- | N- | XX- | XX- | X- | XX- | XX- | X | |||
| 95:980&1550nm 135:1310&1550nm 65:1060&1550nm 45:1480&1550nm | 01: :SMF-28e 02: HI1060flex, 03: OFS BF05635-02 |
1:1m X:customization |
25:250μM Fiber 09:900μM loose Fiber 20: 2mm cable 30: 3mm cable |
SC:SC/UPC SA:SC/APC ...... 00:No connector |
A: A B: B C:C |
|||||
| Grade | Operation Wavelength | Fiber Type | Fiber Length | Pigtail Type | Connect Type | Dimension | ||||
