Product Details:
|
| Model Name: | Optic Splice Protection Sleeve | Type: | Insulation Sleeving |
|---|---|---|---|
| Material: | Outer Tuber,inner Tube,Stainless Steel Rod, Plastic,340 Stainless Steel | Steel Needle: | 1.5,1.2,1.0, 0.8, 0.5mm Or Customized |
| Length: | 30mm,35mm,40mm,45mm, 60mm Or Customized | Standard Color: | Clear |
| Operating Temperature: | -45 – 100 °C | Shrinking Temperature: | 90 - 120 °C |
| Diameter: | 1.2/1.5mm | Tensile Strength: | 14Mpa |
| Highlight: | SPS fiber heat shrink tube,50mm fiber heat shrink tube,50mm fiber optic sleeve |
||

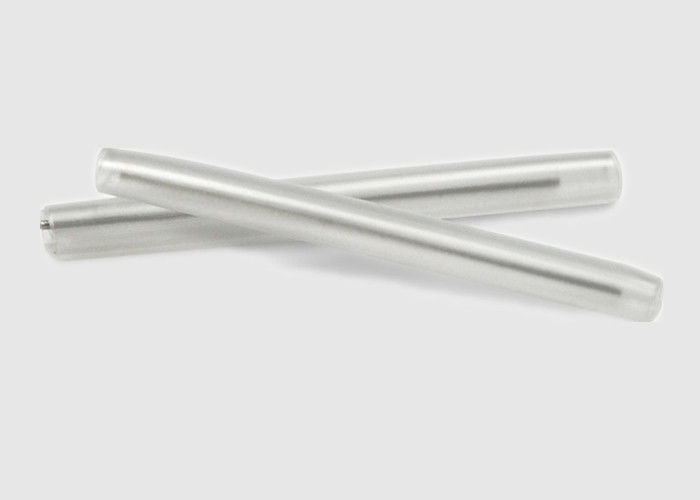

Hot Melt Tube 1.5x60mm Fiber Shrink Tube Optic Splice Protection Sleeve
Brief Introduction:
The shrinkable sleeve is applied to the optical fiber closure to fix and protect the optical fiber when splicing.
The sleeve can be divided into two types(single and mass) according to the function. The single type is used for the single-fiber, and the mass type is used for the ribbon fiber. It is different in the reinforcement between two types. The single one realizes the reinforcement by the stainless steel needles, the later one via the ceramic reinforcement member to realize the function. Mass means there are several cores for the fiber. So the mass sleeve includes 4cores,6cores,8cores,12cores(for types).
Fiber Splice Heat Shrink Characteristics:
Specification & Characteristics:
| Project | Test Method | Typical Data |
| The Tensile Strength | ASTM d 2671 | 18Mp |
| Tensile Rate | ASTM d 2671 | 700% |
| Density | ISO R1183D | 0.94g/cm3 |
| Compressive Strength | IEC 243 | 25KV/mm |
| Volume Resistivity | IEC 243 | 1015Ω |
| The Dielectric Constant | IEC 243 | 2.5 |
| The Longitudinal Shrinkage Rate | ASTM d 2671 | ≤5% |
| The Rate Of Partial Wall | ASTM d 2671 | 10% |
| Size | Routine | 15,25,35,40,43,45,50,60 |
| Unconventional | Micro 15mm, 8 core 24mm, 12 core 40mm | |
| Operating Temperature | (-40 -+85℃) | |
| Initial Shrinkage Temperature | 120℃ | |
Fiber Fusion Splice Heat Shrink Application:
1. Fusion splicing
2. Fiber cable protecting
3. FTTH system
4. Rack-mount & Wall-mount terminal box
5. Optical fiber switch box and so on continue protection
More Types Of Fiber Optical Fusion Splice:
| Item | Description | Sleeving | Outer tube (Heat-shrinkable) | ||||
| Diameter (Before shrink) | Diameter (After shrink) | Length | Inner Diameter | Outside diameter | Length | ||
| 1 | Fiber Protection Sleeves _11mm_φ1.9_Without Strength Member | 1.9±0.1 | 1.25±0.1 | 11±0.1 | 1.4±0.1 | 1.9±0.1 | 11±0.1 |
| 2 | Fiber Protection Sleeves _15mm_φ1_with Strength Member | 1.8±0.1 | 1.4±0.1 | 15±0.1 | 1.5±0.1 | 1.8±0.1 | 15±0.1 |
| 3 | Fiber Protection Sleeves _20mm_φ3_Without Strength Member | 3.9±0.1 | 2.5±0.1 | 20±0.1 | 3.4±0.1 | 3.9±0.1 | 20±0.1 |
| 4 | Fiber Protection Sleeves_20mm_φ4_Without Strength member | 4.4±0.1 | 3.0±0.1 | 20±0.1 | 4.0±0.1 | 4.4±0.1 | 20±0.1 |
Geehe Comm Serivce :
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
