Product Details:
|
| Model Name: | Fiber Optic Splice Protection Sleeve | Type: | Insulation Sleeving |
|---|---|---|---|
| Material: | Outer Tuber,inner Tube,Stainless Steel Rod, Plastic,340 Stainless Steel | Steel Needle: | 1.5,1.2,1.0, 0.8, 0.5mm Or Customized |
| Length: | 30mm,35mm,40mm,45mm, 60mm Or Customized | Standard Color: | Clear |
| Operating Temperature: | -45 – 100 °C | Shrinking Temperature: | 90 - 120 °C |
| Diameter: | 1.2/1.5mm | MOQ: | 100 Pcs |
| Highlight: | φ1.8 Fiber Optic Splice Sleeve,25mm Fiber Optic Splice Sleeve,25mm splice protection sleeves |
||

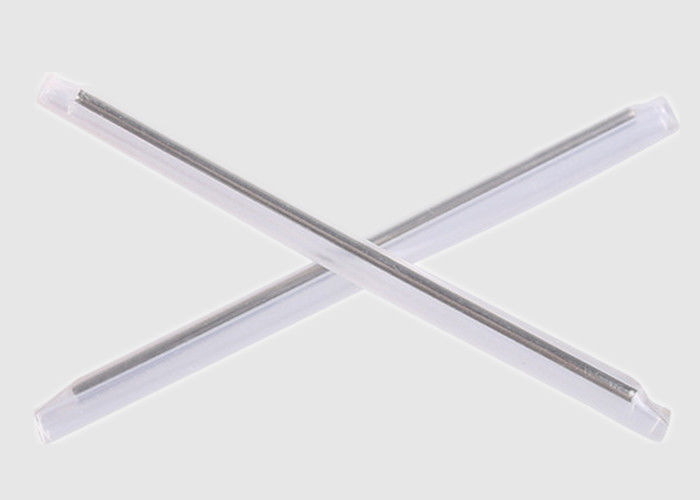

Fast Delivery 25mm φ1.8 Fiber Shrink Tube, Fiber Optic Protection Sleeve
Basic Information:
Heat Shrinkable Fiber Optic Splice Sleeves Tube is Consist of cross-linked polyolefin, Hot fusion tubing, and Stainless Reinforcing Steel Rod which keep optic transmission properties of optical fiber and enhance the protection to optical fiber splices. Easily operating to the optical fiber during installation without damaging and clear sleeve make it easy to detect splice before shrinkage. The sealing structure makes the splice free from the influence of temperature and humidity in a special environment.
This protector provides mechanical reinforcement at the joint point and maintains the optic transmission properties of the fiber optic cable.
Fiber Splice Heat Shrink Characteristics:
Specification & Characteristics:
| Project | Test Method | Typical Data |
| The Tensile Strength | ASTM d 2671 | 18Mp |
| Tensile Rate | ASTM d 2671 | 700% |
| Density | ISO R1183D | 0.94g/cm3 |
| Compressive Strength | IEC 243 | 25KV/mm |
| Volume Resistivity | IEC 243 | 1015Ω |
| The Dielectric Constant | IEC 243 | 2.5 |
| The Longitudinal Shrinkage Rate | ASTM d 2671 | ≤5% |
| The Rate Of Partial Wall | ASTM d 2671 | 10% |
| Size | Routine | 15,25,35,40,43,45,50,60 |
| Unconventional | Micro 15mm, 8 core 24mm, 12 core 40mm | |
| Operating Temperature | (-40 -+85℃) | |
| Initial Shrinkage Temperature | 120℃ | |
Fiber Fusion Splice Heat Shrink Application:
1. Fusion splicing
2. Fiber cable protecting
3. FTTH system
4. Rack-mount & Wall-mount terminal box
5. Optical fiber switch box and so on continue protection
6. All types of fiber cables
More Types Of Fiber Optical Fusion Splice:
| Item | Description | Sleeving | Outer tube (Heat-shrinkable) | ||||
| Diameter (Before shrink) | Diameter (After shrink) | Length | Inner Diameter | Outside diameter | Length | ||
| 1 | Fiber Protection Sleeves _11mm_φ1.9_Without Strength Member | 1.9±0.1 | 1.25±0.1 | 11±0.1 | 1.4±0.1 | 1.9±0.1 | 11±0.1 |
| 2 | Fiber Protection Sleeves _15mm_φ1_with Strength Member | 1.8±0.1 | 1.4±0.1 | 15±0.1 | 1.5±0.1 | 1.8±0.1 | 15±0.1 |
| 3 | Fiber Protection Sleeves _20mm_φ3_Without Strength Member | 3.9±0.1 | 2.5±0.1 | 20±0.1 | 3.4±0.1 | 3.9±0.1 | 20±0.1 |
| 4 | Fiber Protection Sleeves_20mm_φ4_Without Strength member | 4.4±0.1 | 3.0±0.1 | 20±0.1 | 4.0±0.1 | 4.4±0.1 | 20±0.1 |
Geehe Comm Serivce :
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Fast Delivery
High-level OEM factory with 800 skilled workers, take multi-post system.
