Product Details:
|
| Model Name: | Fiber Optic Y Coupler | Operating Wavelength: | 1310nm,1490nm,1550 Nm |
|---|---|---|---|
| Split Ratio: | 50/50,40/60,30/70,20/80,10/90,5/95 Etc | Other Types: | Singlewindow, Dualwindow,Triplewindow |
| Function: | Fiber Distribution | Available Pre-terminated: | LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, And ST/UPC |
| Polarization Alignment: | Slow Axis Or Fast Axis | Fiber Type: | PM Fiber Cable |
| Package Type: | Steel Tube | Configuration Type: | 1×2 With LC To SC Connector |
| Highlight: | 30/70 Fiber Optic Cable Coupler,30/70 single mode fiber coupler,1x2 single mode fiber coupler |
||

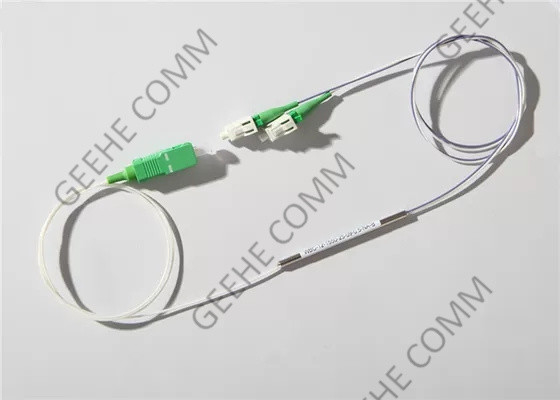

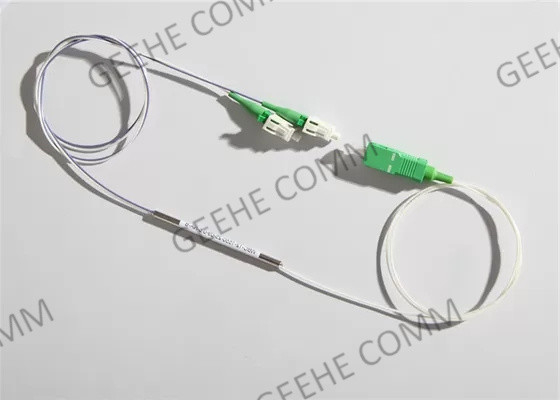

MxN Single Mode Steel Tube Fiber Optic Y Coupler With LC/SC/FC
Optic Coupler Brief Introduces:
A Single-Mode Wideband Couplers have 80nm bandwidth, compared to 40nm of standard fiber optic couplers. This product has a very low excess loss, high-temperature stability, high precision, and smaller sizes.
The coupling ratio can be specified. Couplers working at a center wavelength other than 1550nm or 1310nm can also be provided, more Split Ratio can be available:50:50 /40:60/30:70/20:80/10:90/5:95/1:99, etc.
1× 2 Fiber Optic Coupler Features& Benefits:
Dual Window Wide Brand Coupler Specification and parameter:
| Parameter | P | A | |||
| Operating Wavelength(nm) | 1310&1550 | ||||
| Operating Bandwidth(nm) | 1310 ± 40nm,1550 ± 40nm | ||||
| Fiber Type(dB) | Corning G652D OR Corning G657 A1 | ||||
| Insertion Loss (dB) |
50/50 | ≤3.3 | ≤3.5 | ||
| 40/60 | 3.70~4.40≤2.5 | 3.50~4.60/≤2.8 | |||
| 30/70 | 5.00~5.60/≤1.8 | 4.90~6.10/≤2.1 | |||
| 20/80 | 6.80~7.40/≤1.2 | 6.50~7.70/≤1.2 | |||
| 10/90 | 9.60~10.50/≤0.6 | 8.80~11.40/≤0.8 | |||
| 5/95 | 12.70~13.50 /≤0.4 | 12.05~14.05/≤0.5 | |||
| 3/97 | 14.60~15.50/≤0.3 | 13.60~16.05/≤0.4 | |||
| 2/98 | 16.60~17.90/≤0.25 | 15.60~18.20/≤0.3 | |||
| 1/99 | 19.20~20.80/≤0.2 | 18.80~21.40/≤0.25 | |||
| PDL(dB) | ≤0.1 | ≤0.15 | |||
| Return Loss(dB) | ≥50 | ≥45 | |||
| Directivity(dB) | ≥55 | ||||
| Operating Temperature(℃) | -40 ~ +85 | ||||
* The above specification is without connector
* Other specifications can be made on customer request
Ordering Information:
| WBC- | X- | X2- | 35- | XX- | X- | XX- | XX- | X |
| P: Premium A: Grade A X: Customization |
12:1x2 22:2x2 |
35:1310/1550nm | 01: 01:99 02: 02:98 …… 50: 50:50 |
1:1 m x: Customization |
25:250μM Fiber 09:900μM loose fiber | SC: SC/UPC SA: SC/APC 00: no connector |
A: A B: B C:C |
|
| Grade | Port number | Operating wavelength | Coupling ratio | Fiber length | Fiber type | Connect type | Dimension |
EX:WBC-P-12-35-50-1-09-0-B
