| Model Name: | Mini Size FBT Fiber Optic Couplers | Optical Coupler Configuration Type: 1x2 Operating Wavelength: | 1310nm,1490nm,1550 Nm |
|---|---|---|---|
| Split Ratio: | 50:50,30:70,10:90,5:95,1:99 | Other Types: | Singlewindow, Dualwindow,Triplewindow |
| Device Type: | Fused Coupler | Available Pre-terminated: | LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, And ST/UPC |
| Polarization Alignment: | Slow Axis Or Fast Axis | Fiber Type: | PM Fiber Cable |
| Package Dimension: | Ø4x 40;Ø4x 54;98x16x9 Mm | No. Of Fibe4s: | 8 Fiber Input,8 Fiber Output |
| Highlight: | 8×8 optical fiber coupler,8×8 fbt fiber coupler,5/95 optical fiber coupler |
||

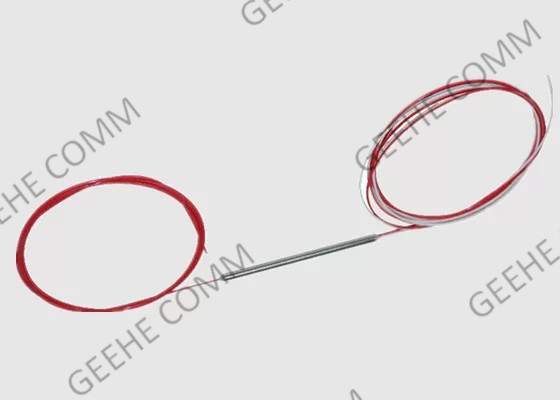

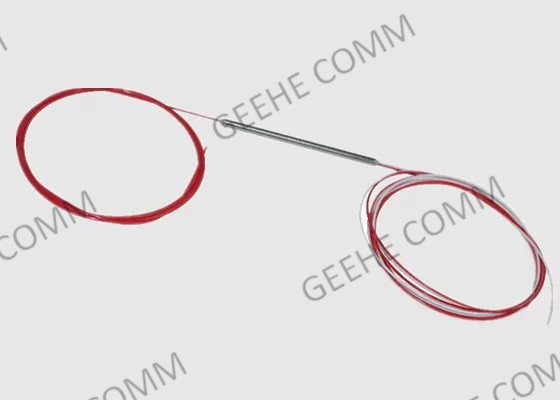

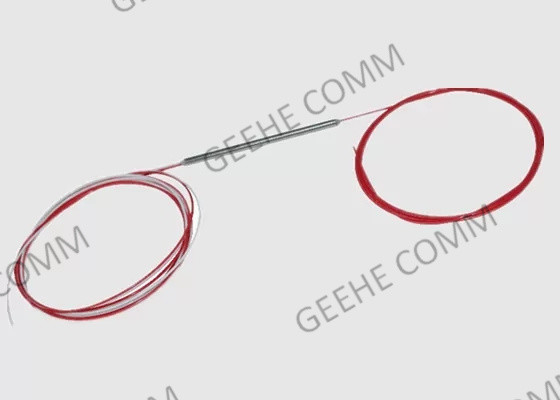

Mini Sizes Steel Tube 8 ×8 Single Mode Star FBT Fiber Optic Couplers
FBT Optic Coupler Brief Introduces:
A fiber-optic coupler, also known as an optical fiber connector, provides termination to the end of an optic fiber, serving to quickly connect or disconnect one fiber from another.
An optical fiber itself contains a core of thin, flexible, and transparent glass or plastic that, without a fiber-optic coupler, would require splicing, which is the act of shedding the material surrounding the core at the tip of each fiber and then ensuring direct contact between the two cores.
8×8 Fiber Optic Coupler Features& Benefits:
FBT Coupler Compare With PLC Splitter:
| Parameters | FBT Splitter | PLC Splitter |
| Fabrication Method | Two or more pieces of optical fibers are bound together and put on a fused-taper fiber device. The fibers are then drawn out according to the output branch and ratio with one fiber being singled out as the input. | Consists of one optical chip and several optical arrays depending on the output ratio. The optical arrays are coupled on both ends of the chip. |
| Operating Wavelength | 1310nm and 1550nm (standard); 850nm (custom) | 1260nm -1650nm (full wavelength) |
| Application | HFC (network of fiber and coaxial cable for CATV); All FTIH applications. | Same |
| Performance | Up to 1:20– reliable. For larger splits, reliability can become an issue. | Good for all splits. High level of reliability and stability. |
| Input/Output | One or two inputs with an output maximum of 32 fibers. | One or two inputs with an output maximum of 64 fibers. |
| Package | Steel Tube (used mainly in equipment); ABS Black Module (Conventional) | Same |
| Input/Output Cable | Bare optical fiber; 0.9mm, 2.0mm, and 3.0mm | Same |
| Package Size | 1×2 to 1×8 smaller size than PLC | More than 1×8, PLC Splitter size is smaller |
| Stability and Reliability | Stability is better | High stability not as FBT Splitter |
Wide Brand Coupler Specification and parameter:
| Parameter | P | A | |||
| Operating Wavelength(nm) | 1310&1490&1550 | ||||
| Operating bandwidth(nm) | 1310 ± 40nm,1490± 40nm,1550 ± 40nm | ||||
| Fiber Type(dB) | Corning G652D OR Corning G657 A1 | ||||
| Insertion Loss (dB) |
50:50 | ≤3.4 | ≤3.6 | ||
| 30:70 | 5.00~5.60/≤1.8 | 4.90~6.10/≤2.1 | |||
| 10:90 | 9.60~10.50/≤0.6 | 8.80~11.40/≤0.8 | |||
| 5:95 | 12.70~13.50 /≤0.4 | 12.05~14.05/≤0.5 | |||
| 1:99 | 19.20~20.80/≤0.2 | 18.80~21.40/≤0.25 | |||
| PDL(dB) | ≤0.1 | ≤0.1 | |||
| Return Loss(dB) | ≥55 | ≥45 | |||
| Directivity(dB) | ≥55 | ||||
| Operating Temperature(℃) | -40 ~ +85 | ||||
* The above specification is without connector
* Other specifications can be made on customer request
Ordering Information:
| WBC- | X- | X2- | 345- | XX- | X- | XX- | XX- | X |
| P: Premium A: Grade A X: on request |
12:1x2 22:2x2 |
1310&1490&1550nm | 01: 01:99 05: 05:95 …… 50: 50:50 |
1:1 m x: on request |
25:250μM Fiber 09:900μM Loose Fiber | SC: SC/UPC SA: SC/APC 00:no connect |
A: A B: B C:C |
|
| Grade | Port Number | Operation Wavelength | Coupling Ratio | Fiber Length | Fiber Type | Connector Type | Dimension |
EX:WBC-P-12-345-50-1-25-00-A
