Product Details:
|
| Model Name: | FBT Box Optical Couple | Optical Coupler Configuration Type: 1x2 Operating Wavelength: | 1310nm,1490nm,1550 Nm |
|---|---|---|---|
| Split Ratio: | 50:50,30:70,10:90,5:95,1:99 | Other Types: | Singlewindow, Dualwindow,Triplewindow |
| Device Type: | Fused Coupler Box | Available Pre-terminated: | LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, And ST/UPC |
| Polarization Alignment: | Slow Axis Or Fast Axis | Fiber Type: | PM Fiber Cable |
| Package Dimension: | Ø4x 40;Ø4x 54;98x16x9 Mm | No. Of Fibers: | 12 Fiber Input,16 Fiber Output |
| Highlight: | 9/125 Fiber Optic Coupler,G652D Fiber Optic Coupler,9/125 fbt fiber coupler |
||

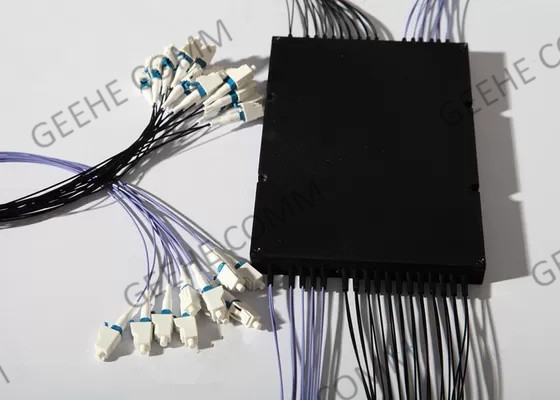

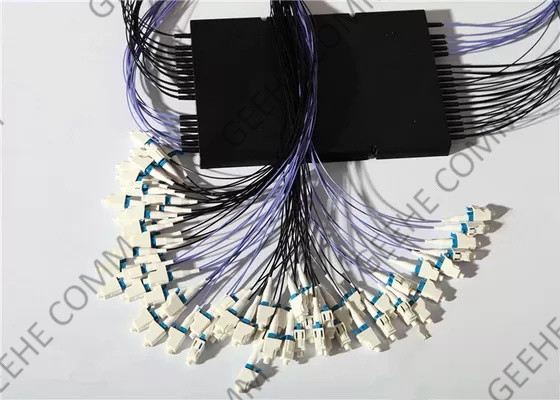

FBT Box Optical Coupler SM 9/125, G652D Star Structure Fiber Distribution
FBT Optic Coupler Brief Introduces:
Fused fiber optic couplers (FBT Coupler) are designed for power splitting and tapping telecommunication equipment, CATV networks, and test equipment. These kinds of small components are available individually or integrated into modules for fiber protection switching, MUX/DMUX, optical channel monitoring, and add/drop multiplexing applications.
The plastic box FBT optical coupler can choose many options of connectors, such as Lc, Sc, Fc, St, MU.
Fiber Optic Coupler Features& Benefits:
FBT Coupler Compare With PLC Splitter:
| Parameters | FBT Splitter | PLC Splitter |
| Fabrication Method | Two or more pieces of optical fibers are bound together and put on a fused-taper fiber device. The fibers are then drawn out according to the output branch and ratio with one fiber being singled out as the input. | Consists of one optical chip and several optical arrays depending on the output ratio. The optical arrays are coupled on both ends of the chip. |
| Operating Wavelength | 1310nm and 1550nm (standard); 850nm (custom) | 1260nm -1650nm (full wavelength) |
| Application | HFC (network of fiber and coaxial cable for CATV); All FTIH applications. | Same |
| Performance | Up to 1:20– reliable. For larger splits, reliability can become an issue. | Good for all splits. High level of reliability and stability. |
| Input/Output | One or two inputs with an output maximum of 32 fibers. | One or two inputs with an output maximum of 64 fibers. |
| Package | Steel Tube (used mainly in equipment); ABS Black Module (Conventional) | Same |
| Input/Output Cable | Bare optical fiber; 0.9mm, 2.0mm, and 3.0mm | Same |
| Package Size | 1×2 to 1×8 smaller size than PLC | More than 1×8, PLC Splitter size is smaller |
| Stability and Reliability | Stability is better | High stability not as FBT Splitter |
Wide Brand Coupler Specification and parameter:
| Parameter | P | A | |||
| Operating Wavelength(nm) | 1310&1490&1550 | ||||
| Operating bandwidth(nm) | 1310 ± 40nm,1490± 40nm,1550 ± 40nm | ||||
| Fiber Type(dB) | Corning G652D OR Corning G657 A1 | ||||
| Insertion Loss (dB) |
50:50 | ≤3.4 | ≤3.6 | ||
| 30:70 | 5.00~5.60/≤1.8 | 4.90~6.10/≤2.1 | |||
| 10:90 | 9.60~10.50/≤0.6 | 8.80~11.40/≤0.8 | |||
| 5:95 | 12.70~13.50 /≤0.4 | 12.05~14.05/≤0.5 | |||
| 1:99 | 19.20~20.80/≤0.2 | 18.80~21.40/≤0.25 | |||
| PDL(dB) | ≤0.1 | ≤0.1 | |||
| Return Loss(dB) | ≥55 | ≥45 | |||
| Directivity(dB) | ≥55 | ||||
| Operating Temperature(℃) | -40 ~ +85 | ||||
* The above specification is without connector
* Other specifications can be made on customer request
Ordering Information:
| WBC- | X- | X2- | 345- | XX- | X- | XX- | XX- | X |
| P: Premium A: Grade A X: on request |
12:1x2 22:2x2 |
1310&1490&1550nm | 01: 01:99 05: 05:95 …… 50: 50:50 |
1:1 m x: on request |
25:250μM Fiber 09:900μM Loose Fiber | SC: SC/UPC SA: SC/APC 00:no connect |
A: A B: B C:C |
|
| Grade | Port Number | Operation Wavelength | Coupling Ratio | Fiber Length | Fiber Type | Connector Type | Dimension |
EX:WBC-P-12-345-50-1-25-00-A
Fiber Optic Coupler Application:
Wuhan Geehe Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Fast Delivery
With skilled and stable workers, all the order turnover is fast than the competitors
5) Factory Audit
We cooperate with famous brands and Japanese customers, with 15 years of factory inspection experience and be familiar with the whole inspect process by SGS
6)Warranty
All our factory products with a 12-month warranty, any comments on our products welcome to feedback to us.
