Product Details:
|
| Module Name: | WDM Optical Fiber Coupler | Port Type: | 1×2 |
|---|---|---|---|
| Fiber Type: | PM Panda Fiber All Ports Or SM Fiber | Jacket: | 250um Or 900nm Or Others |
| Connectors: | FC, SC UPC | Pigtail Length: | 1M,1.5M Or Customized |
| Common Pass Port: | PM980, PM1310, PM1550nm | Option Channel: | 4, 8 , 16, 18,32 Channels |
| Operating Wavelength: | 980~1550 Nm | Package: | Mini Package, Module Package, Frame Package |
| Highlight: | 1x2 FBT Optical Fiber Coupler,Optical Fiber Coupler SC UPC,1550nm WDM Optical Fiber Coupler |
||

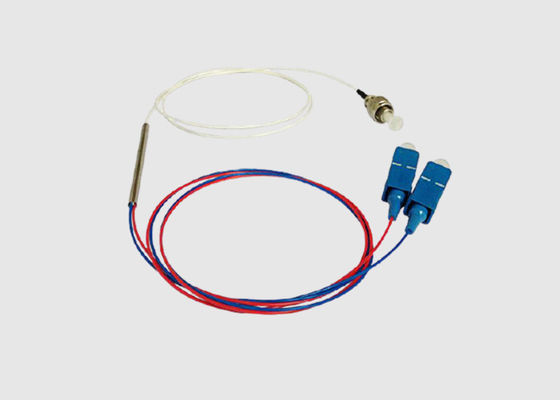

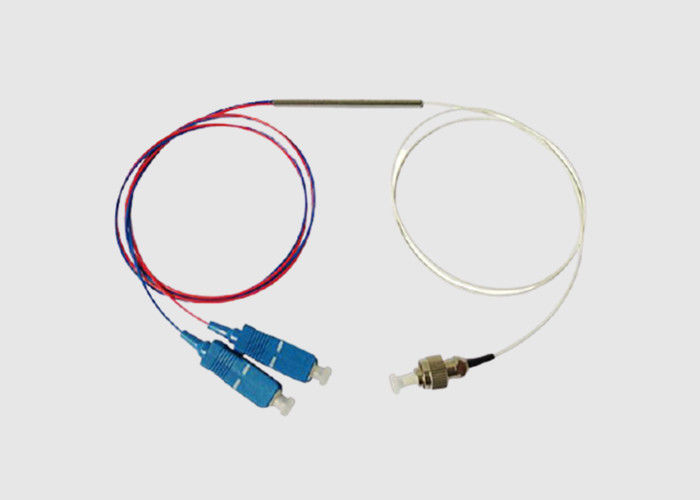

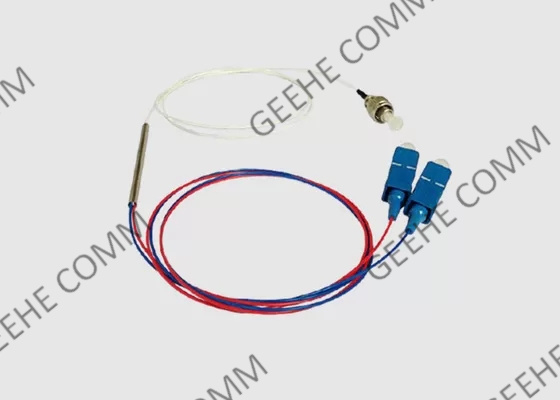

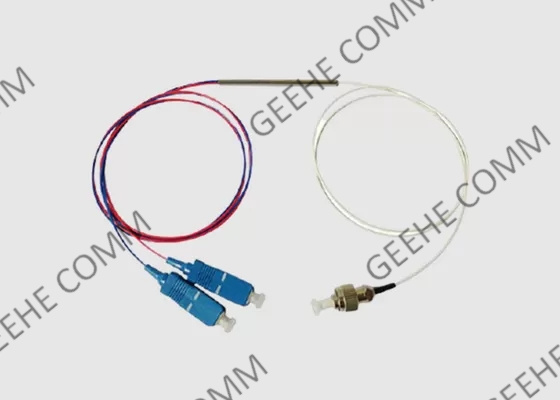

1x2 FBT Coupler 1550NM WDM Optical Fiber Coupler SC UPC For FTTH
Basic Information:
Geehe provides a wide range of single-mode and multimode fused coupler, single-mode fused WDM components, and PLC splitters.
The single-mode components are primarily used in backbone optical networks while the multimode components are deployed mainly in local area networks, storage networks, and other access points.
WDM Coupler is housed in a compact, environmentally stable package that offers superior resistance to humidity and temperature and is suitable for mounting on a printed circuit board or within a module.
FBT WDM Benefit&Features:
Certification And Compliance:
* GR-1209-CORE Requirements for passive optic components
* GR-1221-CORE Reliability assurance requirements for passive optical components
* GR-326-CORE Requirements for single-mode optical connectors sand jumpers assemblies
* TIA-604 Fiber optic connector interpretability standard
* ROHS Directive on the restriction of hazardous substances
WDM Applications:
Specifications& Technology Parameters:
| Fiber Type(dB) | Corning HI1060flex or OFS BF05635-02 | SMF-28e | |||||||
| Operating Wavelength(nm) | 980 & 1550 | 1060 & 1550 | 1310 & 1550 | 1480 & 1550 | |||||
| Operating Bandwidth(nm) | ±10/20 | ±15 | ±15 | ||||||
| Grade | P | A | P | A | P | A | P | A | |
| Insertion Loss(dB) | ≤0.15 | ≤0.25 | ≤0.30 | ≤0.40 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.35 | |
| Isolation(dB) | ≥20 | ≥18 | ≥20 | ≥18 | ≥25 | ≥18 | ≥25 | ≥18 | |
| PDL(dB) | ≤0.05 | ≤0.1 | ≤0.05 | ≤0.1 | ≤0.05 | ≤0.1 | ≤0.1 | ≤0.1 | |
| Directivity(dB) | ≥55 | ||||||||
| Operating Temperature(℃) | -40 ~ +85 | ||||||||
* The above specification is excluding the connector
* Other specification can be made on customer requires
Ordering Information:
| WDM- | N- | XX- | XX- | X- | XX- | XX- | X | |||
| 95:980&1550nm 135:1310&1550nm 65:1060&1550nm 45:1480&1550nm | 01: :SMF-28e 02: HI1060flex, 03: OFS BF05635-02 |
1:1m X:customization |
25:250μM Fiber 09:900μM loose Fiber 20: 2mm cable 30: 3mm cable |
SC:SC/UPC SA:SC/APC ...... 00:No connector |
A: A B: B C:C |
|||||
| Grade | Operation Wavelength | Fiber Type | Fiber Length | Pigtail Type | Connect Type | Dimension | ||||
