| Model Name: | Wideband Optical Couplers | Operating Wavelength: | 1310nm,1490nm,1550nm |
|---|---|---|---|
| Split Ratio: | 50/50,40/60,30/70,20/80,10/90,5/95 Etc | Other Types: | Singlewindow, Dualwindow,Triplewindow |
| Function: | Fiber Distribution | Available Pre-terminated: | LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, And ST/UPC |
| Polarization Alignment: | Slow Axis Or Fast Axis | Fiber Type: | PM Fiber Cable |
| Package Type: | Steel Tube | Configuration Type: | 1×2 With ST Connector |
| Highlight: | 1×2 Ratios Wideband Optical Couplers,Dual Window Wideband Optical Couplers,1×2 Fiber Coupler with ST connector |
||

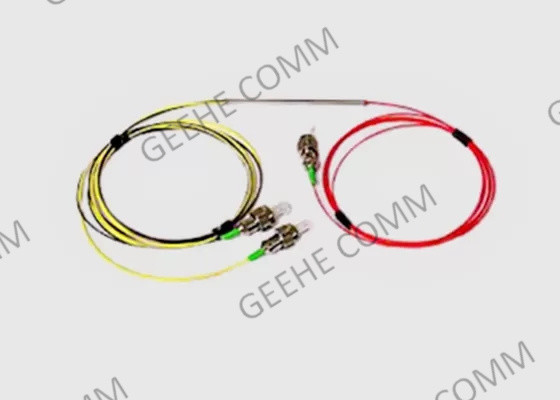

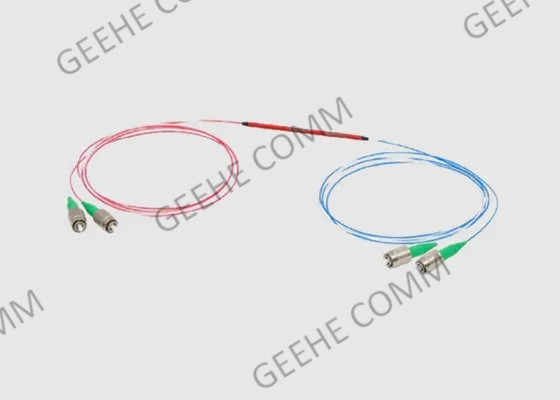

Fiber Optic ST Connector Coupler 1 × 2 Ratios Wideband Optical Couplers
Optic Coupler Brief Introduces:
Singlemode Couplers 1X2 and 2X2 offer very low insertion loss, low polarization dependence, and excellent environmental stability. Accurate coupling ratio's from 50/50 to 1/99 are available with very tight uniformity. The Singlemode Standard Coupler components perform power splitting and monitoring functions in all kinds of optical communication systems.
Geehe's Fiber Couplers with more stability, and widely used by brands and brand manufacturers, also get Brazil Anatel Certificate, tapered (FBT) technology, and are fully compliant with Telcordia GR-1209/1221 standards for network applications.
Fiber Optic Coupler Features& Benefits:
Low Excess Loss
High Stability And High Reliability
Ultra-low PDL and temperature sensitivity
Low insertion loss over entire bandwidth and temperature (typical IL change <±0.1dB)
Dual Window Wide Brand Coupler Specification and parameter:
| Parameter | P | A | |||
| Operating Wavelength(nm) | 1310&1550 | ||||
| Operating Bandwidth(nm) | 1310 ± 40nm,1550 ± 40nm | ||||
| Fiber Type(dB) | Corning G652D OR Corning G657 A1 | ||||
| Insertion Loss (dB) |
50/50 | ≤3.3 | ≤3.5 | ||
| 40/60 | 3.70~4.40≤2.5 | 3.50~4.60/≤2.8 | |||
| 30/70 | 5.00~5.60/≤1.8 | 4.90~6.10/≤2.1 | |||
| 20/80 | 6.80~7.40/≤1.2 | 6.50~7.70/≤1.2 | |||
| 10/90 | 9.60~10.50/≤0.6 | 8.80~11.40/≤0.8 | |||
| 5/95 | 12.70~13.50 /≤0.4 | 12.05~14.05/≤0.5 | |||
| 3/97 | 14.60~15.50/≤0.3 | 13.60~16.05/≤0.4 | |||
| 2/98 | 16.60~17.90/≤0.25 | 15.60~18.20/≤0.3 | |||
| 1/99 | 19.20~20.80/≤0.2 | 18.80~21.40/≤0.25 | |||
| PDL(dB) | ≤0.1 | ≤0.15 | |||
| Return Loss(dB) | ≥50 | ≥45 | |||
| Directivity(dB) | ≥55 | ||||
| Operating Temperature(℃) | -40 ~ +85 | ||||
* The above specification is without connector
* Other specifications can be made on customer request
Ordering Information:
| WBC- | X- | X2- | 35- | XX- | X- | XX- | XX- | X |
| P: Premium A: Grade A X: Customization |
12:1x2 22:2x2 |
35:1310/1550nm | 01: 01:99 02: 02:98 …… 50: 50:50 |
1:1 m x: Customization |
25:250μM Fiber 09:900μM loose fiber | SC: SC/UPC SA: SC/APC 00: no connector |
A: A B: B C:C |
|
| Grade | Port number | Operating wavelength | Coupling ratio | Fiber length | Fiber type | Connect type | Dimension |
EX:WBC-P-12-35-50-1-09-0-B
