Product Details:
|
| Model Name: | 3×3 Fiber Optic Couplers | Optical Coupler Configuration Type: 1x2 Operating Wavelength: | 1310nm,1490nm,1550 Nm |
|---|---|---|---|
| Split Ratio: | 50/50,40/60,30/70,20/80,10/90,5/95 Etc | Other Types: | Singlewindow, Dualwindow,Triplewindow |
| Function: | Fiber Distribution | Available Pre-terminated: | LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, And ST/UPC |
| Polarization Alignment: | Slow Axis Or Fast Axis | Fiber Type: | 250um Fiber |
| Package Type: | Steel Tube | Configuration Type: | 3×3 FC Connectors |
| Highlight: | Fiber Cable Coupler 3×3,3×3 Fiber Optic Couplers And Splitters,Fiber Optic Coupler with FC Connectors |
||

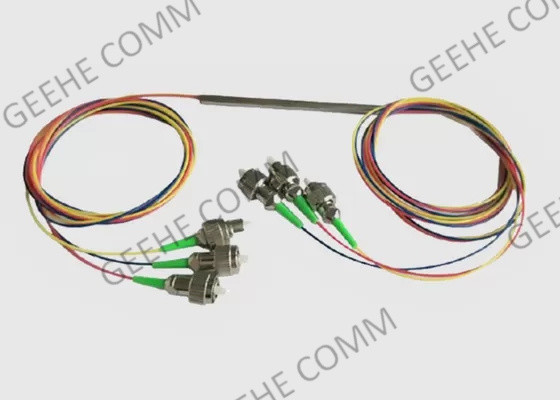

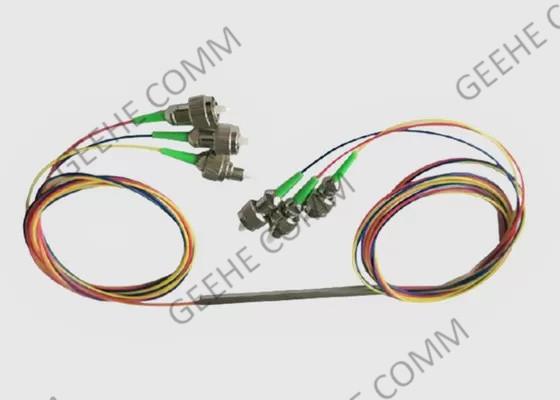

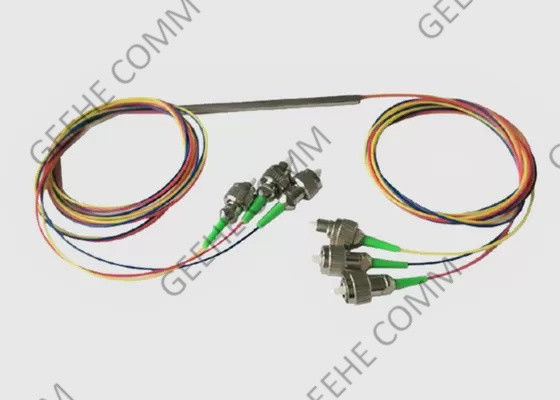

Steel Tube Bare Fiber 250um 3×3 Fiber Optic Couplers with FC Connectors
Optic Coupler Brief Introduces:
Fiber optic coupler is one type of fiber optic component that allows for the redistribution of optical signals. It covers a wide range of fiber optic devices such as optical splitters, optical combiners, and optical couplers. A fiber optic coupler is a device that can distribute the optical signal from one fiber among two or more fibers, or combine the optical signal from two or more fibers into a single fiber.
Fused-fiber couplers used the most basic material–optical fiber. Two or more fiber cores are twisted, fused, and tapered together in a length.
1× 2 Fiber Optic Coupler Features& Benefits:
1) Low insertion loss
2) Low PDL
3) Compact design
4) Good channel-to-channel uniformity
5) High directivity
6) High reliability and stability
7) Various coupling ratios available
Dual Window Wide Brand Coupler Specification and parameter:
| Parameter | P | A | |||
| Operating Wavelength(nm) | 1310&1550 | ||||
| Operating Bandwidth(nm) | 1310 ± 40nm,1550 ± 40nm | ||||
| Fiber Type(dB) | Corning G652D OR Corning G657 A1 | ||||
| Insertion Loss (dB) |
50/50 | ≤3.3 | ≤3.5 | ||
| 40/60 | 3.70~4.40≤2.5 | 3.50~4.60/≤2.8 | |||
| 30/70 | 5.00~5.60/≤1.8 | 4.90~6.10/≤2.1 | |||
| 20/80 | 6.80~7.40/≤1.2 | 6.50~7.70/≤1.2 | |||
| 10/90 | 9.60~10.50/≤0.6 | 8.80~11.40/≤0.8 | |||
| 5/95 | 12.70~13.50 /≤0.4 | 12.05~14.05/≤0.5 | |||
| 3/97 | 14.60~15.50/≤0.3 | 13.60~16.05/≤0.4 | |||
| 2/98 | 16.60~17.90/≤0.25 | 15.60~18.20/≤0.3 | |||
| 1/99 | 19.20~20.80/≤0.2 | 18.80~21.40/≤0.25 | |||
| PDL(dB) | ≤0.1 | ≤0.15 | |||
| Return Loss(dB) | ≥50 | ≥45 | |||
| Directivity(dB) | ≥55 | ||||
| Operating Temperature(℃) | -40 ~ +85 | ||||
* The above specification is without connector
* Other specifications can be made on customer request
Ordering Information:
| WBC- | X- | X2- | 35- | XX- | X- | XX- | XX- | X |
| P: Premium A: Grade A X: Customization |
12:1x2 22:2x2 |
35:1310/1550nm | 01: 01:99 02: 02:98 …… 50: 50:50 |
1:1 m x: Customization |
25:250μM Fiber 09:900μM loose fiber | SC: SC/UPC SA: SC/APC 00: no connector |
A: A B: B C:C |
|
| Grade | Port number | Operating wavelength | Coupling ratio | Fiber length | Fiber type | Connect type | Dimension |
EX:WBC-P-12-35-50-1-09-0-B
3×3 FIber Optic Coupler Application:
FTTx Systems
LAN, WAN, and Metro Networks
Analog/Digital Passive Optical Networks
Long-haul telecommunication
Mini sizes transmitter/receiver module
Optical communication system
Optical communication system
Optical power distribution system
Fiber optic sensors
Optical test system
