Product Details:
|
| Model Name: | Fiber Fused Couplers | Operating Wavelength: | 1310nm,1490nm,1550 Nm |
|---|---|---|---|
| Split Ratio: | 50/50,40/60,30/70,20/80,10/90,5/95 Etc | Other Types: | Singlewindow, Dualwindow,Triplewindow |
| Function: | Fiber Distribution | Available Pre-terminated: | LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, And ST/UPC |
| Polarization Alignment: | Slow Axis Or Fast Axis | Fiber Type: | PM Fiber Cable |
| Package Type: | Steel Tube | Configuration Type: | 1×2 |
| Highlight: | 2mm Fiber Optic Cable Coupler,1×2 Fiber Optic Cable Coupler,980 Fiber Optic Cable Coupler |
||

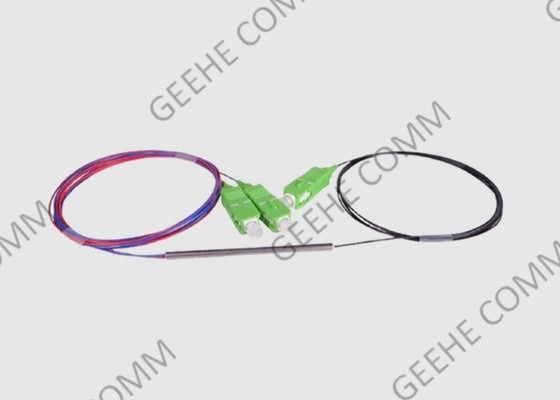

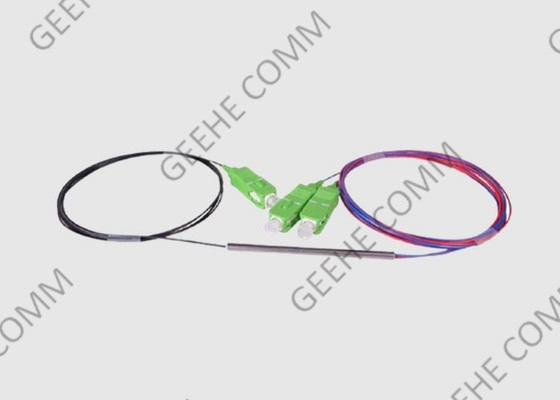

Single Mode 2mm Jacket 1×2 980 Ultra Small Coupler Optical Splitters
Optic Coupler Brief Introduces:
Single-mode fused biconical tapered (FBT) optical splitters are available in a wide range of split ratios to suit a variety of applications. This particular single-mode fiber coupler is available in a variety of jackets and the low profile stainless steel tube package provides bi-directional wideband performance.
FBT couplers base on the standard dual-window type. With very low PDL of less than 0.06 dB for coupling ratio 50/50,1/90 they are suited for applications where the PDL of the system is critical.
1 × 2 Fiber Optic Coupler Features& Benefits:
1) Low loss&Low WDL
2) Ultra low PDL
3) Ultra wide operation bandwidth +/-80nm
4) High directivity
5) Mini-size package
6) Dual operating window
7) Compact package
Dual Window Wide Brand Coupler Specification and parameter:
|
1×2 980 Ultra-small size coupler Technical Specification for procurement of optical splitters(80u 980 fiber) Version: A/0 |
|||||||||
| Performance Specifications | Parameters | Specifications | Unit | Note | |||||
| working wavelength Range | 970－980 | nm | |||||||
| Insertion Loss | 25 | Max | 1.6 | dB | |||||
| Min | 1.2 | ||||||||
| 75 | Max | 6.6 | dB | ||||||
| Min | 5.5 | ||||||||
| Polarization Dependent Loss | ≤0.1 | dB | |||||||
| Temperature dependent loss | ≤0.15 | dB | |||||||
| Directivity | ≥50 | dB | |||||||
| OperatingTemperature | -5 to 75 | ℃ | Max. Optical Power | mw | 500 | ||||
| Storage Temperature | -40 to 85 | ℃ | Operating Humidity | % | 0 to 90 | ||||
| Reliability Requirement | Compliant with GR-1209-CORE and GR-1221-CORE | ||||||||
| Packaging Specifications | Parameters | Specifications | |||||||
| Fiber Type | CS980-80-20/165, or other fiber | ||||||||
| Dimension | Φ2.4-L25(mm) | ||||||||
| Pigtail Length (All Port) | 1.0 ± 0.1m | ||||||||
| Fiber color code | 25% port colored | ||||||||
| lS | Optical Connector (All port) | None | |||||||
|
Notes: 1. The Wavelength Dependent Loss is the difference between maximum insertion loss and minimum insertion loss over the whole working wavelength range 2. Temperature-Dependent Loss is defined as the insertion loss variation over the whole working temperature range. 3. The 1000 hours reliability report for 85°C,85%RH or 75°C,90%RH should be provided.
|
|||||||||
1×2 Fiber Optic Coupler Application:
FTTx Systems
LAN, WAN, and Metro Networks
Analog/Digital Passive Optical Networks
Long-haul telecommunication
Mini sizes transmitter/receiver module
Optical communication system
Optical power distribution system
Fiber optic sensors
Optical test system
