Product Details:
|
| Model Name: | Fiber Fused Couplers | Operating Wavelength: | 1310nm,1490nm,1550 Nm |
|---|---|---|---|
| Split Ratio: | 50/50,40/60,30/70,20/80,10/90,5/95 Etc | Other Types: | Singlewindow, Dualwindow,Triplewindow |
| Function: | Fiber Distribution | Available Pre-terminated: | LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, And ST/UPC |
| Polarization Alignment: | Slow Axis Or Fast Axis | Fiber Type: | PM Fiber Cable |
| Package Type: | Steel Tube | Configuration Type: | 1×2 |
| Highlight: | 1×2 WDM Fiber Splitter,1550 WDM Fiber Splitter,980 WDM Fiber Splitter |
||

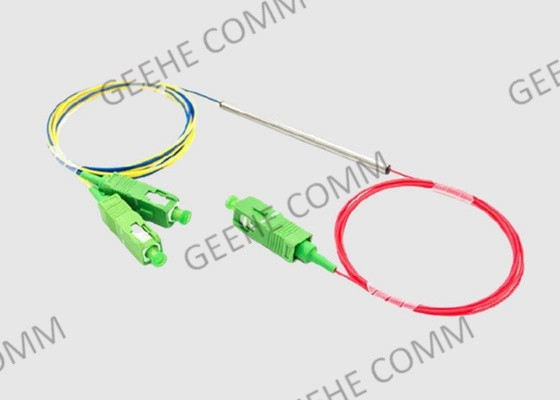

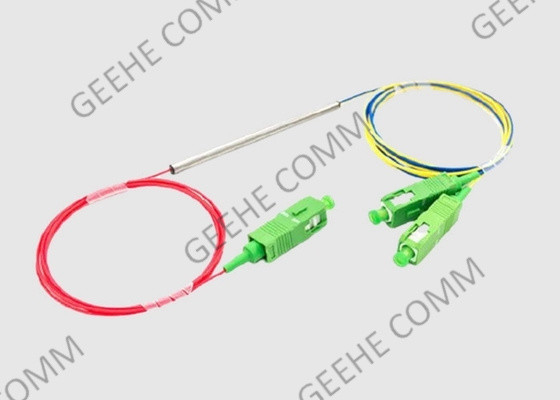

1×2 Metal Tube 980 &1550 Small Size WDM Optical Splitters With SC Connectors
Optic Coupler Brief Introduces:
Singlemode (SM) Couplers / Splitters are custom built to our customers’ specifications. We are capable of any coupling ratio from 50:50 to 99:1, build bi-directional assemblies, and utilize our processed connectors for the lowest insertion loss performance. We build metal tubes, ABS boxes, plastic modules, and LGX type assemblies with any major connector type.
FBT couplers base on the standard dual-window type. With very low PDL of less than 0.06 dB for coupling ratio 50/50, they are suited for applications where the PDL of the system is critical.
1 × 2 Fiber Optic Coupler Features& Benefits:
1) Low loss&Low WDL
2) Ultra low PDL
3) Ultra wide operation bandwidth +/-80nm
4) High directivity
5) Mini-size package
6) Dual operating window
7) Compact package
Dual Window Wide Brand Coupler Specification and parameter:
|
1×2 980 &1550 Small size WDM Technical Specification for procurement of optical splitters Version:A/0 |
||||||||
| Performance Specifications | Parameters | Specifications | Unit | Note | ||||
| Signa working wavelength Range (λs) | 1528-1569 | nm | ||||||
| Pump working wavelength Range (λp) | 965-985 | nm | ||||||
| Insertion Loss | signal«common@ls | ≤0.20 | dB | |||||
| pump«common@lp | ≤0.20 | dB | ||||||
| Isolation | signal«common@ls | ≥20 | dB | |||||
| pump«common@lp | ≥17 | dB | ||||||
| Polarization Dependent Loss | ≤0.05 | dB | ||||||
| Temperature dependent loss | ≤0.15 | dB | ||||||
| Directivity | ≥55 | dB | ||||||
| OperatingTemperature | -5 to 75 | ℃ | Max. Optical Power | mw | 500 | |||
| Storage Temperature | -40 to 85 | ℃ | Operating Humidity | % | 0 to 90 | |||
| Reliability Requirement | Compliant with GR-1209-CORE and GR-1221-CORE | |||||||
| Packaging Specifications | Parameters | Specifications | ||||||
| Fiber Type | OFS 980-20, or other fiber | |||||||
| Dimension | Φ2.4-L30(mm) | |||||||
| Pigtail Length (All Port) | 1.0 ± 0.1m | |||||||
| lS | Optical Connector (All port) | None | ||||||
|
Notes: 1. The Wavelength Dependent Loss is the difference between maximum insertion loss and minimum insertion loss over the whole working wavelength range 2. Temperature Dependent Loss is defined as the insertion loss variation over the whole working temperature range. 3. The 1000 hours reliability report for 85°C,85%RH or 75°C,90%RH should be provided. |
||||||||
1×2 Fiber Optic Coupler Application:
FTTx Systems
LAN, WAN, and Metro Networks
Analog/Digital Passive Optical Networks
Long-haul telecommunication
Mini sizes transmitter/receiver module
Optical communication system
Optical power distribution system
Wuhan Geehe Services:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Fast Delivery
With skilled and stable workers, all the order turnover is fast than the competitors
5) Factory Audit
We cooperate with famous brands and Japanese customers, with 15 years of factory inspection experience and be familiar with the whole inspect process by SGS
