Product Details:
|
| Model Name: | Optical Splitter Coupler | Operating Wavelength: | 1310nm,1490nm,1550 Nm |
|---|---|---|---|
| Split Ratio: | 50/50,40/60,30/70,20/80,10/90,5/95 Etc | Other Types: | Singlewindow, Dualwindow,Triplewindow |
| Function: | Fiber Distribution | Available Pre-terminated: | LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, And ST/UPC |
| Polarization Alignment: | Slow Axis Or Fast Axis | Fiber Type: | PM Fiber Cable |
| Package Type: | Steel Tube | Configuration Type: | 1×3 |
| Highlight: | 1565nm Fiber Optic Cable Coupler,1×3 Fiber Optic Cable Coupler,1×3 Optical Splitter Coupler |
||

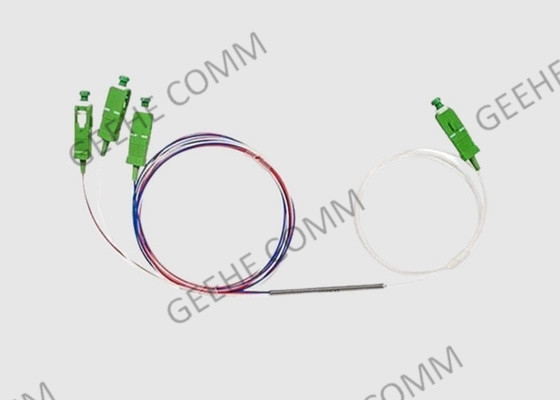

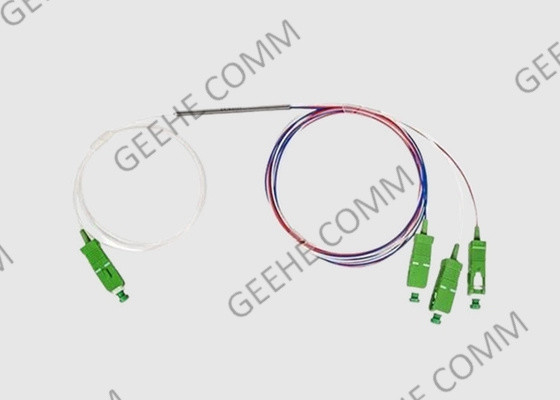

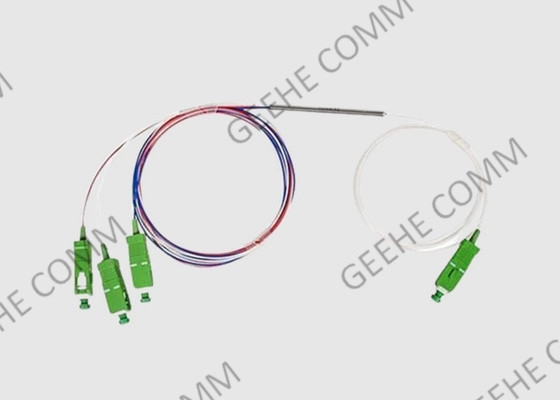

Ultra Size 1525-1565nm 1×3 Wideband Optical Splitter Coupler
Optic Coupler Brief Introduces:
Singlemode (SM) Couplers / Splitters are custom built to our customers’ specifications. We are capable of any coupling ratio from 50:50 to 99:1, build bi-directional assemblies, and utilize our processed connectors for the lowest insertion loss performance. We build metal tubes, ABS boxes, plastic modules, and LGX type assemblies with any major connector type.
FBT couplers base on the standard dual-window type. With very low PDL of less than 0.06 dB for coupling ratio 50/50, they are suited for applications where the PDL of the system is critical. The Return Loss, UPC ≥65DB, APC ≥50DB with High connectivity.
1 × 2 Fiber Optic Coupler Features& Benefits:
1) Low loss&Low WDL
2) Ultra-low PDL
3) Ultra wide operation bandwidth +/-80nm
4) High directivity
5) Mini-size package
6) Dual operating window
7) Compact package
Dual Window Wide Brand Coupler Specification and parameter:
|
1X3 33x33x33 1525-1565nm WBC Technical Specification for procurement of optical splitters Version:A/0 |
|||||||||
| Parameters | Unit | Specifications | |||||||
| Working Wavelength Range | nm | 1525-1565 | |||||||
| Insertion Loss (Over the whole wavelength range) | dB | 4.6-5.2 | |||||||
| Optical Return Loss | Min | dB | 50 | ||||||
| Uniformity | Max | dB | 0.6 | ||||||
| Directivity | Min | dB | 55 | ||||||
| Polarization Dependent Loss | Max | dB | 0.2 | ||||||
| Temperature Dependent Loss | Max | dB | 0.15 | ||||||
| Operating Temperature | ℃ | -5~ 75 | Max. Optical Power | mw | 500 | ||||
| Storage Temperature | ℃ | -40 ~ 85 | Operating Humidity | % | 0 ~ 90 | ||||
| Reliability Requirement | Compliant with GR-1209-CORE and GR-1221-CORE | ||||||||
| Packaging Specifications | |||||||||
| Package Dimension | Φ4.0×L60 | Fiber Length | 1 ±0.1m | ||||||
| Fiber Type | Corning SMF28 ,or other fiber | ||||||||
| Pigtail type | 250um bare fiber with 900um loose tube | ||||||||
| Fiber color code | None. | ||||||||
| Connectors | None. | ||||||||
|
Notes: |
|||||||||
1×3 Fiber Optic Coupler Application:
FTTx Systems
LAN, WAN, and Metro Networks
Analog/Digital Passive Optical Networks
Long-haul telecommunication
Mini sizes transmitter/receiver module
Optical communication system
Optical communication system
Optical power distribution system
