Product Details:
|
| Model Name: | 1x3 FBT Couplers Splitter | Optical Coupler Configuration Type: 1x2 Operating Wavelength: | 1310nm,1490nm,1550 Nm |
|---|---|---|---|
| Split Ratio: | 50/50,40/60,30/70,20/80,10/90,5/95 Etc | Other Types: | Singlewindow, Dualwindow,Triplewindow |
| Function: | Fiber Distribution | Available Pre-terminated: | LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, And ST/UPC |
| Polarization Alignment: | Slow Axis Or Fast Axis | Fiber Type: | PM Fiber Cable |
| Package Type: | Steel Tube | Configuration Type: | 1×3 |
| Highlight: | 250μm FBT Coupler Splitter,1x3 FBT Coupler Splitter,Singlemode FBT Coupler Splitter |
||

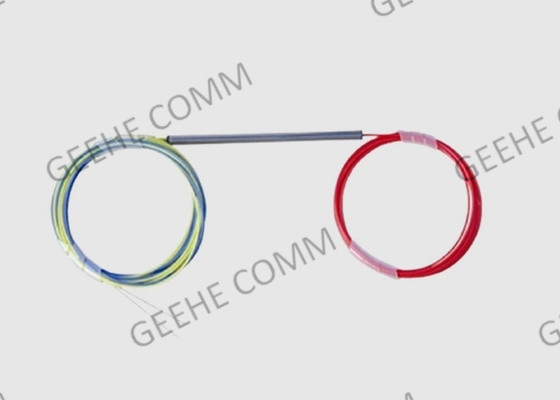

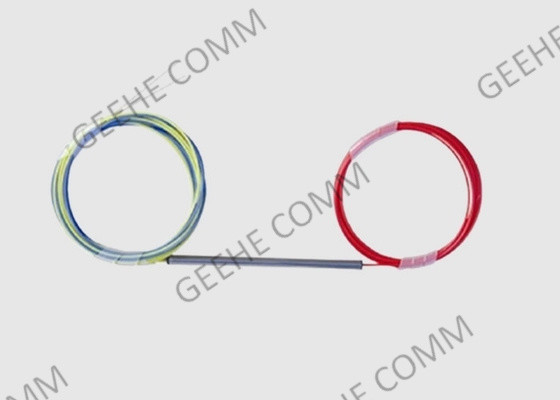

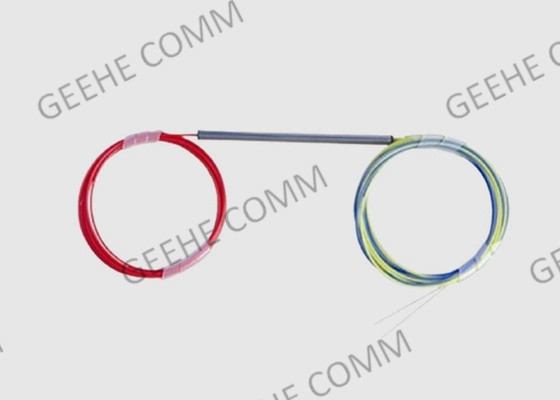

Singlemode Steel Tube Bare Fiber 250μm No Connector 1x3 FBT Couplers Splitter
Optic Coupler Brief Introduces:
1x2 FBT Couplers Splitter, Steel Tube, Bare Fiber 250μm, No Connector, Singlemode
Ultra-Low PDL FBT Coupler is a compact low-loss single-mode component designed for splitting power signals in the 1550 nm or 1310 nm windows.
FBT splitter utilizes precision technology to combine or distribute light from single/multiple inputs to single/multiple outputs bi-directionally. They are designed for power splitting and tapping in telecommunication equipment, CATV network, and test equipment.
1 × 3 Fiber Optic Coupler Features& Benefits:
1) Low loss&Low WDL
2) Ultra-low PDL
3) Ultra wide operation bandwidth +/-80nm
4) High directivity
5) Mini-size package
6) Dual operating window
7) Compact package
Dual Window Wide Brand Coupler Specification and parameter:
1X3 33x33x33 1525-1565nm WBC Technical Specification for procurement of optical splitters Version:A/0 | |||||||||
| Parameters | Unit | Specifications | |||||||
| Working Wavelength Range | nm | 1525-1565 | |||||||
| Insertion Loss (Over the whole wavelength range) | dB | 4.6-5.2 | |||||||
| Optical Return Loss | Min | dB | 50 | ||||||
| Uniformity | Max | dB | 0.6 | ||||||
| Directivity | Min | dB | 55 | ||||||
| Polarization Dependent Loss | Max | dB | 0.2 | ||||||
| Temperature Dependent Loss | Max | dB | 0.15 | ||||||
| Operating Temperature | ℃ | -5~ 75 | Max. Optical Power | mw | 500 | ||||
| Storage Temperature | ℃ | -40 ~ 85 | Operating Humidity | % | 0 ~ 90 | ||||
| Reliability Requirement | Compliant with GR-1209-CORE and GR-1221-CORE | ||||||||
| Packaging Specifications | |||||||||
| Package Dimension | Φ4.0×L60 | Fiber Length | 1 ±0.1m | ||||||
| Fiber Type | Corning SMF28 ,or other fiber | ||||||||
| Pigtail type | 250um bare fiber with 900um loose tube | ||||||||
| Fiber color code | None. | ||||||||
| Connectors | None. | ||||||||
Notes: | |||||||||
1×3 Fiber Optic Coupler Application:
FTTx Systems
LAN, WAN, and Metro Networks
Analog/Digital Passive Optical Networks
Long-haul telecommunication
Mini sizes transmitter/receiver module
Optical communication system
Optical communication system
Optical power distribution system
Wuhan Geehe Services:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Fast Delivery
With skilled and stable workers, all the order turnover is fast than the competitors
5) Factory Audit
We cooperate with famous brands and Japanese customers, with 15 years of factory inspection experience and be familiar with the whole inspect process by SGS
