Product Details:
|
| Model Name: | Singlemode FBT Splitter 1550 0.9mm | Optical Coupler Configuration Type: 1x2 Operating Wavelength: | 1310nm,1490nm,1550 Nm |
|---|---|---|---|
| Split Ratio: | 50/50,40/60,30/70,20/80,10/90,5/95 Etc | Other Types: | Singlewindow, Dualwindow,Triplewindow |
| Function: | Fiber Distribution | Available Pre-terminated: | LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, And ST/UPC |
| Polarization Alignment: | Slow Axis Or Fast Axis | Fiber Type: | PM Fiber Cable |
| Package Type: | Steel Tube | Configuration Type: | 1×2 |
| Highlight: | 9/125 Singlemode FBT Splitter,1x2 FC/APC FBT Splitter,0.9mm 10/90 FBT Splitter |
||

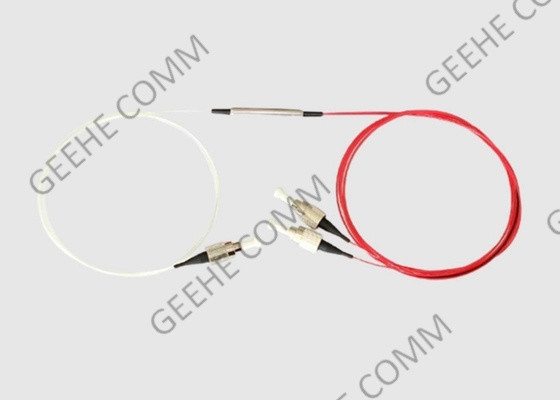

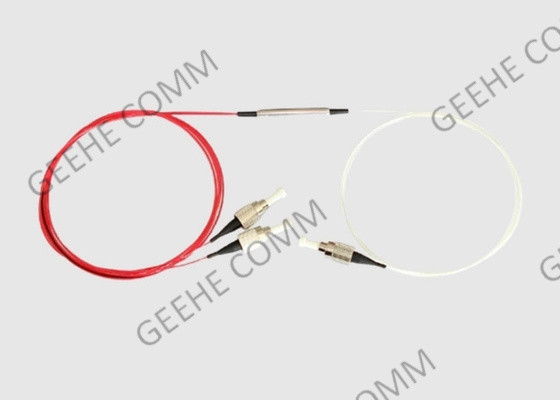

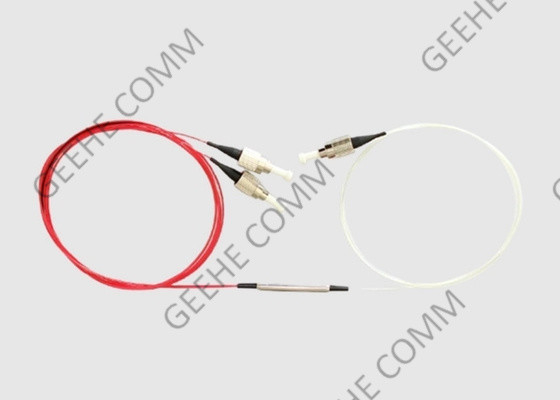

1x2 FC/APC FC/APC 9/125 Singlemode FBT Splitter 1550 0.9mm 10/90 Split Ratio
Optic Coupler Brief Introduces:
Geehe fiber optic couplers (splitters) are available in a wide range of styles and sizes to split or combine light with minimal loss. All splitters are manufactured using a very simple process that produces reliable, low-cost devices. Splitters can be fabricated in custom fiber lengths and with any type of connector.
WDM” (wavelength-division multiplexing), which are passive multiplexers and demultiplexers. These accessories allow for the concentration of signals with different wavelengths on a single fiber-optic cable or, quite conversely, to separate signals with different wavelengths to different outputs on the WDM module.
1 × 2 Fiber Optic Coupler Features& Benefits:
1) Low insertion loss
2) High reflection ratios
3) Selective handling over wavelengths or over the bandwidth
4) High thermal and mechanical stability
5) Split ratios can be selected (1% ... 50%)
6) Good channel-to-channel uniformity
7) Production according to customer specification
Dual Window Wide Brand Coupler Specification and parameter:
|
1×2 980 &1550 Small size WDM Technical Specification for procurement of optical splitters Version:A/0 |
||||||||
| Performance Specifications | Parameters | Specifications | Unit | Note | ||||
| Signa working wavelength Range (λs) | 1528-1569 | nm | ||||||
| Pump working wavelength Range (λp) | 965-985 | nm | ||||||
| Insertion Loss | signal«common@ls | ≤0.20 | dB | |||||
| pump«common@lp | ≤0.20 | dB | ||||||
| Isolation | signal«common@ls | ≥20 | dB | |||||
| pump«common@lp | ≥17 | dB | ||||||
| Polarization Dependent Loss | ≤0.05 | dB | ||||||
| Temperature dependent loss | ≤0.15 | dB | ||||||
| Directivity | ≥55 | dB | ||||||
| OperatingTemperature | -5 to 75 | ℃ | Max. Optical Power | mw | 500 | |||
| Storage Temperature | -40 to 85 | ℃ | Operating Humidity | % | 0 to 90 | |||
| Reliability Requirement | Compliant with GR-1209-CORE and GR-1221-CORE | |||||||
| Packaging Specifications | Parameters | Specifications | ||||||
| Fiber Type | OFS 980-20, or other fiber | |||||||
| Dimension | Φ2.4-L30(mm) | |||||||
| Pigtail Length (All Port) | 1.0 ± 0.1m | |||||||
| lS | Optical Connector (All port) | None | ||||||
|
Notes: 1. The Wavelength Dependent Loss is the difference between maximum insertion loss and minimum insertion loss over the whole working wavelength range 2. Temperature-Dependent Loss is defined as the insertion loss variation over the whole working temperature range. 3. The 1000 hours reliability report for 85°C,85%RH or 75°C,90%RH should be provided. |
||||||||
1×2 Fiber Optic Coupler Application:
1. Long-Haul Tele/Data Communications
2. Fiber Optic Equipment and Systems
3. CATV Systems
4. Local Area Network, PON, and FTTH
5. Fiber Sensors
6. Compliance
Compliance
Telcordia GR-1209-CORE
Telcordia GR-1221-CORE
RoHS
Wuhan Geehe Services:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Fast Delivery
With skilled and stable workers, all the order turnover is fast than the competitors
5) Factory Audit
We cooperate with famous brands and Japanese customers, with 15 years of factory inspection experience and be familiar with the whole inspection process by SGS
