Product Details:
|
| Model Name: | Mini Size 1×4 Fiber Optic Couplers | Operating Wavelength: | 1310nm,1490nm,1550 Nm |
|---|---|---|---|
| Split Ratio: | 50/50,40/60,30/70,20/80,10/90,5/95 Etc | Other Types: | Singlewindow, Dualwindow,Triplewindow |
| Function: | Fiber Distribution | Available Pre-terminated: | LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, And ST/UPC |
| Polarization Alignment: | Slow Axis Or Fast Axis | Fiber Type: | PM Fiber Cable |
| Package Type: | Steel Tube | Configuration Type: | 1×4 |
| Highlight: | 1×4 Fiber Optic Coupler,1310nm Fiber Optic Coupler,1490nm Fiber Optic Coupler |
||

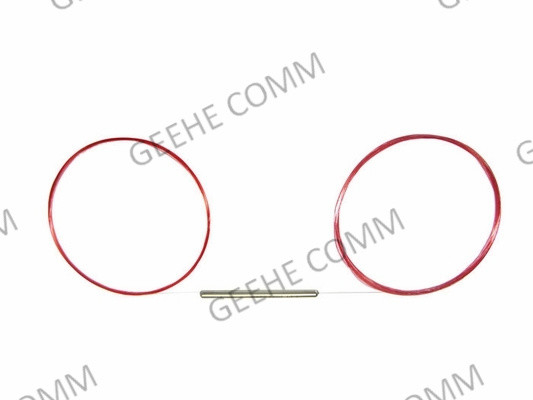

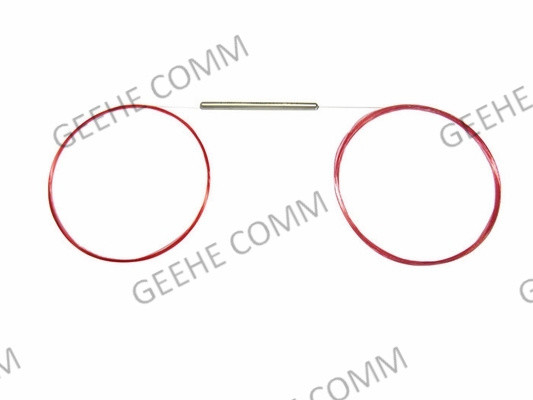

Mini Size 1×4 Fiber Optic Couplers
Optic Coupler Brief Introduces:
FBT Couplers(Splitter) utilizes precision technology to combine or distribute light from single/multiple inputs to single/multiple outputs bi-directionally. They are designed for power splitting and tapping in telecommunication equipment, CATV network, and test equipment.
1×4 FBT coupler is an optical splitter that uses the Fused Biconic Taper (FBT) technique. The FBT technique is a well-known industry technology for splitting optical power and/or splitting wavelengths. The fused fiber coupler is created through a process of fusing two bare fibers like an “X” and pulling the fused section to achieve the desired optical characteristics. FBT couplers are fused in tree structures to combine optical splitting effects to create power ratio output of 1×N or 2×N, where “N” is the number of desired outputs.
1× 2 Fiber Optic Coupler Features& Benefits:
1) Low insertion loss
2) Low PDL
3) Compact design
4) Good channel-to-channel uniformity
5) High directivity
6) High reliability and stability
7) Various coupling ratios are available
1×4 FBT Coupler Specification and parameter:
|
1X4 25x25x25x25 1525-1565nm small size WBC Technical Specification for procurement of optical splitters Version:A/0 |
|||||||||
| Parameters | Unit | Specifications | |||||||
| Working Wavelength Range | nm | 1525-1565 | |||||||
| Insertion Loss (Over the whole wavelength range) | dB | 6.0-6.8 | |||||||
| Optical Return Loss | Min | dB | 50 | ||||||
| Uniformity | Max | dB | 0.6 | ||||||
| Directivity | Min | dB | 55 | ||||||
| Polarization Dependent Loss | Max | dB | 0.2 | ||||||
| Temperature Dependent Loss | Max | dB | 0.15 | ||||||
| Operating Temperature | ℃ | -5~ 75 | Max. Optical Power | mw | 500 | ||||
| Storage Temperature | ℃ | -40 ~ 85 | Operating Humidity | % | 0 ~ 90 | ||||
| Reliability Requirement | Compliant with GR-1209-CORE and GR-1221-CORE | ||||||||
| Packaging Specifications | |||||||||
| Package Dimension | Φ3.0×L48 or Φ3.0×L45 | Fiber Length | 1 ±0.1m | ||||||
| Fiber Type | Corning SMF28 ,or other fiber | ||||||||
| Pigtail type | 250um bare fiber | ||||||||
| Fiber color code | None. | ||||||||
| Connectors | None. | ||||||||
|
Notes: 1. Temperature-Dependent Loss is defined as the insertion loss variation over the whole working temperature range. 2. The 1000 hours reliability report for 85°C, 85%RH or 75°C, 90%RH should be provided.
|
|||||||||
Ordering Information:
| WBC- | X- | X2- | 35- | XX- | X- | XX- | XX- | X |
| P: Premium A: Grade A X: Customization |
12:1x2 22:2x2 |
35:1310/1550nm | 01: 01:99 02: 02:98 …… 50: 50:50 |
1:1 m x: Customization |
25:250μM Fiber 09:900μM loose fiber | SC: SC/UPC SA: SC/APC 00: no connector |
A: A B: B C:C |
|
| Grade | Port number | Operating wavelength | Coupling ratio | Fiber length | Fiber type | Connect type | Dimension |
EX:WBC-P-12-35-50-1-09-0-B
1×2 Fiber Optic Coupler Application:
FTTx Systems
LAN, WAN, and Metro Networks
Analog/Digital Passive Optical Networks
Long-haul telecommunication
Mini sizes transmitter/receiver module
Optical communication system
Optical communication system
Optical power distribution system
Fiber optic sensors
Optical test system
Wuhan Geehe Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Fast Delivery
With skilled and stable workers, all the order turnover is fast than the competitors
5) Factory Audit
We cooperate with famous brands and Japanese customers, with 15 years of factory inspection experience and be familiar with the whole inspect process by SGS
