Product Details:
|
| Model Name: | Fiber Optic Patch Panel | Structure: | 19'' Rack Mounted |
|---|---|---|---|
| Rack Material: | Cold Rolled Steel, AL | Rack Color: | Black, White, Grey |
| Height: | 1U, 2U, 3U, 4U, 8U | Port: | 6, 12, 24, 48, 72, 96, 144 |
| Connector: | SC LC FC ST | Thickness: | 0.8mm,1.0mm, 1.2mm |
| Dimensions (L×W×H) Mm: | 1×32：141×115×18 | Feature: | Waterproof Dustproof |
| Highlight: | 24 Core fc fiber patch panel,3U Fiber Optic Patch Panel,3U fc fiber patch panel |
||

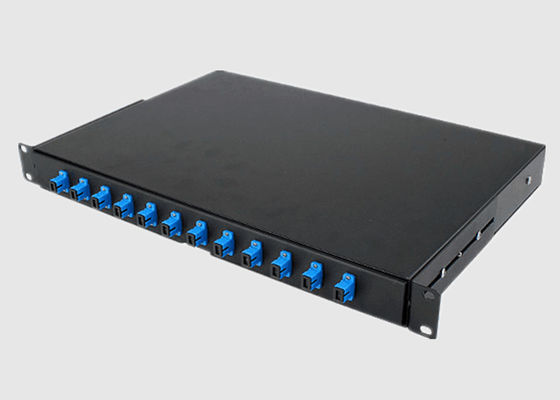

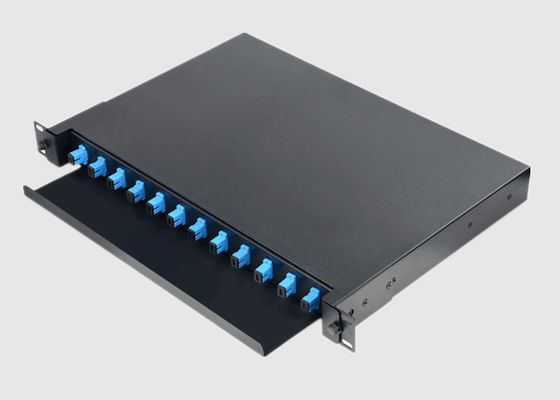

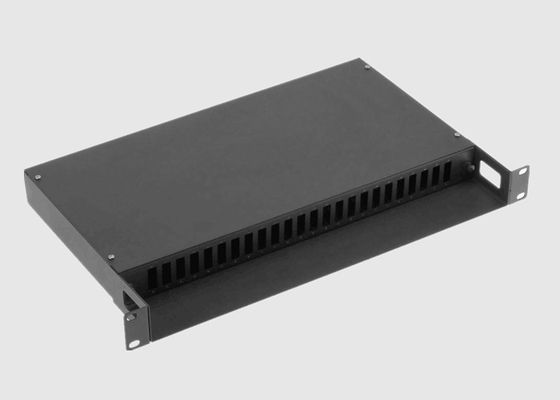

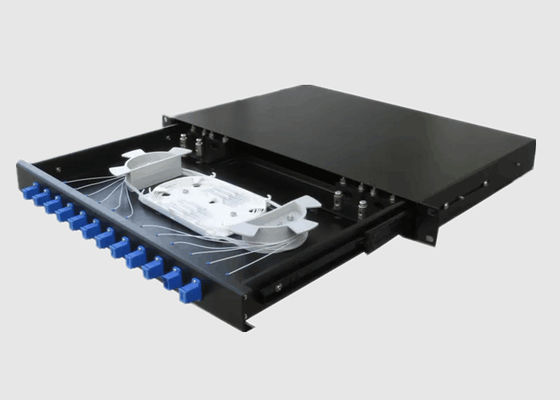

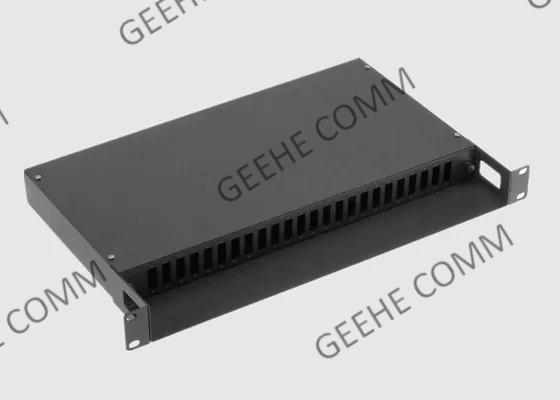

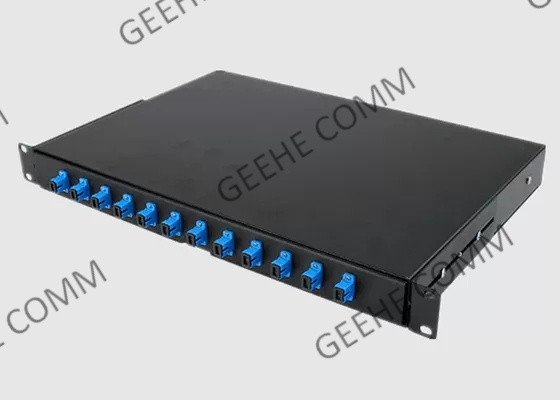

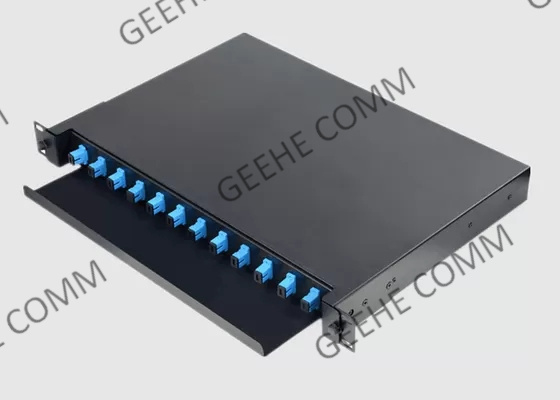

12-24 Core SC/FC/ST/LC ODF Rack Mount Splicing Termination Box Fiber Optic Patch Panel
Fast Overview:
1.MTP/MPO cassette can be loaded 6pcs LC quad adapter & 2pcs MTP/MPO adapter, max. 24fibers.
2.MTP/MPO cassette with PC material transparent cover, also easy to observe and maintenance
3.UP to 288 Fiber LC Ports in 3U
4.Flexibility to Mix Adapter Plates with Cassettes in Patch Panel
5.Flat Front Panel for Optimal Cable Routing
6.Easily Accessible MPO/MTP Ports for Connection to Trunk Cable
7.Compliant to IEC-61754-7, EIA/TIA-604-5 & RoHS
8. Factory terminated and tested
Benefit& Feature:
Port identification with clear visible labeling
Superior cable management and access
Installation with tool-less removable drawers and lightweight housings
Pre-term installation with simple fixed shelves and cassettes
Back metal door fixed by revolving buckle, easy to open and manage cable
Roomy space ensure fiber bent ratio
Application:
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV
Optic communication system
Specificaiton&Technology Parameters :
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 | ||
| Operating Wavelength(nm) | SDWC:1310&1550；STWC:1310,1490&1550 | ||||||||||
| Port Wavelength Range(nm) | 1310 ±40,1490 ±10 and 1550 ±40 | ||||||||||
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 | ||
| Uniformity (dB) | 0.6 | 1 | 1.6 | 2 | 1.8 | 0.8 | 1.2 | 1.8 | 2.2 | ||
| PDL@ 1310/1550 nm (dB) | ≤0.3 | ||||||||||
| Input Power (mW) | 250max | ||||||||||
| Operating Temperature (℃) | -40~+85℃ | ||||||||||
| Storage Temperature (℃) | -40~+85℃ | ||||||||||
| Fiber Type | Corning G657A1, 900μm, 2mm, 3mm Loose Tube | ||||||||||
| Dimensions(L×W×H) (mm) | 100×80×10,141×115×18, On request | ||||||||||
* The above specification exclusive connector
19 Inch Rack Specification:
| 19 Inch Rack | LGX | ||||||||||
| Configuration | 1U | 2U | 1U | 2U | |||||||
| Packing Dimensions(mm) | 482.6×278×44 | 482.6×278×88 | 129×125×29 | 129×125×58 | |||||||
| Installation Dimensions (mm) | 462.7×11.0(4-Φ6) | 462.7×27.5(6-Φ6) | 118(2-Φ6) | 118×29.2(2-Φ7) | |||||||
Ordering Information:
| WBC- | X- | X2- | 35- | XX- | X- | XX- | XX- | X | ||
| P: Premium A: Grade A X: Follow Customer's Requirements |
13:1x3 14:1X4 … 232:2 X32 |
35:1310/1550nm | 01: 01:99 02: 02:98 …… 50: 50:50 |
1:1 m x: Follow Customer's Requirements |
25:250μM Fiber 09:900μM Loose Fiber |
SC: SC/UPC SA: SC/APC 00:no connect |
D:D 1U: J1 2U: J2 |
|||
| Grade | Port Number | Operation Wavelength | Coupling Ratio | Fiber Length | Fiber Type | Connector Type | Dimension | |||
