Product Details:
|
| Model Name: | Fiber Optic Patch Panel Rack Mount 1U | Structure: | Cold Rolled Steel |
|---|---|---|---|
| No.of Adapter/Port: | 24 | Adapter Type: | SC Duplex (Blue) |
| Height: | 1U, 2U, 3U, 4U, 8U | Ports: | 6, 12, 24, 48, 72,96, 144 |
| Mounting Adjustment Range: | 50mm | Material Of Plate: | 1.5mm SPCC (Black Coating) |
| Material Coating: | Powder Coating | 1U Dimensions (Hxwxd): | 483×44×230mm |
| Splice Capacity: | 24 Fibers | RoHS Compliancy Status: | Compliant |
| Highlight: | Rack Mount 1U Patch Panel,SC UPC Adapter 1U Patch Panel,24 Port Rack Mount Patch Panel |
||

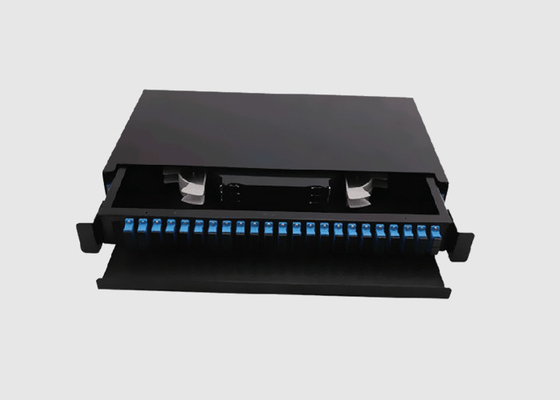

24 Port SC UPC Adapter Fiber Optic Patch Panel Rack Mount 1U for Data Center
Basic Information:
Geehe designs and manufactures unique and robust patch panels. Our patch panels use various technologies for easy access and organisation: these include pivots, sliding on rail and easy sliding. Many of our panels are also modular, to further aid the user.
The panels are 1U as standard, with integrated strength member tie positions and supplied with a fibre management (FOM) kit including, splice holder, clips and cable glands.
Fiber Patch Panels 24 port Benefit& Feature:
1) Sliding patch panel for easy rework and maintenance
2) Front panel equipped with SC,LC, FC, Adaptors
3) Connection point to fix fiber cassette
4) Cold rolled steel constructional structure
5) Fixed splice tray
Fiber Patch Panels 24 port Application:
1) Telecommunications networks
2) FTTH
3) LAN, WAN, CATV netoworks
4) Active device termination
5) CCTV
6) IPTV
Specificaiton&Technology Parameters :
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 | ||
| Operating Wavelength(nm) | SDWC:1310&1550；STWC:1310,1490&1550 | ||||||||||
| Port Wavelength Range(nm) | 1310 ±40,1490 ±10 and 1550 ±40 | ||||||||||
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 | ||
| Uniformity (dB) | 0.6 | 1 | 1.6 | 2 | 1.8 | 0.8 | 1.2 | 1.8 | 2.2 | ||
| PDL@ 1310/1550 nm (dB) | ≤0.3 | ||||||||||
| Input Power (mW) | 250max | ||||||||||
| Operating Temperature (℃) | -40~+85℃ | ||||||||||
| Storage Temperature (℃) | -40~+85℃ | ||||||||||
| Fiber Type | Corning G657A1, 900μm, 2mm, 3mm Loose Tube | ||||||||||
| Dimensions(L×W×H) (mm) | 100×80×10,141×115×18,On request | ||||||||||
* The above specification exclusive connector
19 Inch Rack Specification:
| 19 Inch Rack | LGX | ||||||||||
| Configuration | 1U | 2U | 1U | 2U | |||||||
| Packing Dimensions(mm) | 482.6×278×44 | 482.6×278×88 | 129×125×29 | 129×125×58 | |||||||
| Installation Dimensions (mm) | 462.7×11.0(4-Φ6) | 462.7×27.5(6-Φ6) | 118(2-Φ6) | 118×29.2(2-Φ7) | |||||||
Ordering Information:
| WBC- | X- | X2- | 35- | XX- | X- | XX- | XX- | X | ||
| P: Premium A: Grade A X: Follow Customer's Requirements |
13:1x3 14:1X4 … 232:2 X32 |
35:1310/1550nm | 01: 01:99 02: 02:98 …… 50: 50:50 |
1:1 m x: Follow Customer's Requirements |
25:250μM Fiber 09:900μM Loose Fiber |
SC: SC/UPC SA: SC/APC 00:no connect |
D:D 1U: J1 2U: J2 |
|||
| Grade | Port Number | Operation Wavelength | Coupling Ratio | Fiber Length | Fiber Type | Connector Type | Dimension | |||
Wuhan Geehe Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) High-quality Wire Rod
Excellent PVC wire, good strength, and tenacity, long lifespan
Contact Person: Ms. Yu Ying
Tel: +86 15727094728
