Product Details:
|
| Model Name: | Fiber Patch And Splice Panel | Structure: | Cold Rolled Steel |
|---|---|---|---|
| No.of Adapter/Port: | 24 | Adapter Type: | SC Duplex (Blue) |
| Height: | 1U, 2U, 3U, 4U, 8U | Ports: | 6, 12, 24, 48, 72,96, 144 |
| Mounting Adjustment Range: | 50mm | Material Of Plate: | 1.5mm SPCC (Black Coating) |
| Material Coating: | Powder Coating | 1U Dimensions (Hxwxd): | 483 (H)×44 (H)×380mm(W) |
| Splice Capacity: | 24 Fibers | RoHS Compliancy Status: | Compliant |
| Highlight: | Slide Out 1U Fiber Splice Panel,3 Adapter Fiber Patch And Splice Panel,Slide Out 1U Fiber Patch Panel |
||

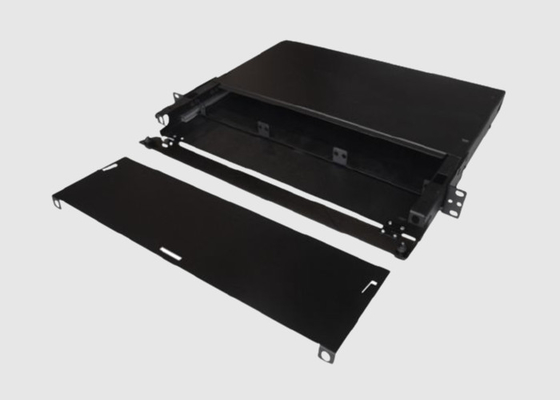

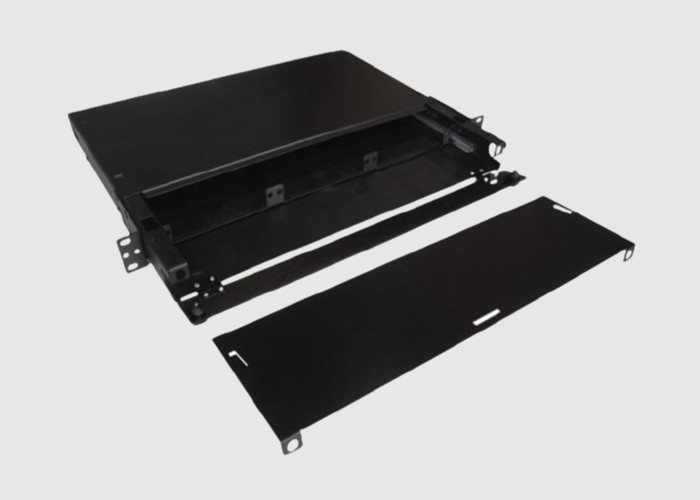

Fiber Patch and Splice Panel Slide-Out 1U 3 Adapter Panel Capacity
Basic Information:
This rack mounts fiber patch panel is a 1 Rack Unit (1RU), 3 termination panels, 19" and 23" rack mount fiber distribution unit designed to support patching and splicing in one unit, up to 36 fibers. The fiber housing has a slide-out master panel with an integrated tray stop to prevent overextension of fiber cables. The drawer slides are nylon which makes the drawer slide in and out easier. The fiber enclosure also has a two-piece top and a swell latch door to allow for easy access to the adapter panels. The FB23-5845RT3 is one of a family of units that support fiber terminations in rack mount applications.
This rack mount fiber optic patch panel includes fiber optical OS2 Singlemode Pigtails (3 Meter), LGX ST adapter panels, and three 24 fiber splice trays. It also includes a smooth sliding drawer-type pull-out system for easy installation and maintenance.
Fiber Patch Panels 24 port Benefit&Feature:
Fiber Patch Panels 24 port Application:
1) Telecommunications networks
2) FTTH
3) LAN, WAN, CATV netoworks
4) Active device termination
5) CCTV
6) IPTV
Specificaiton&Technology Parameters :
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 | ||
| Operating Wavelength(nm) | SDWC:1310&1550；STWC:1310,1490&1550 | ||||||||||
| Port Wavelength Range(nm) | 1310 ±40,1490 ±10 and 1550 ±40 | ||||||||||
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 | ||
| Uniformity (dB) | 0.6 | 1 | 1.6 | 2 | 1.8 | 0.8 | 1.2 | 1.8 | 2.2 | ||
| PDL@ 1310/1550 nm (dB) | ≤0.3 | ||||||||||
| Input Power (mW) | 250max | ||||||||||
| Operating Temperature (℃) | -40~+85℃ | ||||||||||
| Storage Temperature (℃) | -40~+85℃ | ||||||||||
| Fiber Type | Corning G657A1, 900μm, 2mm, 3mm Loose Tube | ||||||||||
| Dimensions(L×W×H) (mm) | 100×80×10,141×115×18,On request | ||||||||||
* The above specification exclusive connector
19 Inch Rack Specification:
| 19 Inch Rack | LGX | ||||||||||
| Configuration | 1U | 2U | 1U | 2U | |||||||
| Packing Dimensions(mm) | 482.6×278×44 | 482.6×278×88 | 129×125×29 | 129×125×58 | |||||||
| Installation Dimensions (mm) | 462.7×11.0(4-Φ6) | 462.7×27.5(6-Φ6) | 118(2-Φ6) | 118×29.2(2-Φ7) | |||||||
Ordering Information:
| WBC- | X- | X2- | 35- | XX- | X- | XX- | XX- | X | ||
| P: Premium A: Grade A X: Follow Customer's Requirements |
13:1x3 14:1X4 … 232:2 X32 |
35:1310/1550nm | 01: 01:99 02: 02:98 …… 50: 50:50 |
1:1 m x: Follow Customer's Requirements |
25:250μM Fiber 09:900μM Loose Fiber |
SC: SC/UPC SA: SC/APC 00:no connect |
D:D 1U: J1 2U: J2 |
|||
| Grade | Port Number | Operation Wavelength | Coupling Ratio | Fiber Length | Fiber Type | Connector Type | Dimension | |||
Wuhan Geehe Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) High-quality Wire Rod
Excellent PVC wire, good strength, and tenacity, long lifespan
