Product Details:
|
| Model Name: | Fibre Optic Patch Panel Wall Mount | Structure: | 19'' Rack Mounted |
|---|---|---|---|
| Rack Material: | Cold Rolled Steel, AL | Rack Color: | Black, White, Grey,or OEM |
| Height: | 1U, 2U, 3U, 4U, 8U | Ports: | 6, 12, 24, 48, 72, 96, 144 |
| Connector: | SC LC FC ST | Thickness: | 0.8mm,1.0mm, 1.2mm |
| Max. Fiber Cores: | 12 | Dimensions (Hxwxd): | 48.2×27.8×44mm |
| Highlight: | 19 Inch 1U SC Fiber Patch Panel,19 Inch 1U Wall Mount Fiber Patch Panel,1U 24 port sc fiber patch panel |
||

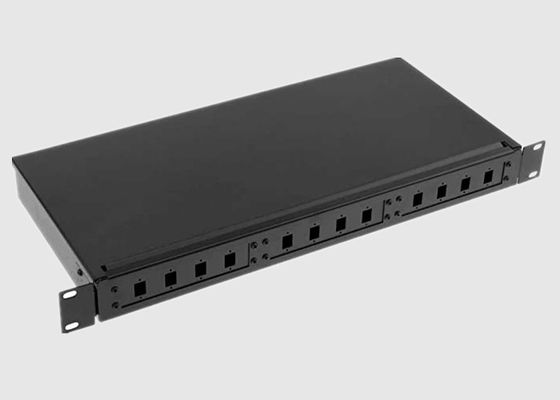

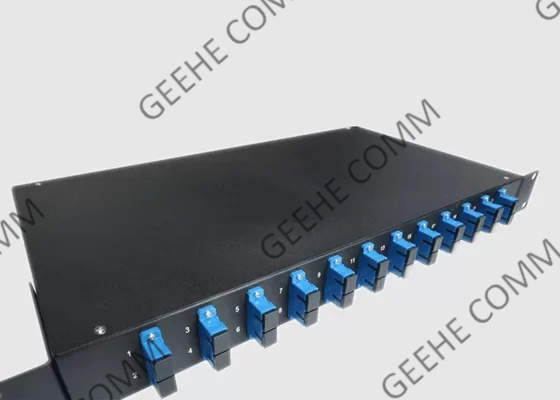

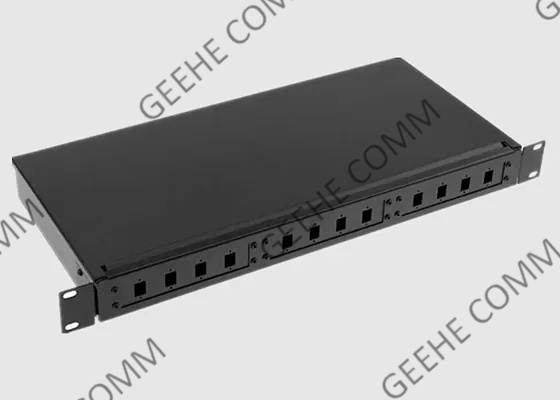

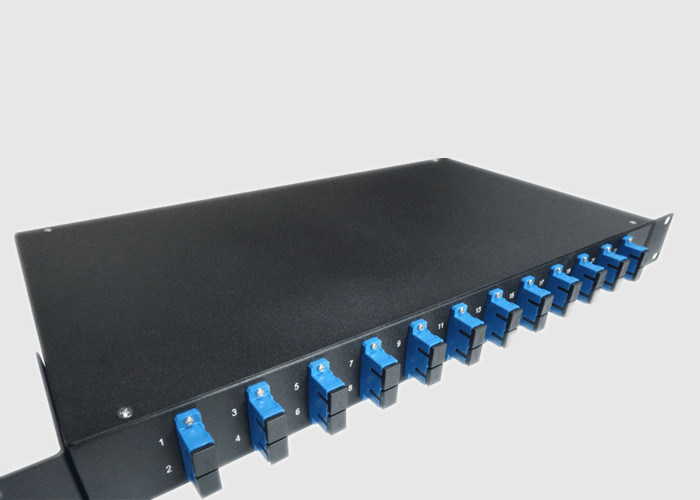

19 Inch 24 Port SC Connector 1U Fibre Optic Patch Panel Wall Mount
Basic Information:

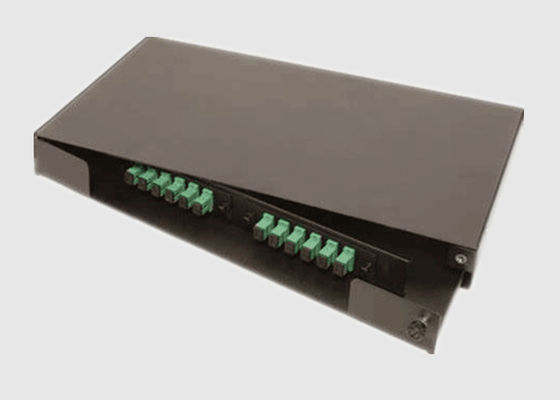

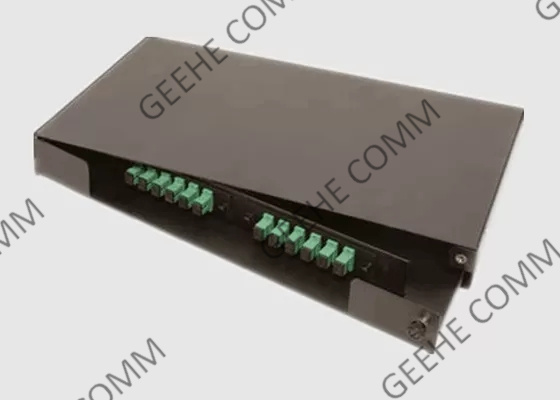

A 19-inch Sliding Fiber Optic Patch panel has been designed to facilitate internal Fiber management and also to maximize Fiber density in 1U, 2U, and 4U height increments.
The sliding tray provides easy access to Fiber cabling. The panel supports in 1×4,1×8,1×16,1×32,1×64,2×4,2×8,2×16,2×32 configurations in SC Simplex, SC Duplex, ST/FC (D cut out), LC Duplex (SC simplex footprint), LC Quad (SC Duplex footprint). Versions are available with MTP MPO cut-outs on the back for use with pre-terminated MTP/MPO trunks, related fiber accessories and pigtails are optional.
Patch Panel Wall Mount Benefit& Feature:
Patch Panel Wall Mount Application:
Specificaiton&Technology Parameters :
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 | ||
| Operating Wavelength(nm) | SDWC:1310&1550；STWC:1310,1490&1550 | ||||||||||
| Port Wavelength Range(nm) | 1310 ±40,1490 ±10 and 1550 ±40 | ||||||||||
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 | ||
| Uniformity (dB) | 0.6 | 1 | 1.6 | 2 | 1.8 | 0.8 | 1.2 | 1.8 | 2.2 | ||
| PDL@ 1310/1550 nm (dB) | ≤0.3 | ||||||||||
| Input Power (mW) | 250max | ||||||||||
| Operating Temperature (℃) | -40~+85℃ | ||||||||||
| Storage Temperature (℃) | -40~+85℃ | ||||||||||
| Fiber Type | Corning G657A1, 900μm, 2mm, 3mm Loose Tube | ||||||||||
| Dimensions(L×W×H) (mm) | 100×80×10,141×115×18,On request | ||||||||||
* The above specification exclusive connector
19 Inch Rack Specification:
| 19 Inch Rack | LGX | ||||||||||
| Configuration | 1U | 2U | 1U | 2U | |||||||
| Packing Dimensions(mm) | 482.6×278×44 | 482.6×278×88 | 129×125×29 | 129×125×58 | |||||||
| Installation Dimensions (mm) | 462.7×11.0(4-Φ6) | 462.7×27.5(6-Φ6) | 118(2-Φ6) | 118×29.2(2-Φ7) | |||||||
Ordering Information:
| WBC- | X- | X2- | 35- | XX- | X- | XX- | XX- | X | ||
| P: Premium A: Grade A X: Follow Customer's Requirements |
13:1x3 14:1X4 … 232:2 X32 |
35:1310/1550nm | 01: 01:99 02: 02:98 …… 50: 50:50 |
1:1 m x: Follow Customer's Requirements |
25:250μM Fiber 09:900μM Loose Fiber |
SC: SC/UPC SA: SC/APC 00:no connect |
D:D 1U: J1 2U: J2 |
|||
| Grade | Port Number | Operation Wavelength | Coupling Ratio | Fiber Length | Fiber Type | Connector Type | Dimension | |||
Wuhan Geehe Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) High-quality Wire Rod
Excellent PVC wire, good strength, and tenacity, long lifespan
