Product Details:
|
| Model Name: | 48 Port Fiber Optic Patch Panel | Structure: | 19'' Rack Mounted |
|---|---|---|---|
| Rack Material: | Zinc-plated Cold Roll Steel Sheet | Rack Color: | Black, White, Grey,or OEM |
| Height: | 1U, 2U, 3U, 4U, 8U | Ports: | 6, 12, 24, 48, 72, 96, 144 |
| Connector: | SC LC FC ST | Thickness: | 0.8mm,1.0mm, 1.2mm |
| Max. Fiber Cores: | 24 | 2U Dimensions (Hxwxd): | 48.2×27.8×88mm |
| Highlight: | 2U 48 Port Fiber Optic Patch Panel,SC Adapter 48 port fiber patch panel,2U wall mount fiber patch panel |
||

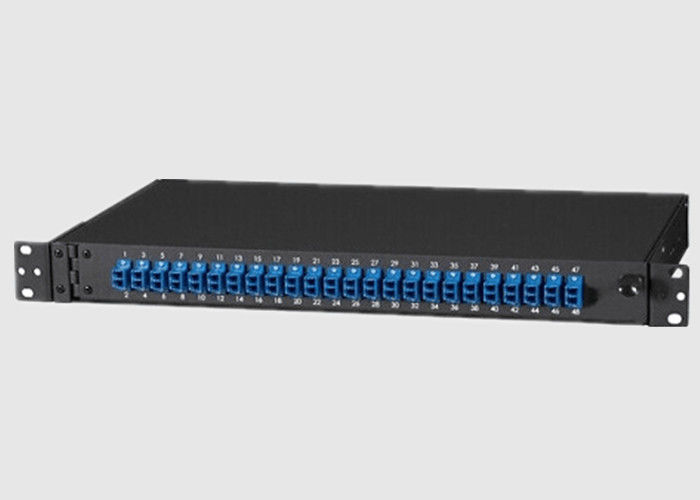

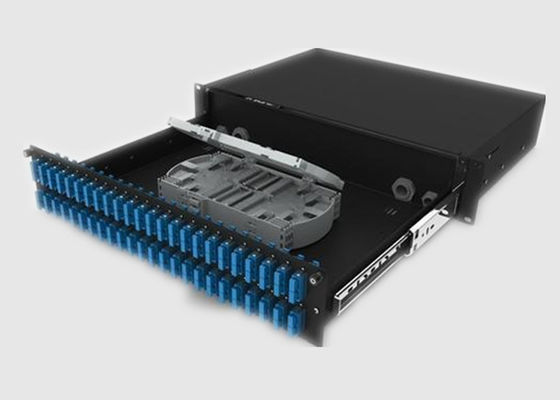

2U SC Adapter Cold Rolled Wall Mount 48 Port Fiber Optic Patch Panel
2U Patch Panel Sell Points:
1) Made by cold roll steel, electrostatic powder spraying
2) Easy to open and close by using the button
3) Field-termination with high-accessibility sliding and tilting drawers
4) Up to 72 LC Duplex or MPO adapters per 2U
5) With PVC transparent door at front and back, easy to monitor
6) Can adjust depth when fixing the patch panel into the cabinet
7) Installation with tool-less removable drawers and lightweight housings
8) Port identification with clear visible labeling
2U Patch Panel Wall Mount Benefit& Feature:
1) High-Density Enclosure Panels for Fiber Cassettes
2) Compatibility with fiber installations
1U enclosure panel for up to 5 cassettes (up to 60 Duplex LC ports)
2U enclosure panel for up to 14 cassettes (up to 168 Duplex LC ports)
Cassettes are interchangeable between fiber enclosure panels
3) Accepts versatile connector / Adaptor options
4) Horizontal or Vertical Mounting
5) Internal fibre clips for managing incoming cables and fibre pigtails
2U Patch Panel Wall Mount Application:
1) Telecommunication
2) CATV
3) LAN & WAN
5) Network
6) Broadband
Specificaiton&Technology Parameters :
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 | ||
| Operating Wavelength(nm) | SDWC:1310&1550；STWC:1310,1490&1550 | ||||||||||
| Port Wavelength Range(nm) | 1310 ±40,1490 ±10 and 1550 ±40 | ||||||||||
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 | ||
| Uniformity (dB) | 0.6 | 1 | 1.6 | 2 | 1.8 | 0.8 | 1.2 | 1.8 | 2.2 | ||
| PDL@ 1310/1550 nm (dB) | ≤0.3 | ||||||||||
| Input Power (mW) | 250max | ||||||||||
| Operating Temperature (℃) | -40~+85℃ | ||||||||||
| Storage Temperature (℃) | -40~+85℃ | ||||||||||
| Fiber Type | Corning G657A1, 900μm, 2mm, 3mm Loose Tube | ||||||||||
| Dimensions(L×W×H) (mm) | 100×80×10,141×115×18,On request | ||||||||||
* The above specification exclusive connector
19 Inch Rack Specification:
| 19 Inch Rack | LGX | ||||||||||
| Configuration | 1U | 2U | 1U | 2U | |||||||
| Packing Dimensions(mm) | 482.6×278×44 | 482.6×278×88 | 129×125×29 | 129×125×58 | |||||||
| Installation Dimensions (mm) | 462.7×11.0(4-Φ6) | 462.7×27.5(6-Φ6) | 118(2-Φ6) | 118×29.2(2-Φ7) | |||||||
Ordering Information:
| WBC- | X- | X2- | 35- | XX- | X- | XX- | XX- | X | ||
| P: Premium A: Grade A X: Follow Customer's Requirements |
13:1x3 14:1X4 … 232:2 X32 |
35:1310/1550nm | 01: 01:99 02: 02:98 …… 50: 50:50 |
1:1 m x: Follow Customer's Requirements |
25:250μM Fiber 09:900μM Loose Fiber |
SC: SC/UPC SA: SC/APC 00:no connect |
D:D 1U: J1 2U: J2 |
|||
| Grade | Port Number | Operation Wavelength | Coupling Ratio | Fiber Length | Fiber Type | Connector Type | Dimension | |||
