Product Details:
|
| Model Name: | Fibre Optic Patch Panel Wall Mount | Structure: | Cold Rolled Steel |
|---|---|---|---|
| Rack Material: | 50mm | Rack Color: | Black, White, Grey,or OEM |
| Height: | 1U, 2U, 3U, 4U, 8U | Ports: | 6, 12, 24, 48, 72, 96, 144 |
| Mounting Adjustment Range: | 50mm | Thickness: | 0.8mm,1.0mm, 1.2mm |
| Material Coating: | Powder Coating | 1U Dimensions (Hxwxd): | 48.2×27.8×44mm |
| Splice Capacity: | 24 Fibers | Connector Capacity: | 12pcs SC Or 24pcs LC Connectors |
| Highlight: | 1.2mm 12 port fiber patch panel,1.2mm sc duplex patch panel,1.2mm multimode fiber patch panel |
||

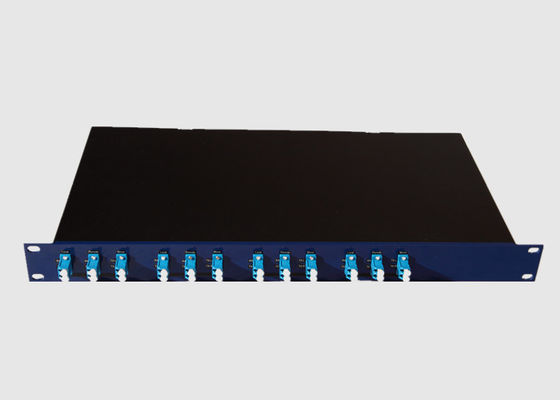

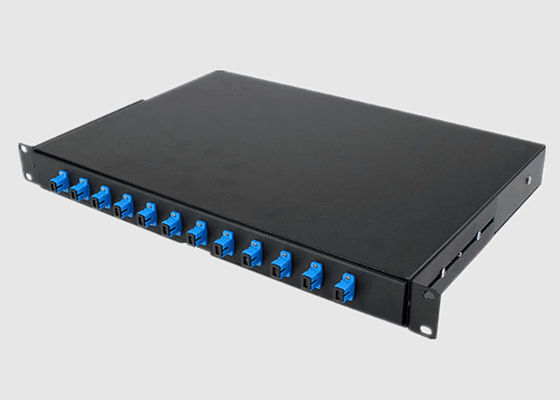

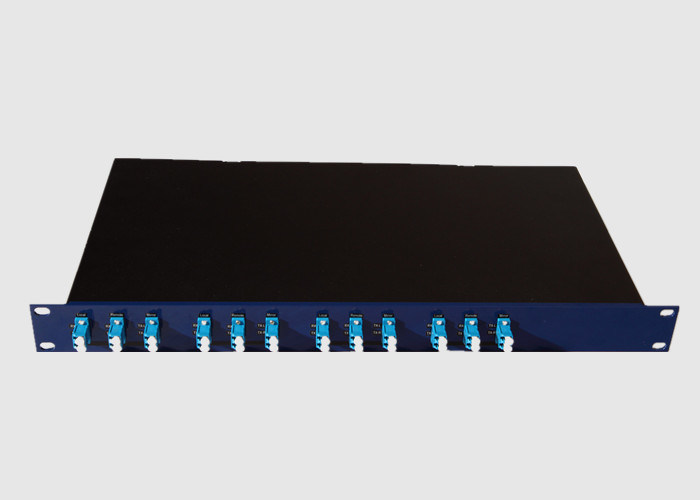

Black Color Multimode 1.2mm SC Duplex 12-Port Fiber Optic Patch Panel
Basic Information:
Geehe 12 port Fiber Optic Patch Panel SC LC 19 Inch is designed to install 12 pcs SC LC ports fiber optic adapters and pigtails, It is a drawer type which makes fiber installation & storage easy. Suitable to both single-mode and multimode fiber cablings.
The box is Rack Mounted, which is convenient to install and dismantle, the indoor type is of excellent seal performance, which could prevent water from entering effectively. Customized fiber ports as per your specific requirements.
Patch Panel Wall Mount Benefit& Feature:
Patch Panel Wall Mount Application:
The Fiber Patch Panel ( 1- 96 core fiber optic termination box) can be used on the terminal of the optical cables, different types, and structures, the diameter of which is within a 20mm tray.
Specificaiton&Technology Parameters :
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 | ||
| Operating Wavelength(nm) | SDWC:1310&1550；STWC:1310,1490&1550 | ||||||||||
| Port Wavelength Range(nm) | 1310 ±40,1490 ±10 and 1550 ±40 | ||||||||||
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 | ||
| Uniformity (dB) | 0.6 | 1 | 1.6 | 2 | 1.8 | 0.8 | 1.2 | 1.8 | 2.2 | ||
| PDL@ 1310/1550 nm (dB) | ≤0.3 | ||||||||||
| Input Power (mW) | 250max | ||||||||||
| Operating Temperature (℃) | -40~+85℃ | ||||||||||
| Storage Temperature (℃) | -40~+85℃ | ||||||||||
| Fiber Type | Corning G657A1, 900μm, 2mm, 3mm Loose Tube | ||||||||||
| Dimensions(L×W×H) (mm) | 100×80×10,141×115×18,On request | ||||||||||
* The above specification exclusive connector
19 Inch Rack Specification:
| 19 Inch Rack | LGX | ||||||||||
| Configuration | 1U | 2U | 1U | 2U | |||||||
| Packing Dimensions(mm) | 482.6×278×44 | 482.6×278×88 | 129×125×29 | 129×125×58 | |||||||
| Installation Dimensions (mm) | 462.7×11.0(4-Φ6) | 462.7×27.5(6-Φ6) | 118(2-Φ6) | 118×29.2(2-Φ7) | |||||||
Ordering Information:
| WBC- | X- | X2- | 35- | XX- | X- | XX- | XX- | X | ||
| P: Premium A: Grade A X: Follow Customer's Requirements |
13:1x3 14:1X4 … 232:2 X32 |
35:1310/1550nm | 01: 01:99 02: 02:98 …… 50: 50:50 |
1:1 m x: Follow Customer's Requirements |
25:250μM Fiber 09:900μM Loose Fiber |
SC: SC/UPC SA: SC/APC 00:no connect |
D:D 1U: J1 2U: J2 |
|||
| Grade | Port Number | Operation Wavelength | Coupling Ratio | Fiber Length | Fiber Type | Connector Type | Dimension | |||
Wuhan Geehe Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) High-quality Wire Rod
Excellent PVC wire, good strength, and tenacity, long lifespan
Contact Person: Ms. Yu Ying
Tel: +86 15727094728
