Product Details:
|
| Model Name: | Fiber Optic Patch Panel Installation | Structure: | Cold Rolled Steel |
|---|---|---|---|
| No.of Adapter/Port: | 48 | Adapter Type: | LC Duplex (Blue) |
| Height: | 1U, 2U, 3U, 4U, 8U | Ports: | 6, 12, 24, 48, 72,96, 144 |
| Mounting Adjustment Range: | 50mm | Material Of Plate: | 1.5mm SPCC (Black Coating) |
| Material Coating: | Powder Coating | 1U Dimensions (Hxwxd): | 48.2×27.8×88mm |
| Splice Capacity: | 48 Fibers | RoHS Compliancy Status: | Compliant |
| Highlight: | 96 Port LC Duplex Patch Panel,2U LC Duplex Patch Panel,2U 96 port fiber patch panel |
||

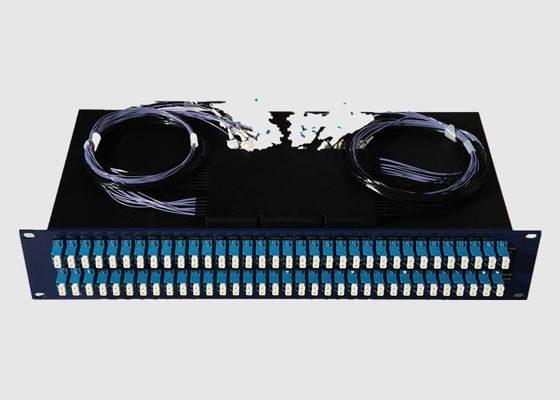

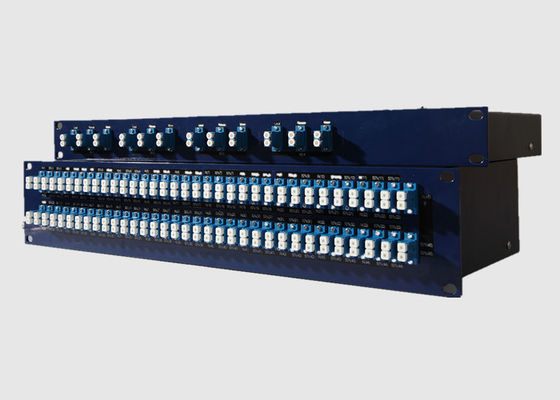

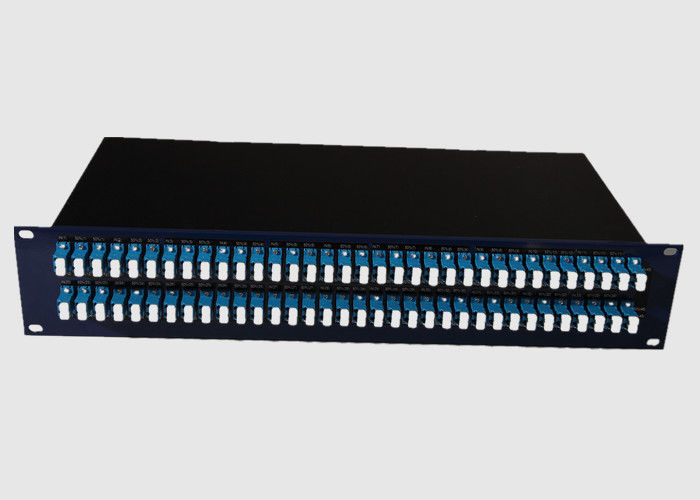

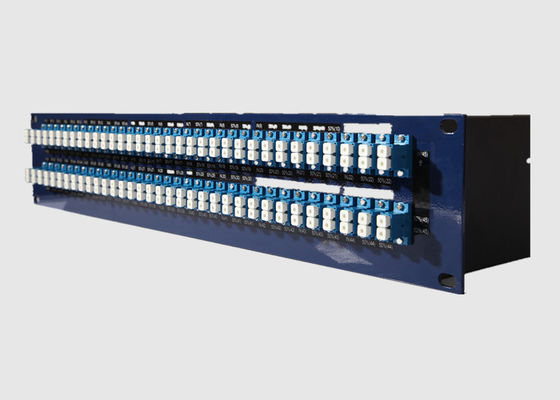

19 Inch 2U Multimode 96 Port LC Duplex Fiber Optic Patch Panel Installation
Basic Information:
96 Fibers, 48 Ports LC Duplex 9/125 Fiber Adapters, 2U High 19" Fiber Patch Panel
Geehe Fiber Patch Panel is having a rotating inner tray, which makes the optic fiber wall mount, fiber cable distribution storage to be don outside.
The LC Duplex 2U Patch Panel is suitable to 19 Inch Racks or cabinets,4 fiber splice trays are available to 96 Max fiber fusion splices.
LC fiber optic patch pigtails, adapters can be supplied.
Patch Panel Wall Mount Benefit& Feature:
Made of cold-rolled steel
LC Duplex Patch Panel 2U, LC 96 Ports
19-inch rack & cabinet mounted
LC fiber patch pigtails in SM, MM, the adapter can be chosen
Up to 48 fibres
Optional patch cord management
Special configurations made to order
Recessed Panel and Adapters option with the better bend radius
Patch Panel Wall Mount Application:
Telecommunication networks
FTTH
LAN, WAN, CATV networks
Active device termination
Datacenter
Specificaiton&Technology Parameters :
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 | ||
| Operating Wavelength(nm) | SDWC:1310&1550；STWC:1310,1490&1550 | ||||||||||
| Port Wavelength Range(nm) | 1310 ±40,1490 ±10 and 1550 ±40 | ||||||||||
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 | ||
| Uniformity (dB) | 0.6 | 1 | 1.6 | 2 | 1.8 | 0.8 | 1.2 | 1.8 | 2.2 | ||
| PDL@ 1310/1550 nm (dB) | ≤0.3 | ||||||||||
| Input Power (mW) | 250max | ||||||||||
| Operating Temperature (℃) | -40~+85℃ | ||||||||||
| Storage Temperature (℃) | -40~+85℃ | ||||||||||
| Fiber Type | Corning G657A1, 900μm, 2mm, 3mm Loose Tube | ||||||||||
| Dimensions(L×W×H) (mm) | 100×80×10,141×115×18,On request | ||||||||||
* The above specification exclusive connector
19 Inch Rack Specification:
| 19 Inch Rack | LGX | ||||||||||
| Configuration | 1U | 2U | 1U | 2U | |||||||
| Packing Dimensions(mm) | 482.6×278×44 | 482.6×278×88 | 129×125×29 | 129×125×58 | |||||||
| Installation Dimensions (mm) | 462.7×11.0(4-Φ6) | 462.7×27.5(6-Φ6) | 118(2-Φ6) | 118×29.2(2-Φ7) | |||||||
Ordering Information:
| WBC- | X- | X2- | 35- | XX- | X- | XX- | XX- | X | ||
| P: Premium A: Grade A X: Follow Customer's Requirements |
13:1x3 14:1X4 … 232:2 X32 |
35:1310/1550nm | 01: 01:99 02: 02:98 …… 50: 50:50 |
1:1 m x: Follow Customer's Requirements |
25:250μM Fiber 09:900μM Loose Fiber |
SC: SC/UPC SA: SC/APC 00:no connect |
D:D 1U: J1 2U: J2 |
|||
| Grade | Port Number | Operation Wavelength | Coupling Ratio | Fiber Length | Fiber Type | Connector Type | Dimension | |||
Wuhan Geehe Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) High-quality Wire Rod
Excellent PVC wire, good strength, and tenacity, long lifespan
