Product Details:
|
| Model Name: | Fibre Optic Patch Panels And Adapters | Rack Mountable: | 19'' Rack Mounted |
|---|---|---|---|
| Rack Material: | Zinc-plated Cold Roll Steel Sheet | Rack Color: | Black, White, Grey,or OEM |
| Height In Units: | 1U, 2U, 3U, 4U, 8U | Ports: | 6, 12, 24, 48, 72, 96, 144 |
| Front: | 48 - LC/LC Multimode Duplex | Thickness: | 0.8mm,1.0mm, 1.2mm |
| Max. Fiber Cores: | 24 | 2U Dimensions (Hxwxd): | 48.2×27.8×88mm |
| Highlight: | 1.0mm 48 Port Fiber Optic Panel,2U 48 Port Fiber Optic Panel,1.0mm multimode fiber patch panel |
||

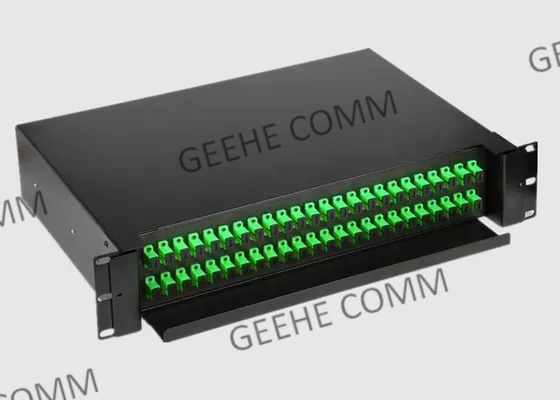

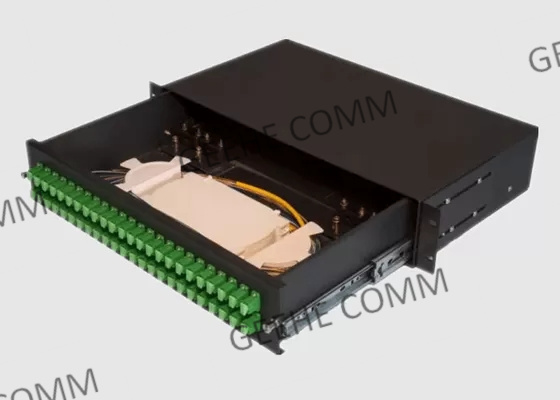

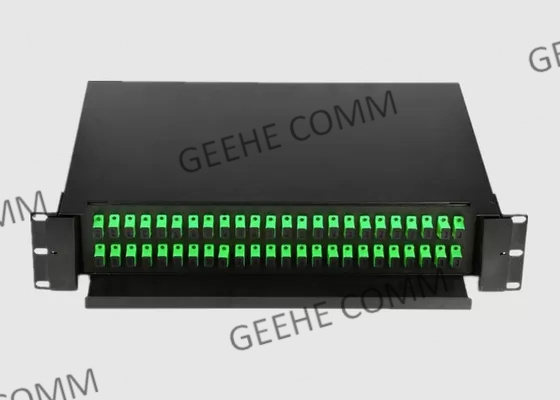

48 Port Multimode Sliding Rackmount Fibre Optic Patch Panels And Adapters
2U Patch Panel Overview:
A 48 port patch panel comes loaded with 48 duplex LC 62.5 micron multimode female to female couplers. It provides a quick and easy solution for patching terminated fiber cables. It is 2U in height and meant to be mounted on a 19" rack or cabinet.
This 19-inch rackmount patch panel provides an affordable and compact solution for rackmount fiber applications, which has 48 ports for patching duplex LC multimode fiber cables while using only 2U of rack space. It is ideal for high-density applications.
2U Patch Panel Wall Mount Benefit& Feature:
2U Patch Panel Wall Mount Application:
FTTX applications, Datacenter and LAN & WAN projects
Specificaiton&Technology Parameters :
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 | ||
| Operating Wavelength(nm) | SDWC:1310&1550；STWC:1310,1490&1550 | ||||||||||
| Port Wavelength Range(nm) | 1310 ±40,1490 ±10 and 1550 ±40 | ||||||||||
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 | ||
| Uniformity (dB) | 0.6 | 1 | 1.6 | 2 | 1.8 | 0.8 | 1.2 | 1.8 | 2.2 | ||
| PDL@ 1310/1550 nm (dB) | ≤0.3 | ||||||||||
| Input Power (mW) | 250max | ||||||||||
| Operating Temperature (℃) | -40~+85℃ | ||||||||||
| Storage Temperature (℃) | -40~+85℃ | ||||||||||
| Fiber Type | Corning G657A1, 900μm, 2mm, 3mm Loose Tube | ||||||||||
| Dimensions(L×W×H) (mm) | 100×80×10,141×115×18,On request | ||||||||||
* The above specification exclusive connector
19 Inch Rack Specification:
| 19 Inch Rack | LGX | ||||||||||
| Configuration | 1U | 2U | 1U | 2U | |||||||
| Packing Dimensions(mm) | 482.6×278×44 | 482.6×278×88 | 129×125×29 | 129×125×58 | |||||||
| Installation Dimensions (mm) | 462.7×11.0(4-Φ6) | 462.7×27.5(6-Φ6) | 118(2-Φ6) | 118×29.2(2-Φ7) | |||||||
Ordering Information:
| WBC- | X- | X2- | 35- | XX- | X- | XX- | XX- | X | ||
| P: Premium A: Grade A X: Follow Customer's Requirements |
13:1x3 14:1X4 … 232:2 X32 |
35:1310/1550nm | 01: 01:99 02: 02:98 …… 50: 50:50 |
1:1 m x: Follow Customer's Requirements |
25:250μM Fiber 09:900μM Loose Fiber |
SC: SC/UPC SA: SC/APC 00:no connect |
D:D 1U: J1 2U: J2 |
|||
| Grade | Port Number | Operation Wavelength | Coupling Ratio | Fiber Length | Fiber Type | Connector Type | Dimension | |||
Wuhan Geehe Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) High-quality Wire Rod
Excellent PVC wire, good strength, and tenacity, long lifespan
Contact Person: Ms. Yu Ying
Tel: +86 15727094728
