Product Details:
|
| Model Name: | Rack Mountable Loaded Patch Panel | Structure: | 19'' Rack Mounted |
|---|---|---|---|
| Rack Material: | Cold Rolled Steel, AL | Rack Color: | Black, White, Grey,or OEM |
| Height In Units: | 1U Rack Space Design | Ports: | 6, 12, 24, 48, 72, 96, 144 |
| Front Connector: | 8 - LC/LC Duplex | Thickness: | 0.8mm,1.0mm, 1.2mm |
| Max. Fiber Cores: | 12 | Dimensions (Hxwxd): | 48.2×27.8×44mm |
| Highlight: | LC Duplex Loaded Patch Panel,CATV Loaded Patch Panel,LC Duplex 8 port fiber patch panel |
||

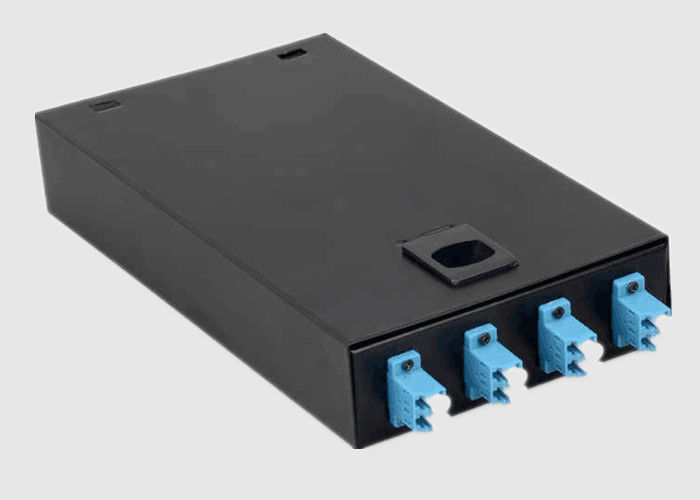

CATV Usage 1U LC Duplex 8 Port MM Rack-Mountable Loaded Patch Panel
Basic Information:

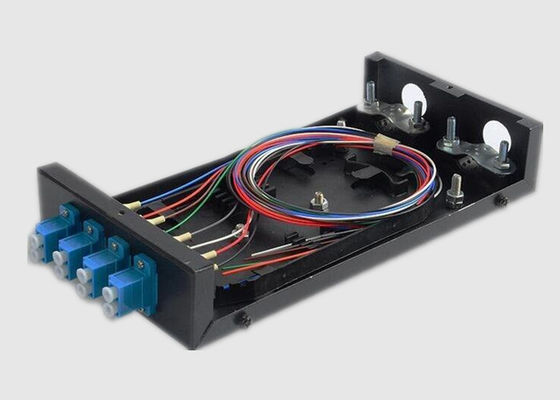

An LC Duplex Multi-Mode Rack is a Tray Style, suitable for either direct termination or splicing of up to 96 fibers in 1U of rack space. Each panel is manufactured from high-quality 2mm thick cold rolled steel and finished in a Black powder coat to provide a strong and durable unit.
1×8 port Multimode (OM3/OM4) LGX fiber adapter panels with a total of 8 MPO (8 12Fiber MPO) ports. Factory configured for Polarity Method A and designed for implementations in 10G/40G/100G networks, this LGX fiber patch panel is designed for a low insertion loss of .15dB.
The front of the patch panel the specified number of adaptors is loaded from left to right.
Patch Panel Wall Mount Benefit& Feature:
Patch Panel Wall Mount Application:
Specificaiton&Technology Parameters :
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 | ||
| Operating Wavelength(nm) | SDWC:1310&1550；STWC:1310,1490&1550 | ||||||||||
| Port Wavelength Range(nm) | 1310 ±40,1490 ±10 and 1550 ±40 | ||||||||||
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 | ||
| Uniformity (dB) | 0.6 | 1 | 1.6 | 2 | 1.8 | 0.8 | 1.2 | 1.8 | 2.2 | ||
| PDL@ 1310/1550 nm (dB) | ≤0.3 | ||||||||||
| Input Power (mW) | 250max | ||||||||||
| Operating Temperature (℃) | -40~+85℃ | ||||||||||
| Storage Temperature (℃) | -40~+85℃ | ||||||||||
| Fiber Type | Corning G657A1, 900μm, 2mm, 3mm Loose Tube | ||||||||||
| Dimensions(L×W×H) (mm) | 100×80×10,141×115×18,On request | ||||||||||
* The above specification exclusive connector
19 Inch Rack Specification:
| 19 Inch Rack | LGX | ||||||||||
| Configuration | 1U | 2U | 1U | 2U | |||||||
| Packing Dimensions(mm) | 482.6×278×44 | 482.6×278×88 | 129×125×29 | 129×125×58 | |||||||
| Installation Dimensions (mm) | 462.7×11.0(4-Φ6) | 462.7×27.5(6-Φ6) | 118(2-Φ6) | 118×29.2(2-Φ7) | |||||||
Ordering Information:
| WBC- | X- | X2- | 35- | XX- | X- | XX- | XX- | X | ||
| P: Premium A: Grade A X: Follow Customer's Requirements |
13:1x3 14:1X4 … 232:2 X32 |
35:1310/1550nm | 01: 01:99 02: 02:98 …… 50: 50:50 |
1:1 m x: Follow Customer's Requirements |
25:250μM Fiber 09:900μM Loose Fiber |
SC: SC/UPC SA: SC/APC 00:no connect |
D:D 1U: J1 2U: J2 |
|||
| Grade | Port Number | Operation Wavelength | Coupling Ratio | Fiber Length | Fiber Type | Connector Type | Dimension | |||
Wuhan Geehe Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) High-quality Wire Rod
Excellent PVC wire, good strength, and tenacity, long lifespan
