Product Details:
|
| Model Name: | Fiber Optic Patch Panel Outdoor | Structure: | Cold Rolled Steel |
|---|---|---|---|
| Spray Coating: | Electrostatic Spraying | Rack Color: | Black, White, Grey,or OEM |
| Height: | 1U, 2U, 3U, 4U, 8U | Ports: | 6, 12, 24, 48, 72, 96, 144 |
| Mounting Adjustment Range: | 50mm | Fiber Core: | 12~24FO |
| Optional Fiber Optic Adapter Plate: | FC,LC,SC,ST... | 1U Dimensions (Hxwxd): | 48.2×27.8×44mm |
| Highlight: | 50/125 12 port Fiber Patch Panel,1U 12 port Fiber Patch Panel,50/125 st fiber patch panel |
||

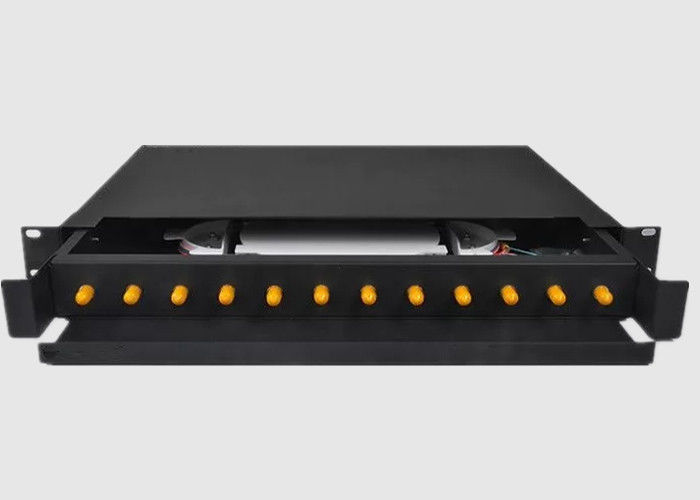

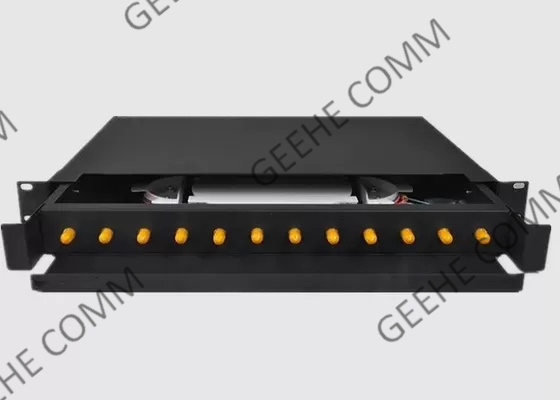

ST Fiber Pigtail 50/125 1U Face Plate 12 Fibers Rack-Mounted Panel Kit
Basic Information:

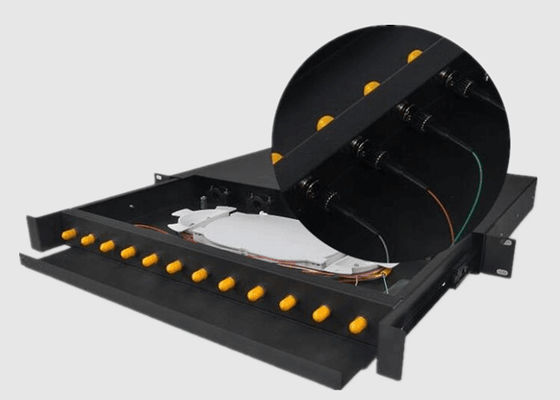

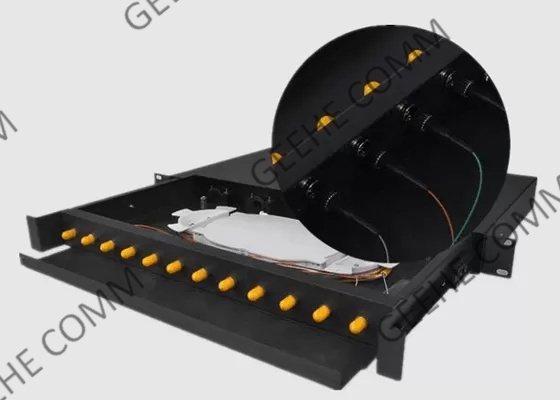

Pre-Loaded Fiber Patch Panel Kits include a 1U Fiber Optic Patch Panel loaded with Adapter Plates and a Fiber Optic Splice Tray,also included is a pack of Splice Sleeves and a pack of applicable Fiber Optic Pigtails. Any unused adapter plate slots are covered with a blank plate to protect the insides of the patch panel.
Geehe's ST Pigtails is Singlemode, and Yellow for SM APC. Each panel has included within it a set of fixing brackets, and a cable management pack which includes cable entry glands, cable ties, splice holders, cage nuts and screws are also provided.
Patch Panel Wall Mount Benefit& Feature:
Patch Panel Wall Mount Application:
Telecommunication networks
FTTH
LAN, WAN, CATV networks
Active device termination
Broadband
EDFA/WDM System
Specificaiton&Technology Parameters :
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 | ||
| Operating Wavelength(nm) | SDWC:1310&1550；STWC:1310,1490&1550 | ||||||||||
| Port Wavelength Range(nm) | 1310 ±40,1490 ±10 and 1550 ±40 | ||||||||||
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 | ||
| Uniformity (dB) | 0.6 | 1 | 1.6 | 2 | 1.8 | 0.8 | 1.2 | 1.8 | 2.2 | ||
| PDL@ 1310/1550 nm (dB) | ≤0.3 | ||||||||||
| Input Power (mW) | 250max | ||||||||||
| Operating Temperature (℃) | -40~+85℃ | ||||||||||
| Storage Temperature (℃) | -40~+85℃ | ||||||||||
| Fiber Type | Corning G657A1, 900μm, 2mm, 3mm Loose Tube | ||||||||||
| Dimensions(L×W×H) (mm) | 100×80×10,141×115×18,On request | ||||||||||
* The above specification exclusive connector
19 Inch Rack Specification:
| 19 Inch Rack | LGX | ||||||||||
| Configuration | 1U | 2U | 1U | 2U | |||||||
| Packing Dimensions(mm) | 482.6×278×44 | 482.6×278×88 | 129×125×29 | 129×125×58 | |||||||
| Installation Dimensions (mm) | 462.7×11.0(4-Φ6) | 462.7×27.5(6-Φ6) | 118(2-Φ6) | 118×29.2(2-Φ7) | |||||||
Ordering Information:
| WBC- | X- | X2- | 35- | XX- | X- | XX- | XX- | X | ||
| P: Premium A: Grade A X: Follow Customer's Requirements |
13:1x3 14:1X4 … 232:2 X32 |
35:1310/1550nm | 01: 01:99 02: 02:98 …… 50: 50:50 |
1:1 m x: Follow Customer's Requirements |
25:250μM Fiber 09:900μM Loose Fiber |
SC: SC/UPC SA: SC/APC 00:no connect |
D:D 1U: J1 2U: J2 |
|||
| Grade | Port Number | Operation Wavelength | Coupling Ratio | Fiber Length | Fiber Type | Connector Type | Dimension | |||
Wuhan Geehe Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
