Product Details:
|
| Model Name: | FC 24-Fiber Adaptor Panel | Structure: | Cold Rolled Steel |
|---|---|---|---|
| Rack Material: | 50mm | Rack Color: | Black, White, Grey,or OEM |
| Height: | 1U, 2U, 3U, 4U, 8U | Connectors: | 24 FC Adapter |
| Mounting Adjustment Range: | 50mm | Fiber Type: | OS2 ,Single Mide |
| Material Coating: | Powder Coating | 1U Dimensions (Hxwxd): | 48.2×27.8×44mm |
| Highlight: | 2U fc fiber patch panel,2U single mode fiber patch panel,Zirconia Insert fc fiber patch panel |
||

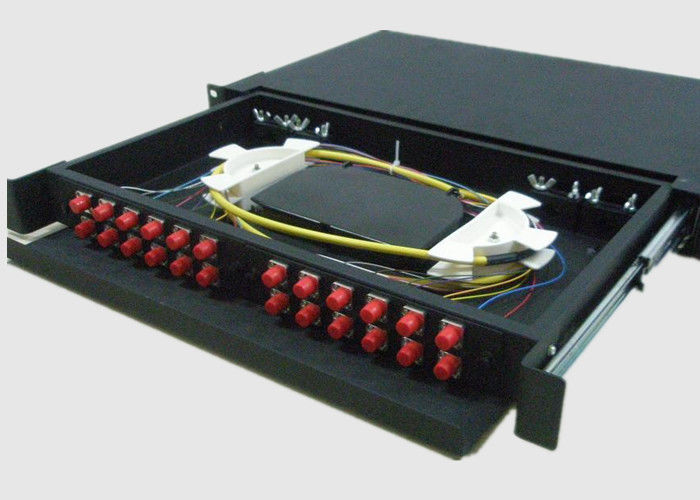

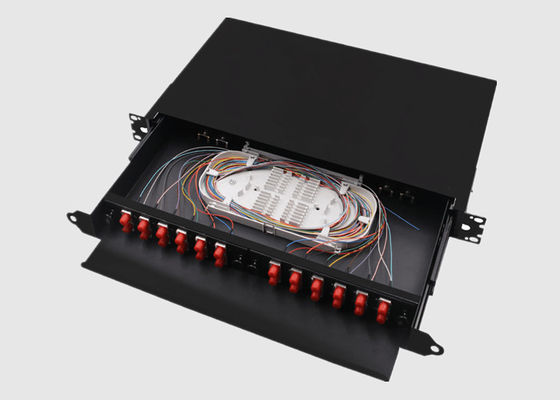

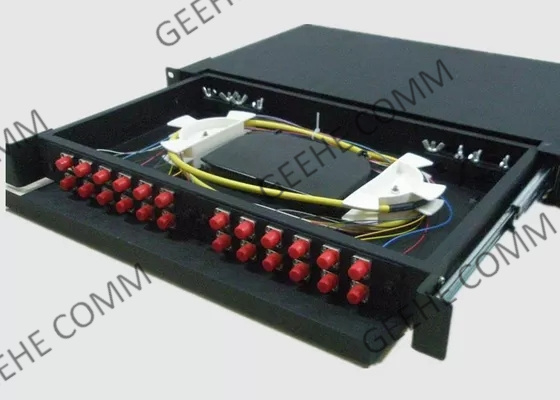

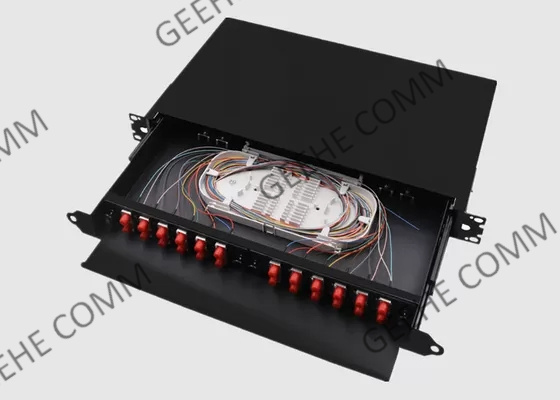

Zirconia Insert Multimode/Singlemode 2U Rack FC 24-Fiber Adaptor Panel
Basic Information:
1U 19 inches FC fiber optic adapter panel fit for most 19” fiber patch panels. Each panel can be ordered fully terminated with adapters and it saves valuable installation time and labor expenses. We can also customize your logo onto the panel body or any other applications, all the FC type pigtails (bulkhead adapters) are already installed for immediate use.
We offer two versions of this panel, one for Multimode applications (bronze alignment sleeves) and one for Single Mode (ceramic alignment sleeves).
Order online today! We are 24 hours/ 7 days online.
Patch Panel Wall Mount Benefit& Feature:
Patch Panel Wall Mount Application:
Telecommunication networks
FTTH
LAN, WAN, CATV networks
Active device termination
Broadband
Data center management
High EMI/RFI applications
Specificaiton&Technology Parameters :
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 | ||
| Operating Wavelength(nm) | SDWC:1310&1550；STWC:1310,1490&1550 | ||||||||||
| Port Wavelength Range(nm) | 1310 ±40,1490 ±10 and 1550 ±40 | ||||||||||
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 | ||
| Uniformity (dB) | 0.6 | 1 | 1.6 | 2 | 1.8 | 0.8 | 1.2 | 1.8 | 2.2 | ||
| PDL@ 1310/1550 nm (dB) | ≤0.3 | ||||||||||
| Input Power (mW) | 250max | ||||||||||
| Operating Temperature (℃) | -40~+85℃ | ||||||||||
| Storage Temperature (℃) | -40~+85℃ | ||||||||||
| Fiber Type | Corning G657A1, 900μm, 2mm, 3mm Loose Tube | ||||||||||
| Dimensions(L×W×H) (mm) | 100×80×10,141×115×18,On request | ||||||||||
* The above specification exclusive connector
19 Inch Rack Specification:
| 19 Inch Rack | LGX | ||||||||||
| Configuration | 1U | 2U | 1U | 2U | |||||||
| Packing Dimensions(mm) | 482.6×278×44 | 482.6×278×88 | 129×125×29 | 129×125×58 | |||||||
| Installation Dimensions (mm) | 462.7×11.0(4-Φ6) | 462.7×27.5(6-Φ6) | 118(2-Φ6) | 118×29.2(2-Φ7) | |||||||
Ordering Information:
| WBC- | X- | X2- | 35- | XX- | X- | XX- | XX- | X | ||
| P: Premium A: Grade A X: Follow Customer's Requirements |
13:1x3 14:1X4 … 232:2 X32 |
35:1310/1550nm | 01: 01:99 02: 02:98 …… 50: 50:50 |
1:1 m x: Follow Customer's Requirements |
25:250μM Fiber 09:900μM Loose Fiber |
SC: SC/UPC SA: SC/APC 00:no connect |
D:D 1U: J1 2U: J2 |
|||
| Grade | Port Number | Operation Wavelength | Coupling Ratio | Fiber Length | Fiber Type | Connector Type | Dimension | |||
Wuhan Geehe Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) High-quality Wire Rod
Excellent PVC wire, good strength, and tenacity, long lifespan
Contact Person: Ms. Yu Ying
Tel: +86 15727094728
