Product Details:
|
| Module Name: | WDM In Optical Communication | Port Type: | 2×4 |
|---|---|---|---|
| Fiber Type: | PM Panda Fiber | Jacket: | 250um Or 900nm Or Others |
| Connectors: | With LC Upc Connectors | Pigtail Length: | 1M,1.5M Or Customized |
| Common Pass Port: | PM980 Or PM1550 | Option Channel: | 4, 8 , 16, 18 Channels |
| Operating Wavelength: | 980~1620 Nm | Package: | Mini Package, Module Package, Frame Package |
| Highlight: | 1480nm Fiber Optic WDM,1480nm WDM Module,1480nm wave division multiplexer |
||

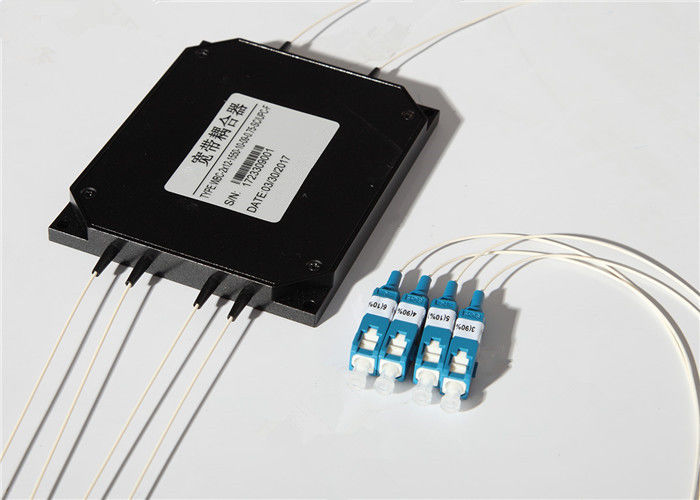

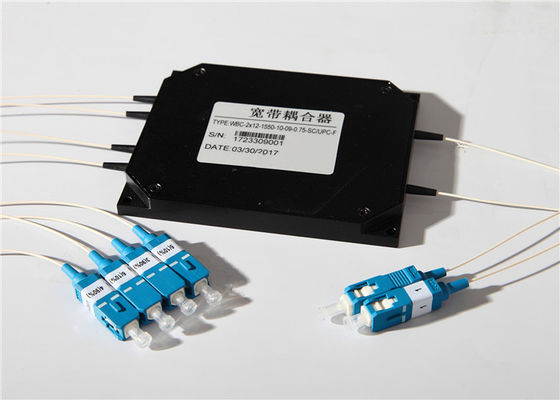

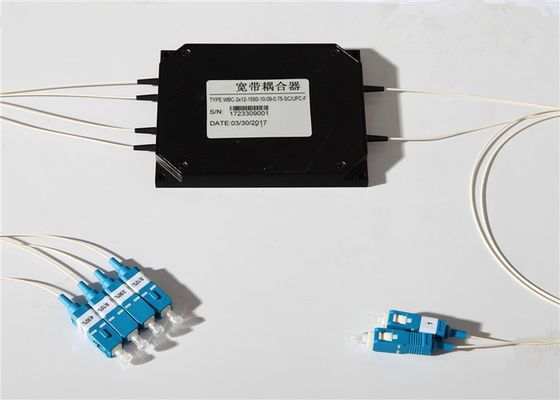

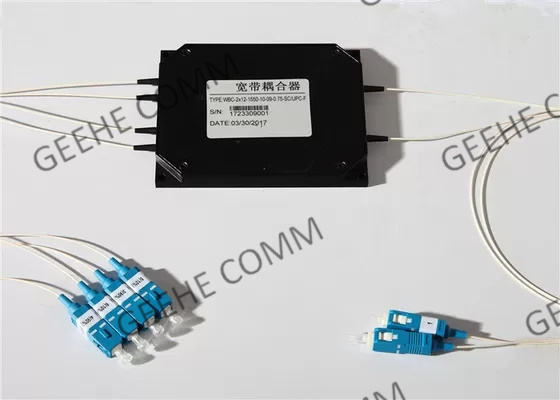

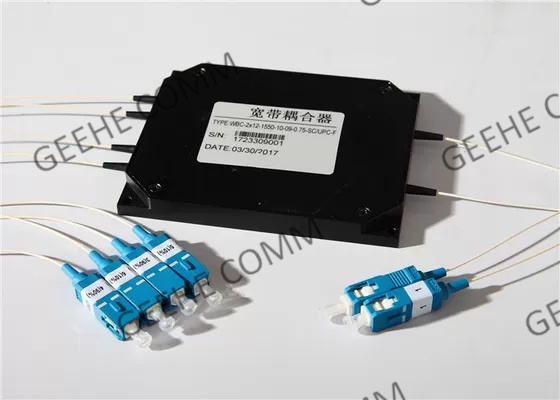

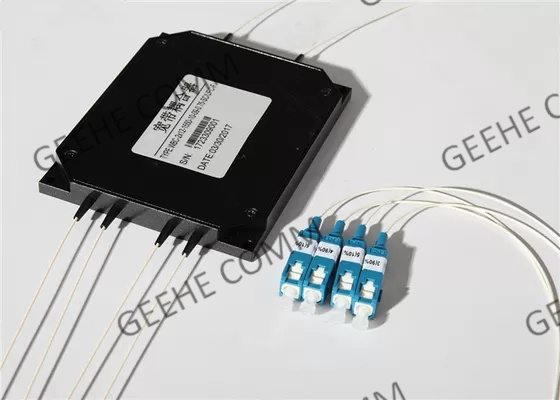

High Directivity 2 × 4 Fan Out 1480/1550nm Fused WDM Module With LC Connector
Basic Information:
2 × 4 Fan Out Single Mode Fused Coupler is built by using fused biconical taper (FBT) technology. It can be used to split the input signal at various ratios with low insertion loss.
You can choose two main types of Fused WDM modules: Fused WDM used in optical fiber amplifiers, such as 980/1550nm, 1480/1550nm, 980/1060nm Fused WDM; Fused WDM module used in bi-directional or CWDM optical communication systems, such as 1310/1550nm WDM Module.
The connectors are available:LC-UPC,LC-APC,LC-PC,SC-UPC,SC-APC,SC-PC,FC-UPC,FC-APC,FC-PC,ST-UPC etc.
FBT WDM Benefit&Features:
* Various Coupling Ratio
* High Channel Isolation
* High Uniformity and reliability
* Low insertion and return loss
* Exceptionally Stable and Reliable
* Customization Supported
Certification And Compliance:
* GR-1209-CORE Requirements for passive optic components
* GR-1221-CORE Reliability assurance requirements for passive optical components
* GR-326-CORE Requirements for single-mode optical connectors sand jumpers assemblies
* TIA-604 Fiber optic connector interpretability standard
* ROHS Directive on the restriction of hazardous substances
WDM Applications:
* FTTX
* Passive Optical Networks (PON)
* Digital, hybrid video systems
* CATV links & Fiber sensors
* Long -haul telecommunication
* Access /PON distributions
* LAN/WAN/Metro
* Datacenter
Specifications& Technology Parameters:
| Fiber Type(dB) | Corning HI1060flex or OFS BF05635-02 | SMF-28e | |||||||
| Operating Wavelength(nm) | 980 & 1550 | 1060 & 1550 | 1310 & 1550 | 1480 & 1550 | |||||
| Operating Bandwidth(nm) | ±10/20 | ±15 | ±15 | ||||||
| Grade | P | A | P | A | P | A | P | A | |
| Insertion Loss(dB) | ≤0.15 | ≤0.25 | ≤0.30 | ≤0.40 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.35 | |
| Isolation(dB) | ≥20 | ≥18 | ≥20 | ≥18 | ≥25 | ≥18 | ≥25 | ≥18 | |
| PDL(dB) | ≤0.05 | ≤0.1 | ≤0.05 | ≤0.1 | ≤0.05 | ≤0.1 | ≤0.1 | ≤0.1 | |
| Directivity(dB) | ≥55 | ||||||||
| Operating Temperature(℃) | -40 ~ +85 | ||||||||
* The above specification is excluding the connector
* Other specification can be made on customer requires
Ordering Information:
| WDM- | N- | XX- | XX- | X- | XX- | XX- | X | |||
| 95:980&1550nm 135:1310&1550nm 65:1060&1550nm 45:1480&1550nm | 01: :SMF-28e 02: HI1060flex, 03: OFS BF05635-02 |
1:1m X:customization |
25:250μM Fiber 09:900μM loose Fiber 20: 2mm cable 30: 3mm cable |
SC:SC/UPC SA:SC/APC ...... 00:No connector |
A: A B: B C:C |
|||||
| Grade | Operation Wavelength | Fiber Type | Fiber Length | Pigtail Type | Connect Type | Dimension | ||||
