Product Details:
|
| Module Name: | Fused WDM Module Couplers | Port Configuration: | 1 X 2 |
|---|---|---|---|
| Centre Wavelength: | 1550nm | Bandwidth: | ±20nm |
| Polarization Extinction Ratio: | ≥ 17dB | Fiber Type: | PM Panda Fiber All Ports Or SM Fiber |
| Common Pass Port: | PM980 Or PM1550 | Option Channel: | 4, 8 , 16, 18 Channels |
| Operating Wavelength: | 980~1620 Nm | Package: | Mini Package, Module Package, Frame Package |
| Highlight: | 155nm pm fiber coupler,50/50 pm fiber coupler,155nm polarization maintaining coupler |
||

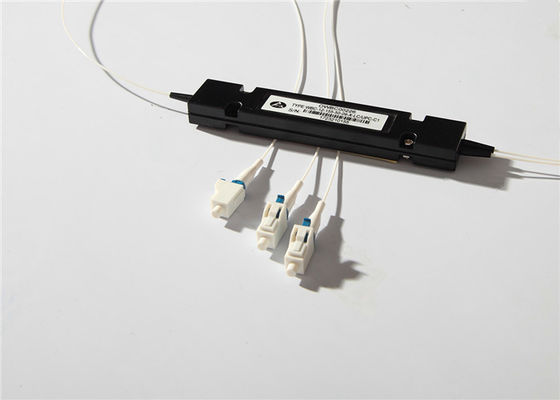

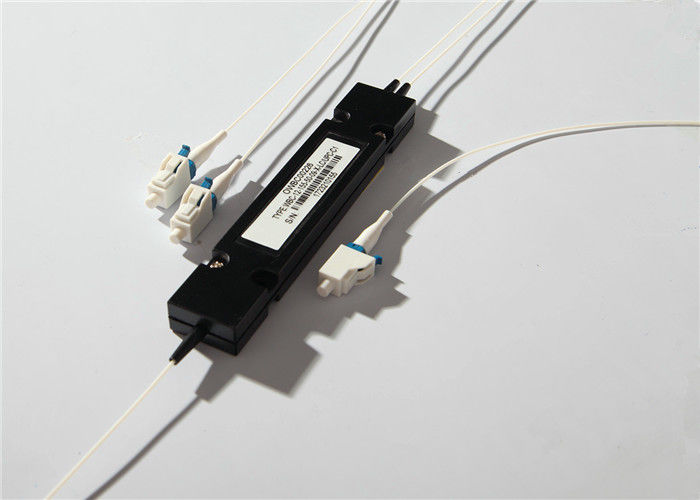

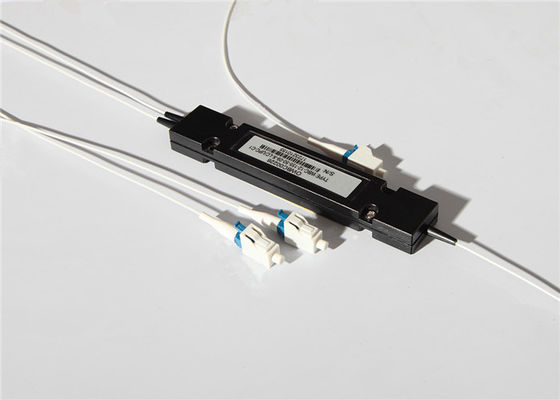

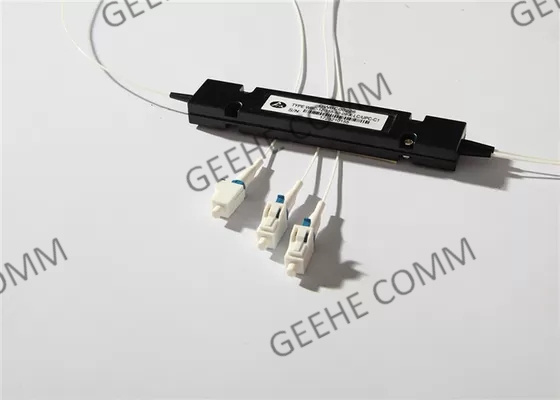

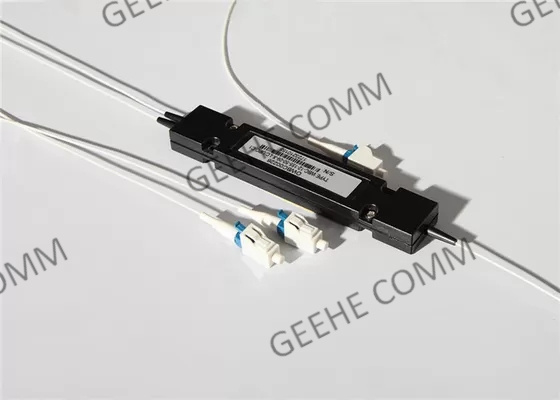

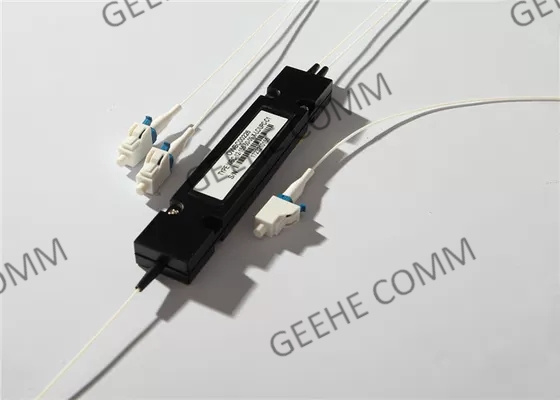

50:50 Single Mode 1×2 155nm Polarization Maintaining Filter Coupler
Basic Information:
Polarization maintaining couplers (PMC) combine or split the incoming light and maintain their polarization states at the output ports.
Two types of PM couplers are available, micro-optical sub-components based or PM fused fiber-based. The PM couplers have central wavelengths at 1310nm, 1550nm, or 1064nm. Their coupling ratios can be specified with high accuracy. Two configurations, 1x2 or 2x2, are available.
Geehe's polarization-maintaining Filter Split Ration:1:99,2:98,5:95,10:90,50:50,1:99,2:98,5:95,10:90,50:50.
FBT WDM Benefit&Features:
Certification And Compliance:
GR-1209-CORE Requirements for passive optic components
GR-1221-CORE Reliability assurance requirements for passive optical components
GR-326-CORE Requirements for single-mode optical connectors sand jumpers assemblies
TIA-604 Fiber optic connector interpretability standard
ROHS Directive on the restriction of hazardous substances
WDM Applications:
-- FTTX
-- Passive Optical Networks (PON)
-- Digital, hybrid video systems
-- CATV links & Fiber sensors
-- Long -haul telecommunication
-- Access /PON distributions
Specifications& Technology Parameters:
| Parameter | P | A | |||||||||
| Operating Wavelength | 1480/1550nm | ||||||||||
| Insertion Loss(Max.)(dB) | 1:99 | 2:98 | 5:95 | 10:90 | 50:50 | 1:99 | 2:98 | 5:95 | 10:90 | 50:50 | |
| 21/0.8 | 18/0.8 | 14.2/0.9 | 11.2/1.1 | 3.6 | 22/1.0 | 18.5/1.0 | 14.8/1.1 | 11.8/1.3 | 4.0 | ||
| Max.Uniformity (dB) | 0.8 | ||||||||||
| Mini.Extinction Ratio(dB) | 20 | 18 | |||||||||
| Optical Return Loss(dB) | ≥50 | ||||||||||
| Power Handling(mW) | 500 | ||||||||||
| Operating Temperature(℃) | -10~+75 | ||||||||||
| Storage Temperature(℃) | -40~+85 | ||||||||||
| Fiber Type | PM Panda Fiber | ||||||||||
| Package Dimensions (mm) | Φ3 x L35 OR Φ3 x L48 | ||||||||||
* The above specification is excluding the connector
* Other specification can be made on customer requires
Ordering Information:
| PMC | -X | -X2 | -XX | -XX | -X | -XX | -XX | X |
| P: Premium A: Grade A X: On Request |
12:1x2 22:2x2 |
55:1550nm xx: on request |
01: 01:99 02: 02:98 …… 50: 50:50 |
1:1 m x: on request |
25:250μM Fiber 09:900μM loose Fiber 20:2mm光缆 30:3mm光缆 |
SC:SC/UPC SA:SC/APC 00:no connector | A: A B: B C: C |
|
| Grade | Port Number | Operating Wavelength | Coupling Ratio | Fiber Length | Fiber Type | Connect Type | Dimension |
