Product Details:
|
| Module Name: | WDM Coupler Singlemode | Port Type: | 1×26 |
|---|---|---|---|
| Fiber Type: | PM Panda Fiber All Ports Or SM Fiber | Jacket: | 250um Or 900nm Or Others |
| Connectors: | With LC UPC Connectors | Pigtail Length: | 1M,1.5M Or Customized |
| Common Pass Port: | PM980,PM1310 Or PM1550 | Option Channel: | 2, 4, 8 , 16, 18 ,36, 48 Channels |
| Operating Wavelength: | 980~1620 Nm | Package: | Original Carton Package; As Customers‘ Requirement |
| Highlight: | 1310 1550nm Fiber Optic WDM,900um Fiber Optic WDM Coupler,Fiber Optic WDM Coupler Singlemode |
||

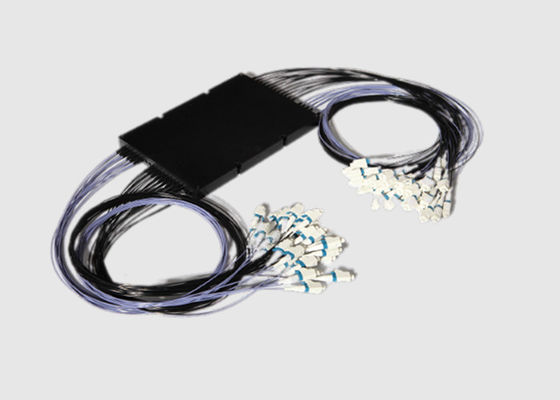

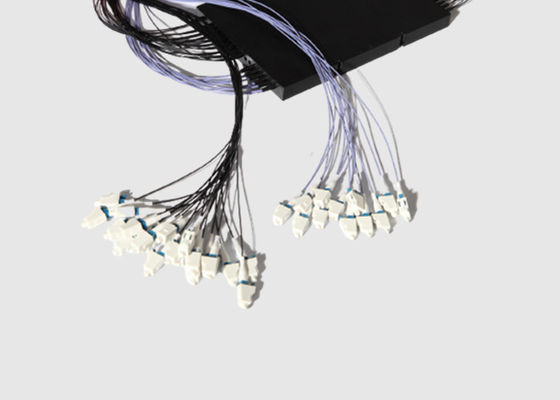

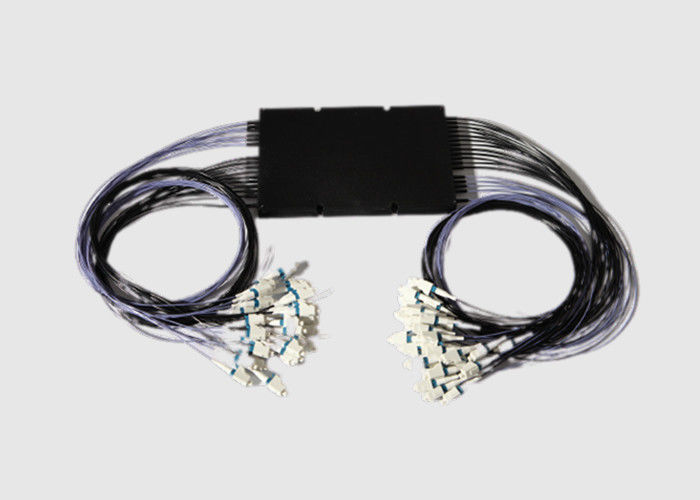

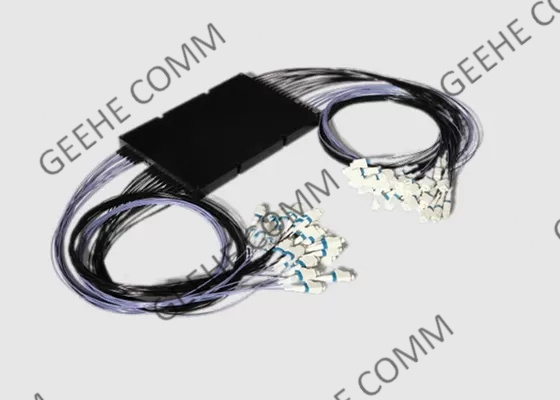

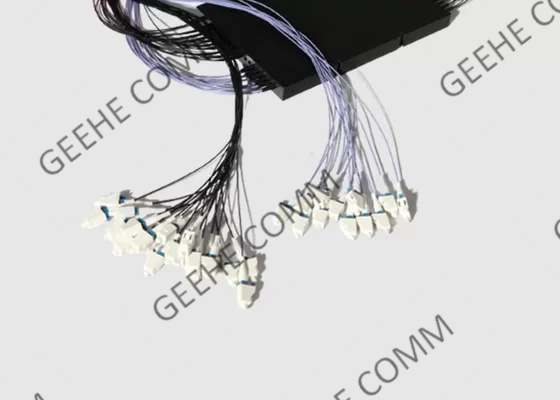

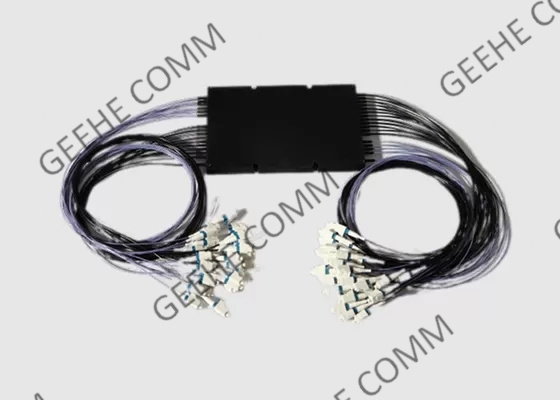

High Isolation 1310 1550nm 900um WDM Coupler Singlemode With SC/APC
Basic Information:
It is common to couple two very different wavelengths into the same light path in nonlinear frequency mixing applications, such as in SFG/DFG or OPA. However, the solution for coupling two very different wavelengths into the same optical fiber might not be available via common WDM couplers in the market.
To resolve this coupling issue, we provide special WDM couplers for your application convenience. You can specify your desired input/output wavelengths and types of preferred fiber in each coupling port. We will design/manufacture special WDM couplers to assistant your wavelength combining or splitting in nonlinear frequency mixing applications.
FBT WDM Benefit&Features:
Certification And Compliance:
* GR-1209-CORE Requirements for passive optic components
* GR-1221-CORE Reliability assurance requirements for passive optical components
* GR-326-CORE Requirements for single-mode optical connectors sand jumpers assemblies
* TIA-604 Fiber optic connector interpretability standard
* ROHS Directive on the restriction of hazardous substances
WDM Applications:
Specifications& Technology Parameters:
| Fiber Type(dB) | Corning HI1060flex or OFS BF05635-02 | SMF-28e | |||||||
| Operating Wavelength(nm) | 980 & 1550 | 1060 & 1550 | 1310 & 1550 | 1480 & 1550 | |||||
| Operating Bandwidth(nm) | ±10/20 | ±15 | ±15 | ||||||
| Grade | P | A | P | A | P | A | P | A | |
| Insertion Loss(dB) | ≤0.15 | ≤0.25 | ≤0.30 | ≤0.40 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.35 | |
| Isolation(dB) | ≥20 | ≥18 | ≥20 | ≥18 | ≥25 | ≥18 | ≥25 | ≥18 | |
| PDL(dB) | ≤0.05 | ≤0.1 | ≤0.05 | ≤0.1 | ≤0.05 | ≤0.1 | ≤0.1 | ≤0.1 | |
| Directivity(dB) | ≥55 | ||||||||
| Operating Temperature(℃) | -40 ~ +85 | ||||||||
* The above specification is excluding the connector
* Other specification can be made on customer requires
Ordering Information:
| WDM- | N- | XX- | XX- | X- | XX- | XX- | X | |||
| 95:980&1550nm 135:1310&1550nm 65:1060&1550nm 45:1480&1550nm | 01: :SMF-28e 02: HI1060flex, 03: OFS BF05635-02 |
1:1m X:customization |
25:250μM Fiber 09:900μM loose Fiber 20: 2mm cable 30: 3mm cable |
SC:SC/UPC SA:SC/APC ...... 00:No connector |
A: A B: B C: C |
|||||
| Grade | Operation Wavelength | Fiber Type | Fiber Length | Pigtail Type | Connect Type | Dimension | ||||
WDM Connectors
