Product Details:
|
| Module Name: | LC/UPC 1x2 FBT Coupler WDM | Port Type: | 1×2 |
|---|---|---|---|
| Fiber Type: | PM Panda Fiber All Ports Or SM Fiber | Jacket: | 250um Or 900nm Or Others |
| Connectors: | With LC UPC Connectors | Pigtail Length: | 1M,1.5M Or Customized |
| Common Pass Port: | PM980,PM1310 Or PM1550 | Option Channel: | 2, 4, 8 , 16, 18 ,36, 48 Channels |
| Operating Wavelength: | 980~1620 Nm | Package: | Original Carton Package; As Customers' Requirement |
| Highlight: | 1x2 FBT Coupler WDM,LC/UPC FBT Coupler WDM,LC/UPC 1x2 FBT Coupler WDM |
||

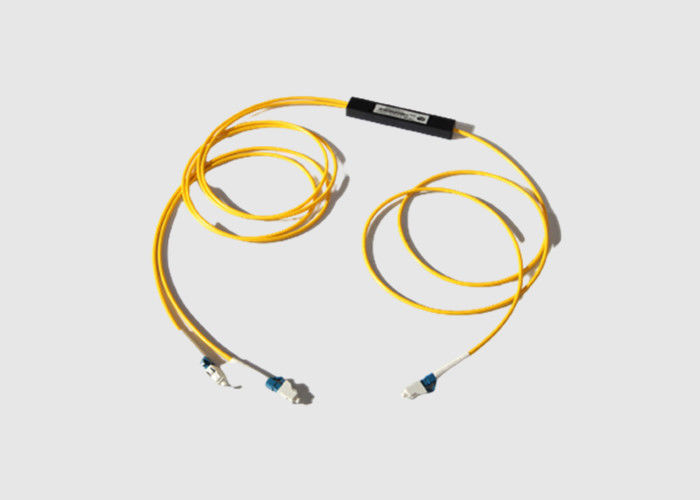

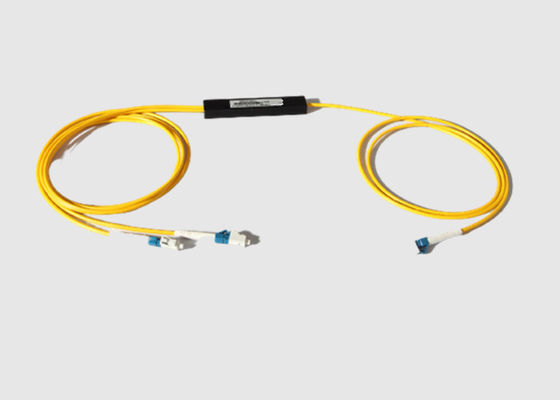

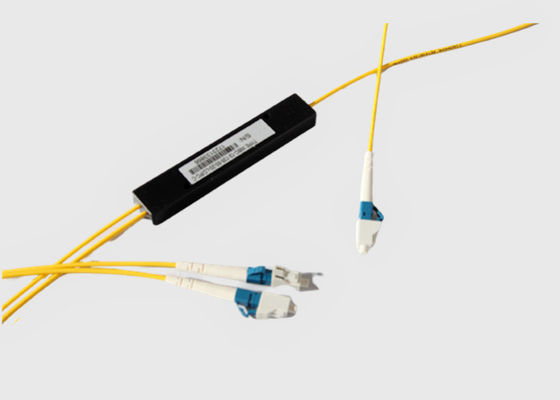

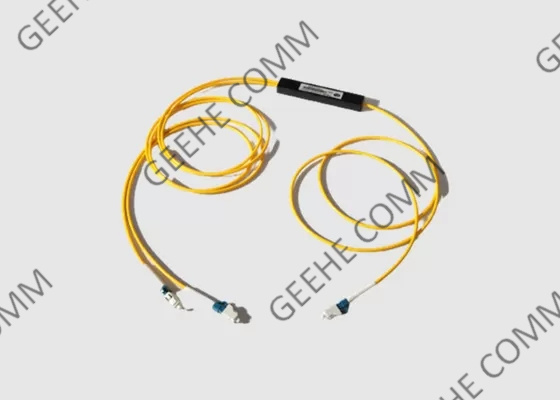

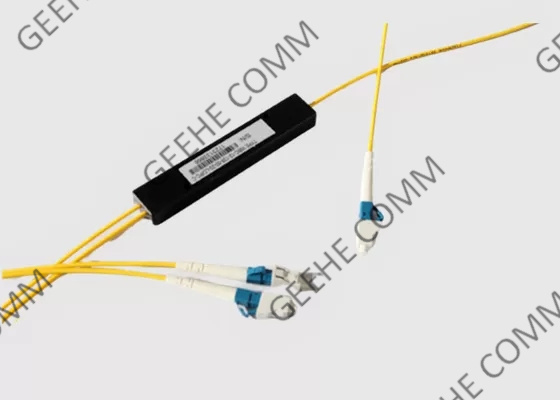

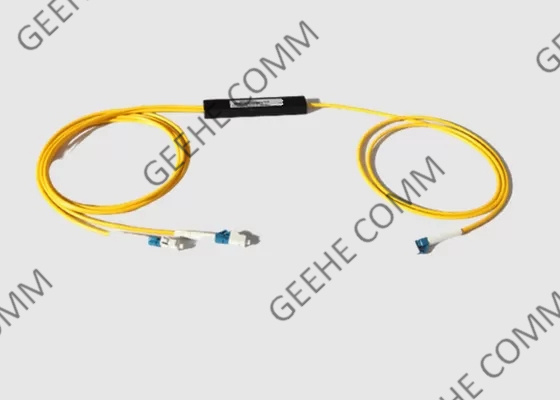

Less MOQ FTTH Dual Window Splitter Ratio LC/UPC 1x2 Fbt Coupler WDM
Basic Information:
Fused WDM is also based on Fused Biconical Taper (FBT) technology, it is used to combine and separate optical signals transmitted on different wavelengths. Compare to the filter type WDM(FWDM device), fused WDM offers low insertion loss and a much lower price, and it is widely used in optical transmission network and network status monitoring.
We offer complete and flexible solutions for fused fiber optic coupler (FBT Coupler) and Fused WDM applications. Due to our standard small packages(3.0x54mm),
FBT WDM Benefit&Features:
Low Excess Loss
Various Coupling Ratio
Compact Size
High Stability and Reliability
SM, MM, PM version
Fused WDM Application
FBT WDM Benefit&Features:
* GR-1209-CORE Requirements for passive optic components
* GR-1221-CORE Reliability assurance requirements for passive optical components
* GR-326-CORE Requirements for single-mode optical connectors sand jumpers assemblies
* TIA-604 Fiber optic connector interpretability standard
* ROHS Directive on the restriction of hazardous substances
WDM Applications:
Specifications& Technology Parameters:
| Fiber Type(dB) | Corning HI1060flex or OFS BF05635-02 | SMF-28e | |||||||
| Operating Wavelength(nm) | 980 & 1550 | 1060 & 1550 | 1310 & 1550 | 1480 & 1550 | |||||
| Operating Bandwidth(nm) | ±10/20 | ±15 | ±15 | ||||||
| Grade | P | A | P | A | P | A | P | A | |
| Insertion Loss(dB) | ≤0.15 | ≤0.25 | ≤0.30 | ≤0.40 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.35 | |
| Isolation(dB) | ≥20 | ≥18 | ≥20 | ≥18 | ≥25 | ≥18 | ≥25 | ≥18 | |
| PDL(dB) | ≤0.05 | ≤0.1 | ≤0.05 | ≤0.1 | ≤0.05 | ≤0.1 | ≤0.1 | ≤0.1 | |
| Directivity(dB) | ≥55 | ||||||||
| Operating Temperature(℃) | -40 ~ +85 | ||||||||
* The above specification is excluding the connector
* Other specification can be made on customer requires
Ordering Information:
| WDM- | N- | XX- | XX- | X- | XX- | XX- | X | |||
| 95:980&1550nm 135:1310&1550nm 65:1060&1550nm 45:1480&1550nm | 01: :SMF-28e 02: HI1060flex, 03: OFS BF05635-02 |
1:1m X:customization |
25:250μM Fiber 09:900μM loose Fiber 20: 2mm cable 30: 3mm cable |
SC:SC/UPC SA:SC/APC ...... 00:No connector |
A: A B: B C: C |
|||||
| Grade | Operation Wavelength | Fiber Type | Fiber Length | Pigtail Type | Connect Type | Dimension | ||||
WDM Cable Type:
1. Single-mode fibers allow one mode to propagate.
2. Multimode fibers support the propagation of multiple modes.
3. Wavelength range is the range of wavelengths the WDM will operate in.
4. Bandwidth, also called channel spacing, is the size of the windows in nm.
5. Channel spacing is the center-to-center difference in frequency between neighboring channels. Two hundred GHz corresponds to .4 nm spacing, 100 GHz corresponds to .2 nm spacing, and 50 GHz corresponds to .1 nm spacing.
6. Number of channels is the number of channels the device has to send information. This number can range from 4 to 160 with design enhancements adding more channels.
7. Insertion loss is the attenuation caused by the insertion of wavelength division multiplexers (WDM) in an optical transmission system.
Polarization-dependent loss is the maximum deviation in insertion loss across all input polarization states.
