Product Details:
|
| Module Name: | 1×4 WDM Coupler | Port Type: | 1×4 |
|---|---|---|---|
| Fiber Type: | PM Panda Fiber All Ports Or SM Fiber | Jacket: | 250um Or 900nm Or Others |
| Connectors: | With ST UPC Connectors | Pigtail Length: | 1M,1.5M Or Customized |
| Common Pass Port: | PM980,PM1310 Or PM1550 | Option Channel: | 2, 4, 8 , 16, 18 ,36, 48 Channels |
| Operating Wavelength: | 980~1620 Nm | Package: | Original Carton Package; As Customers' Requirement |
| Highlight: | 1×4 WDM Fiber Coupler,Steel Tube 1×4 WDM Coupler,1×4 FBT Coupler WDM |
||
Less MOQ FTTH Dual Window Splitter Ratio LC/UPC 1x2 Fbt Coupler WDM
Basic Information:

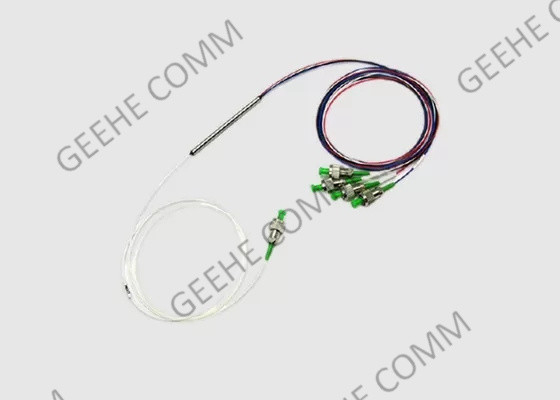

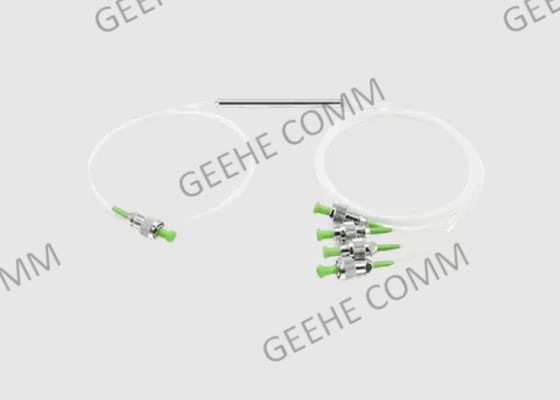

1x4 Triplexer WDM Coupler is designed for the "triple-play" fiber to the home (FTTH) systems. It can be used to mux/demux three wavelengths at 1310nm, 1490nm, and 1550nm that carry the voice, data, and video services.
This device has a 1 to 4 port configuration. All three wavelengths are fed into the device through the common input port. One wavelength is reflected from one output port and the other two wavelengths pass through the device at the other output port. This device is bi-directional. It supports optical traffic in both directions.
FBT WDM Benefit&Features:
FBT WDM Benefit&Features:
* GR-1209-CORE Requirements for passive optic components
* GR-1221-CORE Reliability assurance requirements for passive optical components
* GR-326-CORE Requirements for single-mode optical connectors sand jumpers assemblies
* TIA-604 Fiber optic connector interpretability standard
* ROHS Directive on the restriction of hazardous substances
WDM Applications:
Specifications& Technology Parameters:
| Fiber Type(dB) | Corning HI1060flex or OFS BF05635-02 | SMF-28e | |||||||
| Operating Wavelength(nm) | 980 & 1550 | 1060 & 1550 | 1310 & 1550 | 1480 & 1550 | |||||
| Operating Bandwidth(nm) | ±10/20 | ±15 | ±15 | ||||||
| Grade | P | A | P | A | P | A | P | A | |
| Insertion Loss(dB) | ≤0.15 | ≤0.25 | ≤0.30 | ≤0.40 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.35 | |
| Isolation(dB) | ≥20 | ≥18 | ≥20 | ≥18 | ≥25 | ≥18 | ≥25 | ≥18 | |
| PDL(dB) | ≤0.05 | ≤0.1 | ≤0.05 | ≤0.1 | ≤0.05 | ≤0.1 | ≤0.1 | ≤0.1 | |
| Directivity(dB) | ≥55 | ||||||||
| Operating Temperature(℃) | -40 ~ +85 | ||||||||
* The above specification is excluding the connector
* Other specification can be made on customer requires
Ordering Information:
| WDM- | N- | XX- | XX- | X- | XX- | XX- | X | |||
| 95:980&1550nm 135:1310&1550nm 65:1060&1550nm 45:1480&1550nm | 01: :SMF-28e 02: HI1060flex, 03: OFS BF05635-02 |
1:1m X:customization |
25:250μM Fiber 09:900μM loose Fiber 20: 2mm cable 30: 3mm cable |
SC:SC/UPC SA:SC/APC ...... 00:No connector |
A: A B: B C: C |
|||||
| Grade | Operation Wavelength | Fiber Type | Fiber Length | Pigtail Type | Connect Type | Dimension | ||||
WDM Cable Type:
1. Single-mode fibers allow one mode to propagate.
2. Multimode fibers support the propagation of multiple modes.
3. Wavelength range is the range of wavelengths the WDM will operate in.
4.Channel spacing is the center-to-center difference in frequency between neighboring channels. Two hundred GHz corresponds to .4 nm spacing, 100 GHz corresponds to .2 nm spacing, and 50 GHz corresponds to .1 nm spacing.
5. Number of channels is the number of channels the device has to send information. This number can range from 4 to 160 with design enhancements adding more channels.
Package
Original Carton Package;
As customers‘ requirement.
