Product Details:
|
| Model Name: | Fiber Optic PLC Splitter | Structure: | 19'' Rack Mounted |
|---|---|---|---|
| Rack Material: | Zinc-plated Cold Roll Steel Sheet | Rack Color: | Black, White, Grey,or OEM |
| Height: | 1U, 2U, 3U, 4U, 8U | Ports: | 6, 12, 24, 48, 72, 96, 144 |
| Connector: | SC LC FC ST | Thickness: | 0.8mm,1.0mm, 1.2mm |
| Max. Fiber Cores: | 24 | 2U Dimensions (Hxwxd): | 48.2×27.8×88mm |
| Highlight: | SC/APC Fiber Optic PLC Splitter,1×16 Rack Mount Optical PLC Splitter,Rack Mount 1U Fiber PLC Splitter |
||

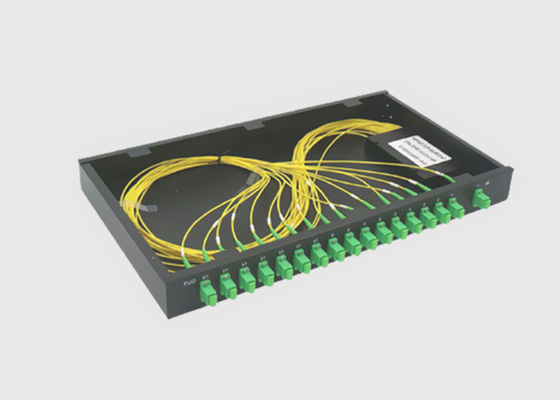

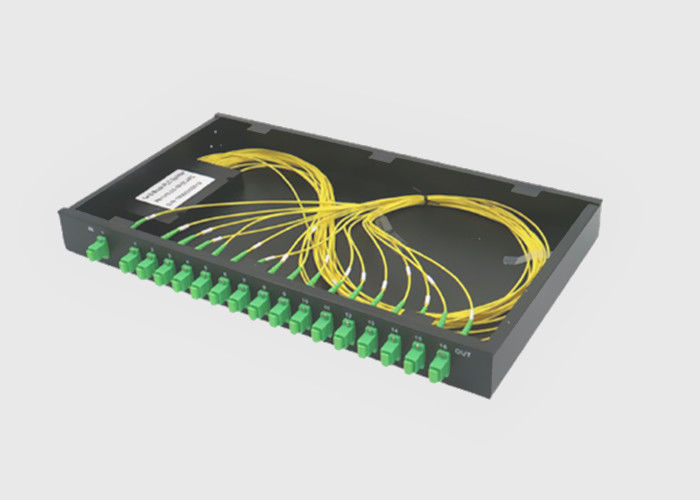

1×16 Rack Mount 1U SC/APC Fiber Optic PLC Splitter
2U Patch Panel Sell Points:
1) Made by cold roll steel, electrostatic powder spraying
2) Easy to open and close by using the button
3) Field-termination with high-accessibility sliding and tilting drawers
4) With PVC transparent door at front and back, easy to monitor
5) Can adjust depth when fixing the patch panel into the cabinet
6) Installation with tool-less removable drawers and lightweight housings
7) Port identification with clear visible labeling
Fiber Optic PLC Splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. Fiber Optic PLC Splitter features small size, high reliability, wide operating wavelength range, and good channel-to-channel uniformity, and Fiber Optic PLC Splitter is widely used in PON networks to realize optical signal power splitting. Geehe provides the whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.
Benefit& Features:
Wall Mount Application:
Specificaiton&Technology Parameters :
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 | ||
| Operating Wavelength(nm) | SDWC:1310&1550；STWC:1310,1490&1550 | ||||||||||
| Port Wavelength Range(nm) | 1310 ±40,1490 ±10 and 1550 ±40 | ||||||||||
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 | ||
| Uniformity (dB) | 0.6 | 1 | 1.6 | 2 | 1.8 | 0.8 | 1.2 | 1.8 | 2.2 | ||
| PDL@ 1310/1550 nm (dB) | ≤0.3 | ||||||||||
| Input Power (mW) | 250max | ||||||||||
| Operating Temperature (℃) | -40~+85℃ | ||||||||||
| Storage Temperature (℃) | -40~+85℃ | ||||||||||
| Fiber Type | Corning G657A1, 900μm, 2mm, 3mm Loose Tube | ||||||||||
| Dimensions(L×W×H) (mm) | 100×80×10,141×115×18, On request | ||||||||||
* The above specification exclusive connector
19 Inch Rack Specification:
| 19 Inch Rack | LGX | ||||||||||
| Configuration | 1U | 2U | 1U | 2U | |||||||
| Packing Dimensions(mm) | 482.6×278×44 | 482.6×278×88 | 129×125×29 | 129×125×58 | |||||||
| Installation Dimensions (mm) | 462.7×11.0(4-Φ6) | 462.7×27.5(6-Φ6) | 118(2-Φ6) | 118×29.2(2-Φ7) | |||||||
Ordering Information:
| WBC- | X- | X2- | 35- | XX- | X- | XX- | XX- | X | ||
| P: Premium A: Grade A X: Follow Customer's Requirements |
13:1x3 14:1X4 … 232:2 X32 |
35:1310/1550nm | 01: 01:99 02: 02:98 …… 50: 50:50 |
1:1 m x: Follow Customer's Requirements |
25:250μM Fiber 09:900μM Loose Fiber |
SC: SC/UPC SA: SC/APC 00:no connect |
D:D 1U: J1 2U: J2 |
|||
| Grade | Port Number | Operation Wavelength | Coupling Ratio | Fiber Length | Fiber Type | Connector Type | Dimension | |||
Wuhan Geehe Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
5) High-quality Wire Rod
Excellent PVC wire, good strength, and tenacity, long lifespan
6) Free Samples
Welcome to contact us to get Free Samples, Summer:+86 13429864799
