Product Details:
|
| Model Name: | Fiber Optic Patch Cable | Fiber Counts: | Duplex |
|---|---|---|---|
| Fiber Type: | Multimode | Sheath Material: | OFNR Riser |
| Connectors: | LC To LC | Cable Length: | 0.5m/1m/1.5m Or Customized |
| Endface Of The Connector: | PC/UPC/APC | Diameter Of The Cable: | 0.9/2.0/3.0/4.8/7.0 |
| Fiber Color: | Yellow/orange/Aqua/Red Customerized | Impact Cycle: | 1500 |
| Highlight: | Multimode 3.0mm Fiber Optic Patch Cord,OFNR Duplex Fiber Optic Patch Cord,100M fiber patch cord lc to lc |
||

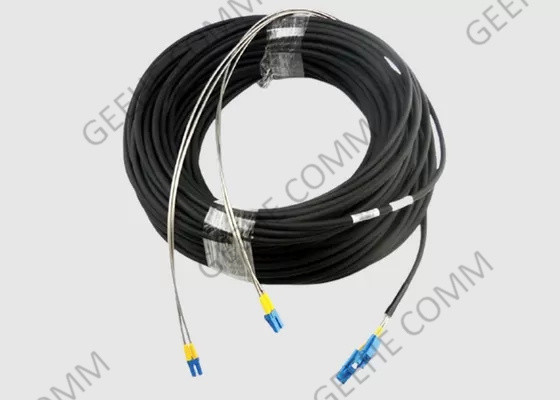

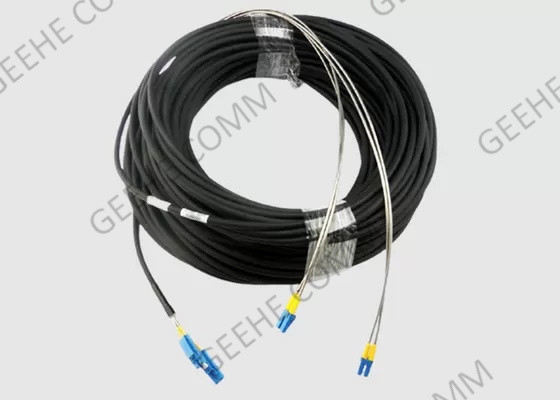

Multimode 3.0mm Corning OFNR Duplex Fiber Optic Patch Cable LC to LC 100M
1. Fiber Patch Cables Basic Introduction:
Fiber Optic Patch Cables are short distance fiber cables capped with connectors at both ends. Fiber Patch Cables are commonly used for easy installation when paired with patch panels, optical switches, and/or telco equipment. There are different types of fiber such as single-mode and multimode OM1, OM3, OM4, and OM5; all types of cable are available and outfitted with LC, SC, or ST connectors in PC, UPC, and APC polish types. The significance in choosing the correct type of connector and desired polish type is establishing a connection that will link your cables, further enhancing your fiber optic network for years to come.
Fiber optic patch cables are used for linking the equipment and components, we have fiber optic patch cable with different fiber connector types Singlemode and Multimode OM1, Multimode OM3, Multimode OM4, our low insertion loss, and low back reflection. Fiber patch cables are widely applied in Telecommunication Networks, Gigabit Ethernet, and Premise Installations.
2. Fiber Optic Jumper Benefit & Features:
3. Fiber Optic Jumper Applications:
4. Specification&Technology Parameters
| Construction | |
| Fiber Count | 2- Fiber Round |
| Cable Jacket Ratings | Plenum (OFNP) Low Smoke Zero Halogen (LSZH) |
| Fiber Types | Singlemode: OS2 9/125um Multimode: OM3 50/125um OM4/4+50/125um OM5+ 50/125um |
| Connector Types | Duplex LC Uniboot |
| Jacket Color | OS1/OS2: Yellow OM3: Aqua OM4: Aqua OM4+:Aqua OM5+:Lime Green |
| Physical Properties | |
| Cable outside diameter (OD) | 2.0mm |
| Bend radius (min) | 40mm |
| Connector durability | 500 cycles |
| Bend radius (min)(Long- term) | 20mm (40mm) |
| Optical Properties | |
| Connector insertion loss | MM: 0.15dB max (Optimized IL) 0.10dB max (Ultra-low IL) 0.25dB max (Optimized IL) |
| SM: 0.25 dB max ( Optimized IL) | |
| Connector return loss | 26dB min (MM) 55dB min (SM) 65dB min (SM/APC) |
| Environmental Properties | |
| Storage and shipping temperature | -40℃-+70 ℃ |
| Operating and installation temperature | -40℃-+70 ℃ |
5. Ordering Information
| Code | Fiber Type | Cable Type | Jacket Material | Color | Length (m) | ||||
| P | 3 | OM3 | AR2 | Round 2mm | L | LSZH | Y | Yellow | 1 |
| 4 | OM4 | AX2 | Round 2.4mm | R | OFNR | A | Aqua | 2 | |
| 7 | G.657A1 | P | OFNP | E | Erika Violet | 3 | |||
| 8 | G.657A1 | 5 | |||||||
| 10 | |||||||||
Legacy ordering information
| Connector End | Mode | Cable Configuration | Cable Colour | Cable Diameter | Cable Length (m) | ||||
| LC to LC | 9 | OS1/OS2 | D | Duplex | Y | Yellow | 2.4mm | 1 | |
| 7A1 | G.657A1 | DR | Duplex Riser | A | Aqua | 3.0mm | 2 | ||
| 7A2 | G.657A2 | DP | Duplex Plenum | P | Purple | 3 | |||
| OM3 | OM3 | 5 | |||||||
| OM4 | OM4 | 10 | |||||||
6. Options Available
-- LC Custom fiber optic jumper options include.
-- LC/PC (Physical Contact) Polish
-- LC/UPC (Ultra Physical Contact) polish
-- LC/APC (Angled Physical Contact) polish
Jacket: Riser (OFNR), Plenum (OFNP), Low Smoke Zero Halogens (LSZH), PVC
Diameter: 0.9mm (900µm), 1.6mm, 1.8mm, 2.0mm, 3.0mm
Jacket Colors: Aqua, Orange, Green, Red, Blue, Gray, Black, Yellow
LC Multimode 62.5/125µm MMF Fiber (Corning Fiber Optic Cable)
LC Multimode 50/125µm MMF OM2 Fiber (Corning Fiber Optic Cable)
LC Multimode 50/125µm MMF OM3 10Gb Laser Optimized Fiber (Corning Fiber)
LC Simplex cables or LC Duplex Cables are also available in optional colors.
LC Standard boot, LC 45° angled boot, LC 90°angled boot, or short boot options.
Corning Fiber Optic Cable, or Fiber One Fiber.
