Product Details:
|
| Model Name: | OM2 3.0mm Fiber Patch Cable, Orange | Fiber Connector: | SC To ST |
|---|---|---|---|
| Fiber Core: | Multi Mode | Color: | Orange,Customerized |
| Cable Diameter: | 0.9mm, 1.8mm,2.0mm, 3.0mm | Jacketing: | PVC |
| Connector Type: | Duplex | Length (Meters): | 10M |
| Highlight: | OM2 3.0mm Fiber Patch Cable,Duplex Multimode Fiber Patch Cable,3M ST/SC Fiber Optic Patch Cord |
||

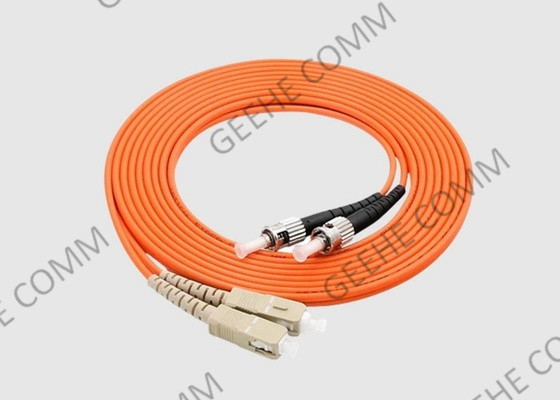

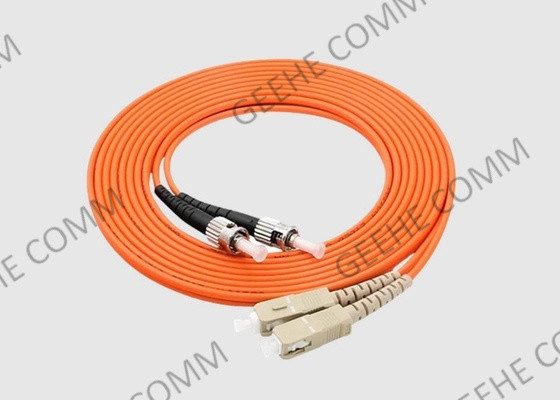

3M ST/SC Duplex Multimode 50/125 OM2 3.0mm Fiber Patch Cable, Orange
1. Basic Introduction:
50/125 OM2 Multimode fiber is crafted and created for fast Ethernet, Fiber Channel, Gigabit Ethernet Speeds, data center, OM2 legacy, Local Area Networks, SAN, backbone, riser, and horizontal applications.
OM2 fiber patch cords operate at a recommended spectrum of temperature: (-4°F to +158°F) and have a MIN Install Bend radius of 5.00 cm and a MIN long-term Bend radius of 3.00 cm.
OM2 50/125 Multimode fiber patch cords reduce the installation process and minimize the total cost of installation, due to pre-terminated fiber intrinsic plug-and-play feature.

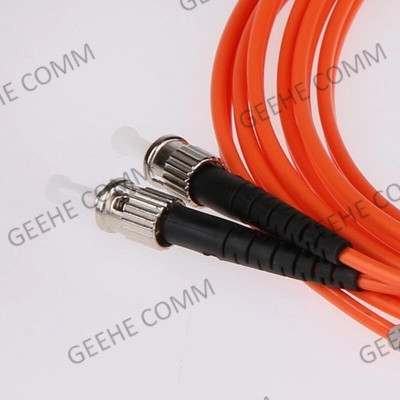

ST connector has a Twist-on / twist off bayonet mount with a ceramic ferrule.
2. ST to SC Patch Cord Benefit & Features:
• Designed to support gigabit ethernet, fibre channel, Infiniband, ATM, and internet protocol applications
• Plenum CMP rated for cable runs through walls and drop ceilings with plenum air space
• Patented injection molding process for greater durability
• Optically inspected and tested for insertion loss
• Pull-proof jacket design, immune to electrical interference
• Color-coded connectors for easy identification durability
3. Fiber Optic Patch Cord Applications:
Optical Fiber Communications, Video, LAN, CATV Systems
Optical Access Network
Fiber Optic Data Transmission
Data Centers
Local Area Network
Test Equipment
4.Specification&Technology Parameter
| Parameters | Value | ||||
| Connector Type | LC/UPC,LC/UPC | ||||
| Center Wavelength(nm) | 1310 or 1550 | ||||
| Max.Insertion Loss(dB) | 0.3 | ||||
| Min.Extinction Ratio(dB) | 23 | ||||
| Min.Return Loss(UPC) (dB) | 55 | ||||
| Min.Return Loss(APC) (dB) | 65 | ||||
| Key Orientation | Slow Axis | ||||
| Axis Alignment(deg) | ±3 | ||||
| Operating Temperature(℃) | -20~+70 | ||||
| Storage Temperature(℃) | -40~+85 | ||||
| FIber Type | Corning Fiber | ||||
* For Device with connector.IL is 0.3dB higher,RL is 5dB lower,ER is 2dB lower.
* The default connector key is aligned to the slow axis.
5.SC Connector Specification& Technology Parameter:
| Parameter | Unit | Index | |||
| End-Face Type | PC | UPC | APC | ||
| IL | dB | SM: ≤0.3, MM ≤0.1 | |||
| Repeatability | dB | ≤0.1 | |||
| interchangeability | dB | ≤0.2 | |||
| RL | SM | dB | ≥50 | ≥55 | ≥65 |
| MM | dB | ≥36(Without APC connector) | |||
| Mating Times | ＞1000 | ||||
| Operating Temperature | ℃ | -40~ +80 | |||
6. How to choose Fiber patch cords?
1) Fiber Cable Mode: Single Mode or Multimode
The mode of fiber patch cables indicates how light beams travel within the fiber. There are two fiber cable modes: single mode and multimode.
2) Number of Fiber Strands: Simplex or Duplex
According to the number of fiber strands, there are simplex and duplex fiber patch cord. As shown in Figure 2, simplex fiber patch cord contains one single strand of fiber with one simplex connector on each end. It can be linked with a pair of BiDi transceiver modules featuring with one port. Whereas duplex fiber patch cord consists of two strands of glass or plastic with one duplex connector (or considered as two simplex connectors). It is often linked with common transceivers or dual fiber BiDi transceivers.
3) Choose the Right Cable Jacket Type (PVC/LSZH/OFNP/Armored)
Usually, there are three cable jacket types: Polyvinyl Chloride (PVC), Low Smoke Zero Halogen (LSZH) and Optical Fiber Nonconductive Plenum (OFNP). You can see there features in figure below and choose the right one for your network.
4) Choose the Right Connector Polish Type (UPC/APC)
Since the loss of the APC connector is lower than UPC connectors, usually, the optical performance of APC connectors is better than UPC connectors. In the current market, the APC connectors are widely used in applications such as FTTx, passive optical network (PON) and wavelength-division multiplexing (WDM) that are more sensitive to return loss. But APC connector is usually expensive than UPC connector, so you should weigh the pros and cons. With those applications that call for high precision optical fiber signaling, APC should be the first consideration, but less sensitive digital systems will perform equally well using UPC. Usually, connector color of APC patch cable is green, and of UPC patch cable is blue.
