Product Details:
|
| Model Name: | 1×16 ABS Box PLC Splitter | Package Style: | ABS Module |
|---|---|---|---|
| Configuration Type: | 1×16 With FC Connector | Fiber Type: | G652D, G657A1, G657A2 Fiber |
| Connector Type: | FC/APC | Input/Output Fiber Diameter: | 2.0mm |
| Input/Output Fiber Length: | 1.5m | Split Ratio: | 50/50 Split (Even) |
| Port Wavelength: | 1260 - 1650nm | Optical Fiber Markings: | Input - White, Outpu T - Gray, White, Red, Black |
| Highlight: | 1×16 ABS Box PLC Splitter,G652D Fiber ABS Box PLC Splitter,ABS Box 1×16 PLC Splitter |
||

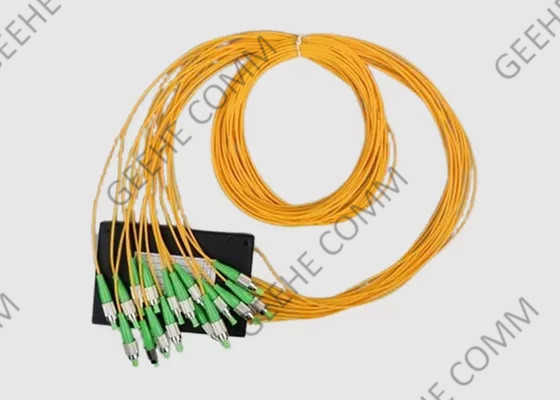

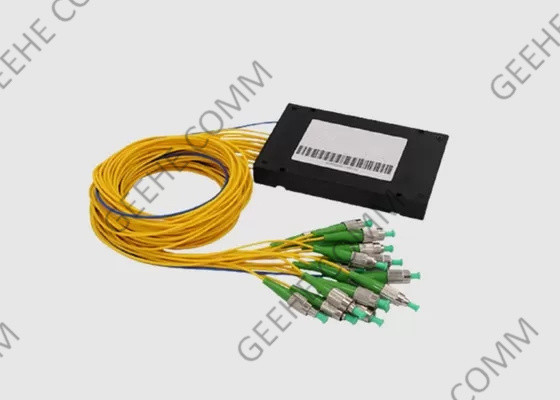

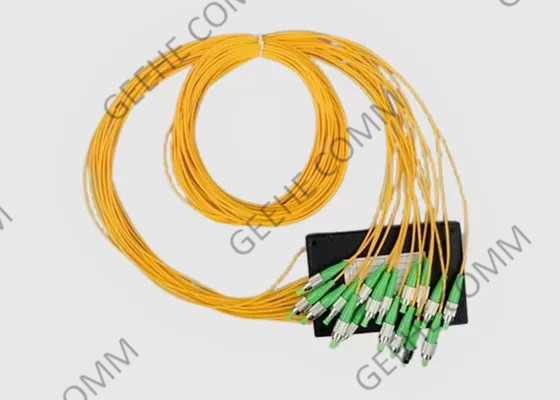

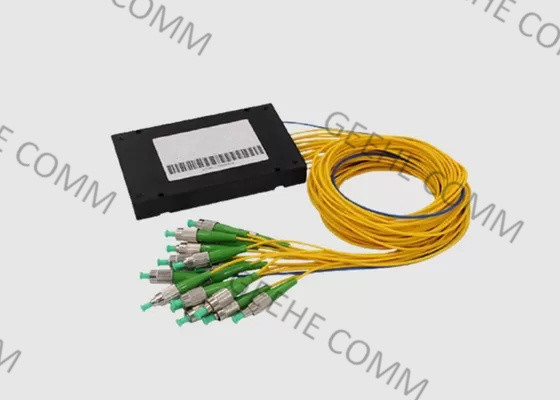

1×16 Standard ABS Box PLC Splitter Singlemode G652D Fiber 1 Meter
1×16 Quick Information:
* 1 × Input Fibers
* 16 × Output Fibers
* FC APC Connectorized
* Ruggedized 2mm Jacket
* Length: 1.5 Meter Legs
* ABS Box Type Module
* Plug and Play Ready
* Fiber brand: Corning
* Chips: Korea
* Optional Custom Connector Configurations and Combinations Available Upon Request
1 ×16 Pigtailed ABS splitters are most commonly used in the PON networks. They provide complete protection for inner optical components and cable and are designed for convenient and reliable installations.
With high volume usage, the PLC splitters are mainly used for various connection and distribution products (outdoor fiber distribution boxes) or network cabinets. Ideal for EPON, GPON, FTTH/FTTX networks.
With standalone structure, clear fiber input, and fiber out entrance, the ABS PLC splitter can be used directly for splitting using.
2.0mm G.657A1 for Fiber Input/Output Wide wavelength range, excellent channel-to-channel uniformity.
1×16 PLC Splitter Specification& parameters
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 | ||
| Operating Wavelength(nm) | 1260~1650 | ||||||||||
| Port Wavelength Range (nm) | 1310 ±20,1490 ±10 and 1550 ±20 | ||||||||||
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 | ||
| Uniformity (dB) | 0.5 | 0.8 | 1 | 1.2 | 1.8 | 1.2 | 1.5 | 1.8 | 2 | ||
| PDL @ 1310/1550 nm (dB) | ≤0.3 | ||||||||||
| Return Loss@ 1310/1551 nm (dB) | ≤55 | ||||||||||
| Input Power (mW) | 250max | ||||||||||
| Operating Temperature (℃) | -40~+85℃ | ||||||||||
| Storage Temperature (℃) | -40~+85℃ | ||||||||||
| Fiber Type |
Corning G657A1 |
||||||||||
ABS Box PLC Splitter Features& Benefits:
1. Low Insertion Loss
2. High Maximum Power tolerance
3. Excellent splitting uniformity
4. Broadband Operating wavelength
5. Compact Design
6. Low polarization-independent
7. Excellent Environmental Stability
8. Telcordia GR-1221 and GR-1209
9. Excellent Mechanical Stability
ABS Box PLC Splitter Application&Standard:
- Fiber to The Point (FTTX)
- Fiber to The Home (FTTH)
- Passive Optical Networks (PON)
- Gigabit Passive Optical Networks (GPON)
- Local Area Networks (LAN)
- Cable Television (CATV)
- Test Equipment
1×16 ABS Box Optic Splitter Package Dimensions:
| W×H×L (mm) | Port | ||||
| 100x80x10 | 1x4 | 1x8 | 2x4 | 2x8 | |
| 120x80x18 | 1x16 | 1x32 | 2x16 | 2x32 | |
| 140x114x18 | 1x32 | 2x32 | 1x64 | ||
Ordering Information:
| PLC- | AAA- | B- | CC- | D- | EE | FF- | GG |
| 104=1x4 108=1x8 …… 164=1x64 204=2x4 …… 232=2x32 | 2=2.0mm jacket 3=3.0mm jacket |
05=0.5m 10=1.0m 15=1.5m 20=2.5m | 2=2.0mm jacket 3=3.0mm jacket |
05=0.5m 10=1.0m 15=1.5m 20=2.5m | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | |
| Configuration | Input Fiber Type | Input Fiber Length | Output Fiber Length | Output Fiber Length | Input connector | Output Connector |
ABS Box PLC Splitter Package:
More Split Ratio of ABS Box Fiber Optic Splitter
Geehe Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Factory Audit
We cooperate with famous brands and Japanese customers, with 15 years of factory inspection experience and be familiar with the whole inspection process by SGS
