Product Details:
|
| Model Name: | Fiber Optical Cable Splitter | Package Style: | ABS Module |
|---|---|---|---|
| Configuration Type: | 1×8 | Fiber Type: | G652D, G657A1, G657A2 Fiber |
| Connector Type: | SC/APC | Input/Output Fiber Diameter: | 2.0mm |
| Input/Output Fiber Length: | 1.5m | Split Ratio: | 50/50 Split (Even) |
| Port Wavelength: | 1260 - 1650nm | Optical Fiber Markings: | Input - White, Output - Gray, White, Red, Black |
| Highlight: | SC APC Fiber Optic Cable Splitter,1 In 8 Fiber Optic Cable Splitter,1 In 8 sc apc splitter |
||

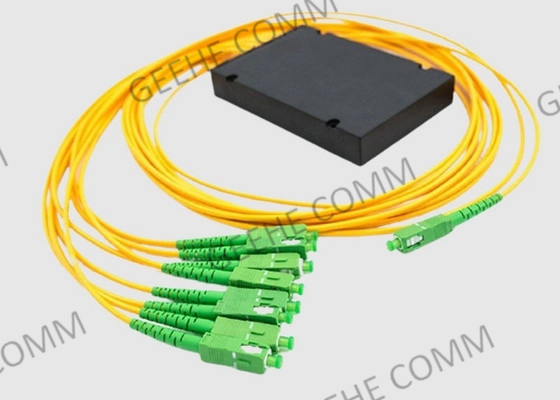

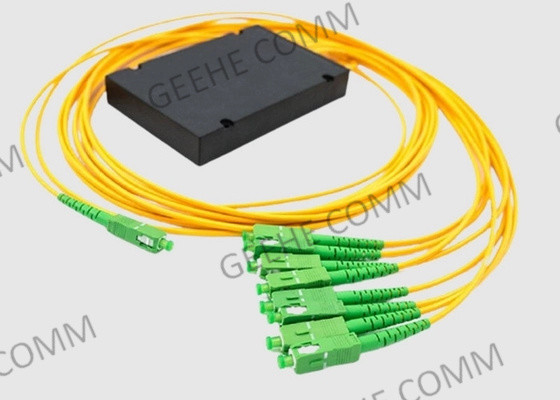

Datacentre ABS Box Corning Fiber SC APC Optical Cable Splitter 1 In 8 Out
Basic Information:
1×8 ABS Box Fiber PLC Splitter, Single-mode 900um Fiber with SC/APC Connectors. This Optical Cable Splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office to multiple premise locations.
Optical Cable Splitter has stronger fiber protection than bare fiber splitter, which is miniaturization result of cassette splitter. It's mainly used for various connection and distribution boxes, data centers, or network cabinets.
Connectorized Optic PLC Splitters are available with your choice of Fiber Optic Connectors: LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, and ST/UPC.
1×8 ABS Module PLC Features& Benefits:
1×8 Fiber Optic Splitter Application&Standard:
Specification& parameters
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 | ||
| Operating Wavelength(nm) | 1260~1650 | ||||||||||
| Port Wavelength Range (nm) | 1310 ±20,1490 ±10 and 1550 ±20 | ||||||||||
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 | ||
| Uniformity (dB) | 0.5 | 0.8 | 1 | 1.2 | 1.8 | 1.2 | 1.5 | 1.8 | 2 | ||
| PDL @ 1310/1550 nm (dB) | ≤0.3 | ||||||||||
| Return Loss@ 1310/1551 nm (dB) | ≤-55 | ||||||||||
| Input Power (mW) | 250max | ||||||||||
| Operating Temperature (℃) | -40~+85℃ | ||||||||||
| Storage Temperature (℃) | -40~+85℃ | ||||||||||
| Fiber Type |
Corning G657A1 |
||||||||||
1×18 Fiber Splitter ABS Package Dimensions:
| W×H×L (mm) | Port | ||||
| 100x80x10 | 1x4 | 1x8 | 2x4 | 2x8 | |
| 120x80x18 | 1x16 | 1x32 | 2x16 | 2x32 | |
| 140x114x18 | 1x32 | 2x32 | 1x64 | ||
Ordering Information:
| PLC- | AAA- | B- | CC- | D- | EE | FF- | GG |
| 104=1x4 108=1x8 …… 164=1x64 204=2x4 …… 232=2x32 | 2=2.0mm jacket 3=3.0mm jacket |
05=0.5m 10=1.0m 15=1.5m 20=2.5m | 2=2.0mm jacket 3=3.0mm jacket |
05=0.5m 10=1.0m 15=1.5m 20=2.5m | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | |
| Configuration | Input Fiber Type | Input Fiber Length | Output Fiber Length | Output Fiber Length | Input connector | Output Connector |
1×8 ABS PLC Splitter Package:
Geehe Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Factory Audit
We cooperate with famous brands and Japanese customers, with 15 years of factory inspection experience and be familiar with the whole inspection process by SGS
