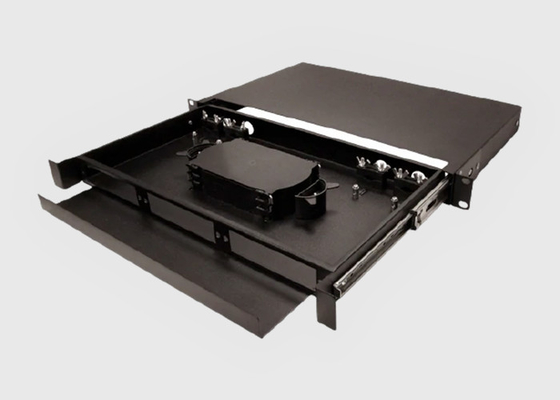

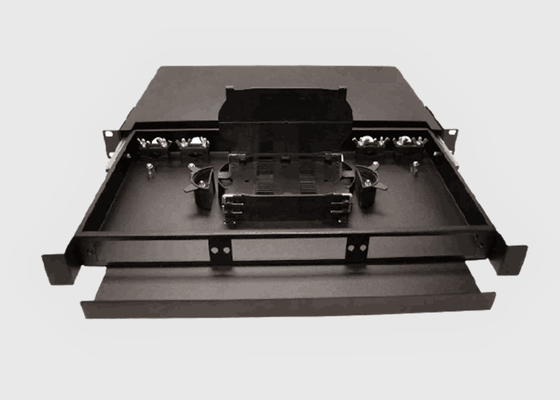

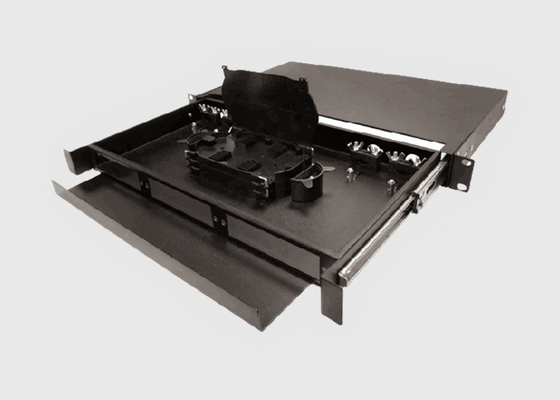

1 RU 12 Port Singlemode LC-UPC Rack Mount Patch And Splice Panel 900um Pigtails

1 RU 12 Port Singlemode LC-UPC Rack Mount Patch And Splice Panel 900um Pigtails
1 RU 12 Port Singlemode LC-UPC Rack Mount Patch And Splice Panel 900um Pigtails 1 RU 12 Port Singlemode LC-UPC Rack Mount Patch And Splice Panel 900um Pigtails 1 RU 12 Port Singlemode LC-UPC Rack Mount Patch And Splice Panel 900um Pigtails

Large Image :  1 RU 12 Port Singlemode LC-UPC Rack Mount Patch And Splice Panel 900um Pigtails

Product Details:
Place of Origin: Wuhan, China
Brand Name: Wuhan Geehe
Certification: ISO9001:2015,CE, ISO14001,RoHS,UL
Model Number: GH- FB-Panel-0032
Payment & Shipping Terms:
Minimum Order Quantity: 50 pcs
Price: Negotiation
Packaging Details: Individual inner paper box, paper outer cartons
Delivery Time: Within 7-9 working days after confirm order
Payment Terms: Can be Negotiated,T/T, L/C, D/A, Western Union,MoneyGram, Cash
Supply Ability: 200 pcs/ per day

1 RU 12 Port Singlemode LC-UPC Rack Mount Patch And Splice Panel 900um Pigtails

Description
Model Name: LC-UPC Rack Mount Patch Structure: Cold Rolled Steel
No.of Adapter/Port: 24 Adapter Type: SC Duplex (Blue)
Height: 1U, 2U, 3U, 4U, 8U Ports: 6, 12, 24, 48, 72,96, 144
Mounting Adjustment Range: 50mm Material Of Plate: 1.5mm SPCC (Black Coating)
Material Coating: Powder Coating 1U Dimensions (Hxwxd): 483 (H)×44 (H)×380mm(W)
Splice Capacity: 24 Fibers RoHS Compliancy Status: Compliant
Highlight:

LC-UPC Patch And Splice Panel

,

1 RU Patch And Splice Panel

,

Singlemode Fiber Optic Patch Panel

1 RU 12 Port Singlemode LC-UPC Rack Mount Patch and Splice 900um Pigtails





Basic Information:



1U rack mount fiber optic splice and termination enclosures from Geehe COMM provide an economical solution for small installations where direct termination or pigtail splicing is required.



Typical uses of these enclosures include situations where outside plant cables are terminated onto the back of the connector panel or where pigtails are spliced onto the incoming cable.







These enclosures are also used as point to point patch connections or as end termination for backbone spurs in the Telecom environment.

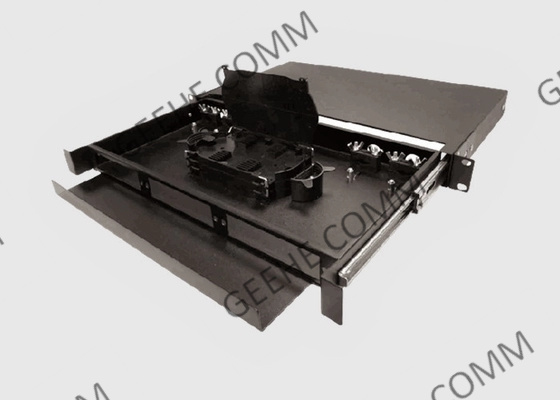

1 RU 12 Port Singlemode LC-UPC Rack Mount Patch And Splice Panel 900um Pigtails 0





Fiber Patch Panels 24 port Benefit&Feature:



1. Sturdy construction
2. Heavy-duty drawer-slide side rail
3. Reduced depth for space saving installation in closets
4. Optional front fiber management makes it a convertible design between reduced and normal depth
5. Removable magnetic top for easy access
6. Multiple entry points for future expansion
7. 6-36 SC adapters and 6-72 LC adapters
8. Delivered fully loaded

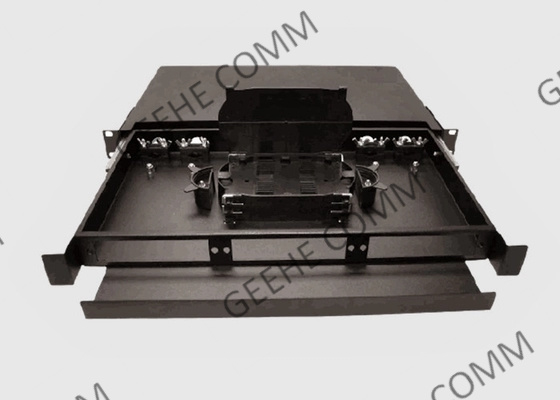

1 RU 12 Port Singlemode LC-UPC Rack Mount Patch And Splice Panel 900um Pigtails 1





Fiber Patch Panels 24 port Application:



1) Telecommunications networks
2) FTTH
3) LAN, WAN, CATV netoworks
4) Active device termination
5) CCTV






1 RU 12 Port Singlemode LC-UPC Rack Mount Patch And Splice Panel 900um Pigtails 2







Specificaiton&Technology Parameters :



Parameter 1x4 1x8 1x16 1x32 1x64 2x4 2x8 2x16 2x32
Operating Wavelength(nm) SDWC:1310&1550STWC:1310,1490&1550
Port Wavelength Range(nm) 1310 ±40,1490 ±10 and 1550 ±40
Insertion Loss @1310nm/1550nm 7.1 10.5 13.6 16.8 20.5 7.4 10.8 14.5 17.5
Uniformity (dB) 0.6 1 1.6 2 1.8 0.8 1.2 1.8 2.2
PDL@ 1310/1550 nm (dB) ≤0.3
Input Power (mW) 250max
Operating Temperature () -40~+85
Storage Temperature () -40~+85
Fiber Type Corning G657A1, 900μm, 2mm, 3mm Loose Tube
Dimensions(L×W×H) (mm) 100×80×10,141×115×18,On request

* The above specification exclusive connector





19 Inch Rack Specification:



  19 Inch Rack LGX
Configuration 1U 2U 1U 2U
Packing Dimensions(mm) 482.6×278×44 482.6×278×88 129×125×29 129×125×58
Installation Dimensions (mm) 462.7×11.0(4-Φ6) 462.7×27.5(6-Φ6) 118(2-Φ6) 118×29.2(2-Φ7)



1 RU 12 Port Singlemode LC-UPC Rack Mount Patch And Splice Panel 900um Pigtails 31 RU 12 Port Singlemode LC-UPC Rack Mount Patch And Splice Panel 900um Pigtails 41 RU 12 Port Singlemode LC-UPC Rack Mount Patch And Splice Panel 900um Pigtails 5



Ordering Information:



WBC- X- X2- 35- XX- X- XX- XX- X
  P: Premium
A: Grade A
X: Follow Customer's Requirements
13:1x3
14:1X4

232:2 X32
35:1310/1550nm 01: 01:99
02: 02:98
……
50: 50:50
1:1 m
x: Follow Customer's Requirements
25:250μM Fiber
09:900μM Loose Fiber
SC: SC/UPC SA: SC/APC
00:no connect
D:D
1U
J1
2U
J2
Grade Port Number Operation Wavelength Coupling Ratio Fiber Length Fiber Type Connector Type Dimension





Wuhan Geehe Service:



1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity


2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space


3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards


4) High-quality Wire Rod
Excellent PVC wire, good strength, and tenacity, long lifespan





1 RU 12 Port Singlemode LC-UPC Rack Mount Patch And Splice Panel 900um Pigtails 6
