Product Details:
|
| Model Name: | 4U HD Rack Mount Fiber Patch Panel | Structure: | Cold Rolled Steel |
|---|---|---|---|
| No.of Adapter/Port: | 24 | Adapter Type: | SC Duplex (Blue) |
| Height: | 1U, 2U, 3U, 4U, 8U | Ports: | 6, 12, 24, 48, 72,96, 144 |
| Mounting Adjustment Range: | 50mm | Material Of Plate: | 1.5mm SPCC (Black Coating) |
| Material Coating: | Powder Coating | 1U Dimensions (Hxwxd): | 483 (H)×44 (H)×380mm(W) |
| Splice Capacity: | 24 Fibers | RoHS Compliancy Status: | Compliant |
| Highlight: | 4U Rack Mount Fiber Patch Panel,Fiber Patch Panel With MTP Cassette,Optic Patch Panel With MPO Cassette |
||

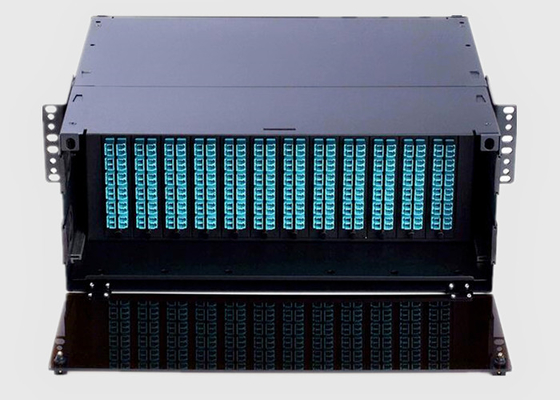

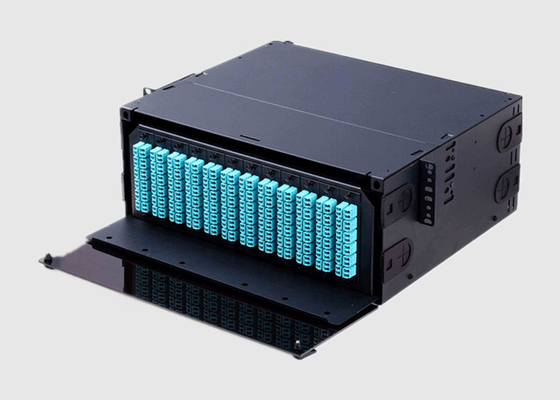

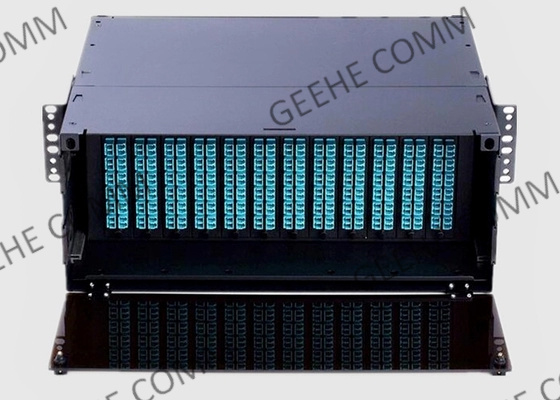

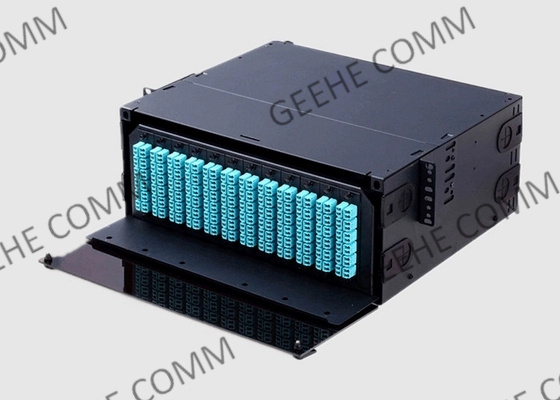

4U HD Rack Mount Fiber Patch Panel, with Adapter Panel or MPO/MTP Cassette
Basic Information:
HD 4U (Rack Unit) Patch Panel, additional options include a 1U, 2U, and 3U versions. This is a full LGX compatible patch panel that accommodates LGX adapter plates or LGX MTP / MPO Cassettes. These units have a pull-out tray and offer full access from the front and rear. These units also have a full Lexan smoked clear, front-hinged access panel, and a hinged access panel in the rear of the unit.
This 4U 19”288 Fiber High-Density Fiber Optic Patch Panel is designed for 10G/40G/100G Data Center, which can hold up to 12 x Adapter panels or 12 x LGX MPO/MTP cassettes, MPO-LC, or MTP-LC connector fanout cables are available.
Fiber Patch Panels 24 port Benefit&Feature:
1. LGX Compatible
2. Rack Mountable
3.19" Standard Size, Light Weight and Robust Structure
4. Changeable Modules Inside
5. Suitable for both Ribbon and Round Cable
6. Improved design to ensure fiber optic cable bend radius not less than 40mm
7. Powder Coated
8. Smoked Lexan Front Cover
9. Slide-out Tray for Easy Access
10. Front and Rear Hinged Doors
12. Includes mounting hardware and cable management accessories
Fiber Patch Panels 24 port Application:
1) Telecommunications networks
2) FTTH
3) LAN, WAN, CATV netoworks
4) Active device termination
5) CCTV
Specificaiton&Technology Parameters :
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 | ||
| Operating Wavelength(nm) | SDWC:1310&1550；STWC:1310,1490&1550 | ||||||||||
| Port Wavelength Range(nm) | 1310 ±40,1490 ±10 and 1550 ±40 | ||||||||||
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 | ||
| Uniformity (dB) | 0.6 | 1 | 1.6 | 2 | 1.8 | 0.8 | 1.2 | 1.8 | 2.2 | ||
| PDL@ 1310/1550 nm (dB) | ≤0.3 | ||||||||||
| Input Power (mW) | 250max | ||||||||||
| Operating Temperature (℃) | -40~+85℃ | ||||||||||
| Storage Temperature (℃) | -40~+85℃ | ||||||||||
| Fiber Type | Corning G657A1, 900μm, 2mm, 3mm Loose Tube | ||||||||||
| Dimensions(L×W×H) (mm) | 100×80×10,141×115×18,On request | ||||||||||
* The above specification exclusive connector
19 Inch Rack Specification:
| 19 Inch Rack | LGX | ||||||||||
| Configuration | 1U | 2U | 1U | 2U | |||||||
| Packing Dimensions(mm) | 482.6×278×44 | 482.6×278×88 | 129×125×29 | 129×125×58 | |||||||
| Installation Dimensions (mm) | 462.7×11.0(4-Φ6) | 462.7×27.5(6-Φ6) | 118(2-Φ6) | 118×29.2(2-Φ7) | |||||||
Ordering Information:
| WBC- | X- | X2- | 35- | XX- | X- | XX- | XX- | X | ||
| P: Premium A: Grade A X: Follow Customer's Requirements |
13:1x3 14:1X4 … 232:2 X32 |
35:1310/1550nm | 01: 01:99 02: 02:98 …… 50: 50:50 |
1:1 m x: Follow Customer's Requirements |
25:250μM Fiber 09:900μM Loose Fiber |
SC: SC/UPC SA: SC/APC 00:no connect |
D:D 1U: J1 2U: J2 |
|||
| Grade | Port Number | Operation Wavelength | Coupling Ratio | Fiber Length | Fiber Type | Connector Type | Dimension | |||
Wuhan Geehe Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) High-quality Wire Rod
Excellent PVC wire, good strength, and tenacity, long lifespan
